Steel for Industrial Doors
PPGI, PPGL and Prepainted Steel for Sectional, High-Speed, Dock, Fire-Rated and Cold Room Doors
Everesteel supplies PPGI, PPGL, and prepainted steel for sectional industrial doors, high-speed doors, insulated dock doors, fire-rated doors, and cold room door panels. You buy direct from our coating lines in Jiangyin, China — with custom colors, high-strength grades, sample matching, in-house processing, and export packaging built into the supply.
- PPGI steel for standard sectional and general industrial door skins
- PPGL steel for humid, coastal, and wash-down environments needing stronger corrosion resistance
- Prepainted steel for insulated dock and cold room door panel systems
- High-strength grades and PE, SMP, HDP, or PVDF coating options
- Coil, slit coil, and cut-to-length sheet supply for roll-forming and panel lines
Own Factory. Own Coating Lines. Direct Manufacturing Supply.
Everesteel is a vertically integrated prepainted steel manufacturer based in Jiangyin, Jiangsu — one of China’s major steel processing hubs. Every coil of industrial door steel that leaves our facility is produced, coated, processed, and packaged in-house, on our own lines, under our own quality system, with 26,000+ tons of annual production capacity supplying buyers in 65+ countries.
You buy direct from the manufacturer, not through a trading intermediary. That means tighter specification control, more consistent batch quality, shorter communication paths, and pricing aligned more closely with actual production conditions.
When you place an order with Everesteel, you deal directly with the team responsible for production and delivery.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate

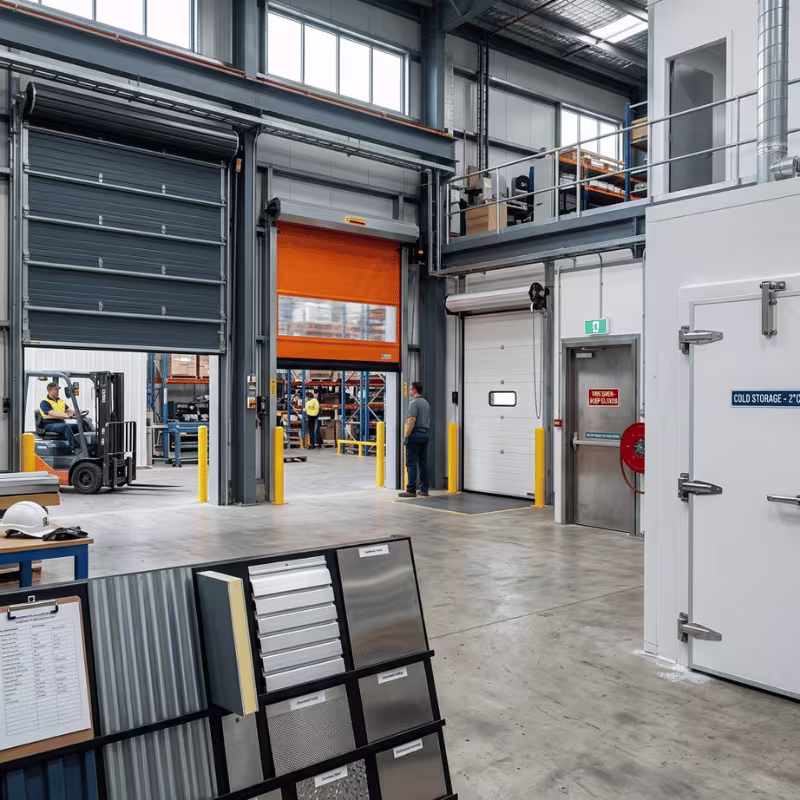

Why Material Selection Matters for Industrial Doors
Not every industrial door has the same job. A high-frequency rapid-roll door faces different wear and forming demands than a fire-rated door or a wash-down dock door in a food plant. Choosing one specification for every door usually means overpaying on simple openings or underspecifying on doors that cycle thousands of times or face harsh chemicals.
That is why experienced industrial door manufacturers match the steel to the door and the site before they order. Before you select, it helps to weigh five factors:
- Door type — overhead sectional, high-speed rapid-roll, insulated dock, fire-rated, or cold room door
- Operating environment — chemical exposure, humidity, wash-down, temperature swings, and high-frequency cycling
- Forming method — roll forming, panel bending, deep embossing, or flat-panel lamination
- Coating durability and corrosion resistance — scratch resistance, salt-spray performance, coating adhesion at bends
- Cost target — premium long-life structural coated steel vs. economical general-purpose door skin
Get these right and you match the steel to how each door is actually formed, cycled, and exposed — no coating cracks at the bend, no early corrosion, and no wasted spend on light-duty openings.
Recommended Steel Materials by Industrial Door Type
Use this table to match PPGI, PPGL, and prepainted steel to the appropriate industrial door before requesting a quote.
| Industrial Door Type | Recommended Material | Why It Is Used |
|---|---|---|

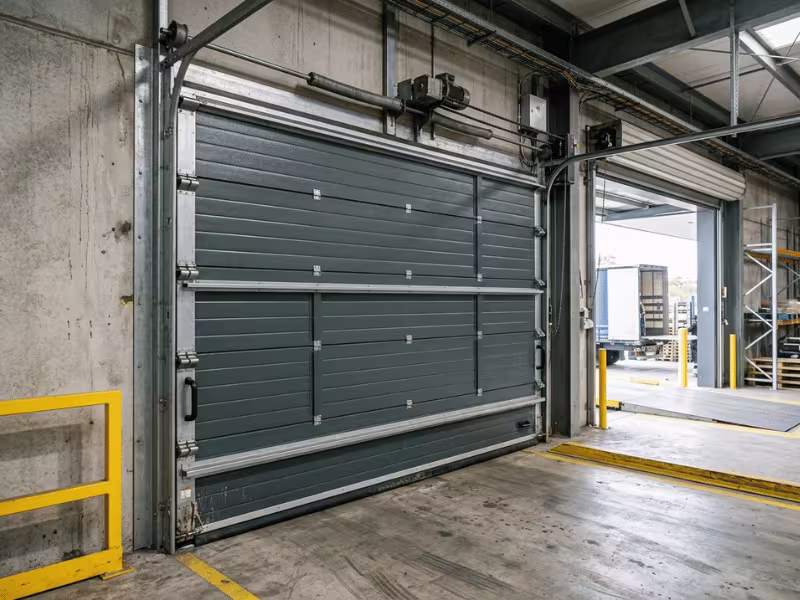

| Overhead Sectional Doors | PPGI / PPGL with PE or SMP | Wide panels needing color consistency, flatness, and reliable roll forming for large openings |

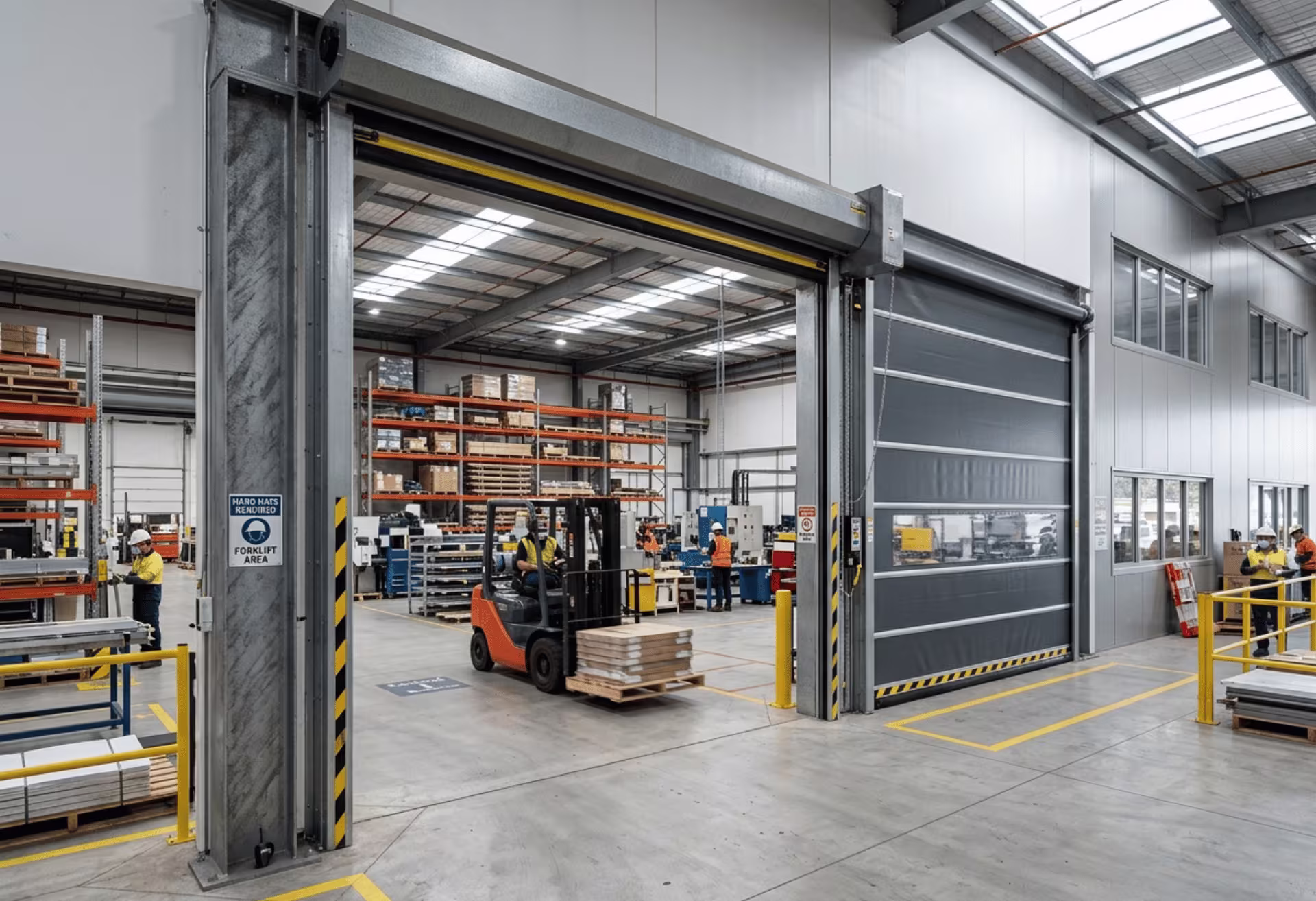

| High-Speed Rapid-Roll Doors | High-strength PPGI / PPGL with SMP or HDP | Frequent cycling needs strong coating adhesion, scratch resistance, and stable forming |
| Insulated Dock / Cold Room Doors | PPGI / PPGL with PU-bonding back coat | Outer and inner skins matched to foam for strong adhesion and stable insulated panels |
| Fire-Rated Industrial Doors | PPGI / structural-grade prepainted steel | Durable painted skins over fire-rated cores, with reliable forming and stable color |
| Chemical / Wash-Down Doors | PPGL (AZ150) with PVDF / anti-corrosion laminated steel | Strong resistance to chemicals, moisture, and repeated cleaning in harsh plants |
| General-Purpose Door Skins | PPGI with PE | Cost-effective coated panels where a standard painted appearance is enough |
Not sure which fits your project?
Send your door type and operating environment, and our team will recommend a structure before providing a quote.
PPGI vs PPGL for Industrial Doors
Choosing between PPGI and PPGL is one of the most common sourcing decisions for industrial door buyers. Both are prepainted coated steel products, so the difference comes down to the metallic coating under the paint.
| Factor | PPGI (Prepainted Galvanized) | PPGL (Prepainted Galvalume) |
|---|---|---|
| Metallic coating | Pure zinc (Z40–Z275) | 55% aluminum, 43.4% zinc, 1.6% silicon (AZ40–AZ150) |
| Corrosion resistance | Good, with sacrificial edge protection | 3–6x higher, better heat reflection |
| Best use | Standard inland doors, general industrial skins | Humid, coastal, hot, and wash-down door projects |
| Forming | Handles most panel bends and profiles well | Slightly less suited to very tight forming |
| Paint options | PE, SMP, HDP, PVDF | PE, SMP, HDP, PVDF |
| Cost level | More economical | Higher, longer service life |
Quick selection guide:
- Choose PPGI for standard inland sectional doors, general skins, and cost-sensitive projects.
- Choose PPGL when the door faces humidity, heat, coastal air, or frequent wash-down and needs a longer service life.
- Choose PPGL with PVDF for chemical plants and marine-adjacent sites where corrosion risk is highest.
- Choose high-strength structural grades when the door span, cycling frequency, or mechanical load is severe.
Surface Finish Options for Industrial Doors
Industrial doors can be specified in different surface styles depending on the door design and operating conditions. Each finish can be matched to your sample or reference before production begins.

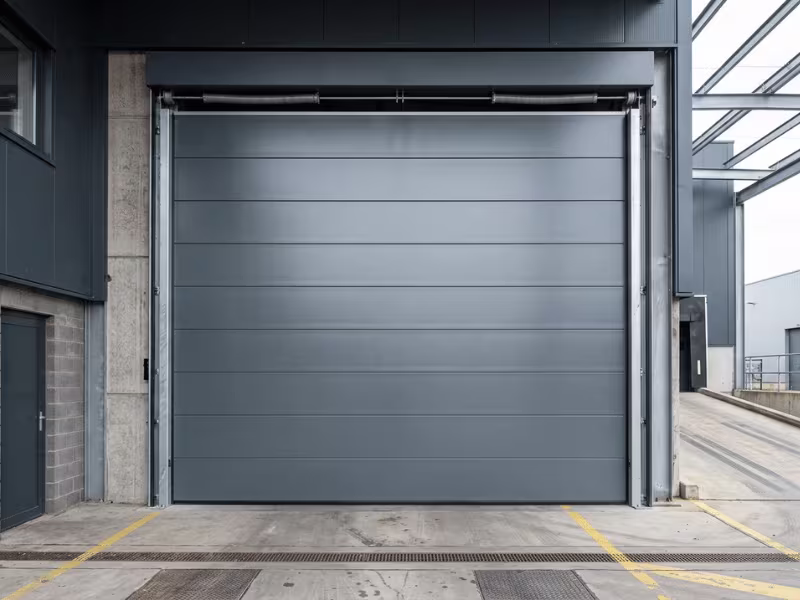

Smooth Finish
A clean, uniform painted surface for a modern residential and commercial look. Smooth finishes are the practical default for sectional doors where consistent color across wide panels matters most.

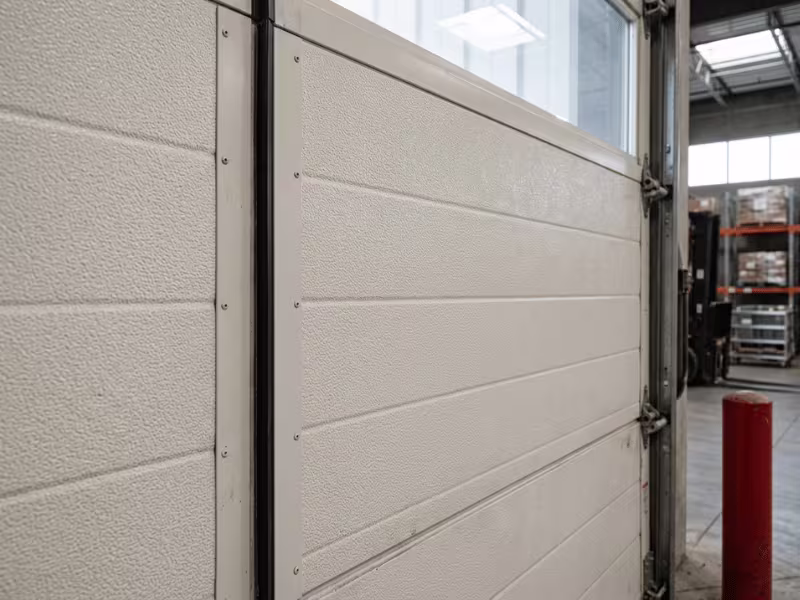

Stucco / Embossed Finish
A textured surface that helps hide minor forming marks and adds a decorative feel. Stucco embossing is popular for panels where a plain smooth face would show handling marks and light waviness more easily.

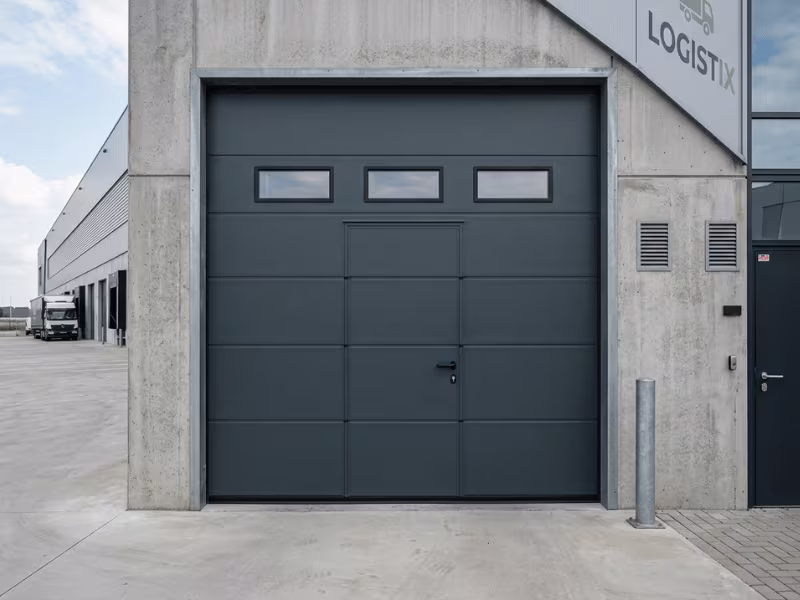

Matte Finish
A low-reflection surface suited to modern facility designs. Matte finishes reduce glare, soften surface marks, and give a cleaner appearance across large door faces in warehouses and loading bays.
High-Strength Structural Grade
A higher-yield steel base for doors that carry more load or cycle at high frequency. Structural grades add rigidity and dent resistance to large-span sectional and rapid-roll doors without adding excess weight.

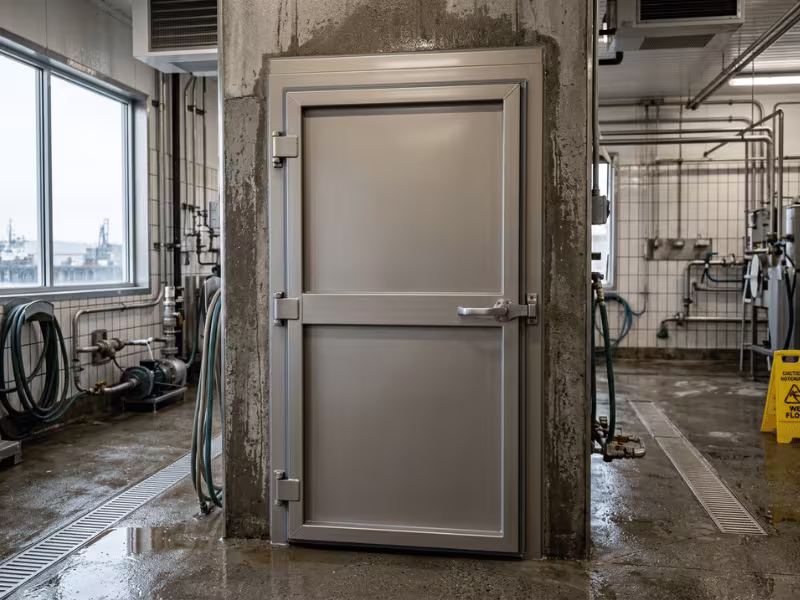

Anti-Corrosion / PVDF
A premium coating and substrate combination for chemical plants, food factories, and coastal sites. PVDF over AZ150 galvalume resists salt spray, cleaning chemicals, and UV, holding color and protection over a long service life.

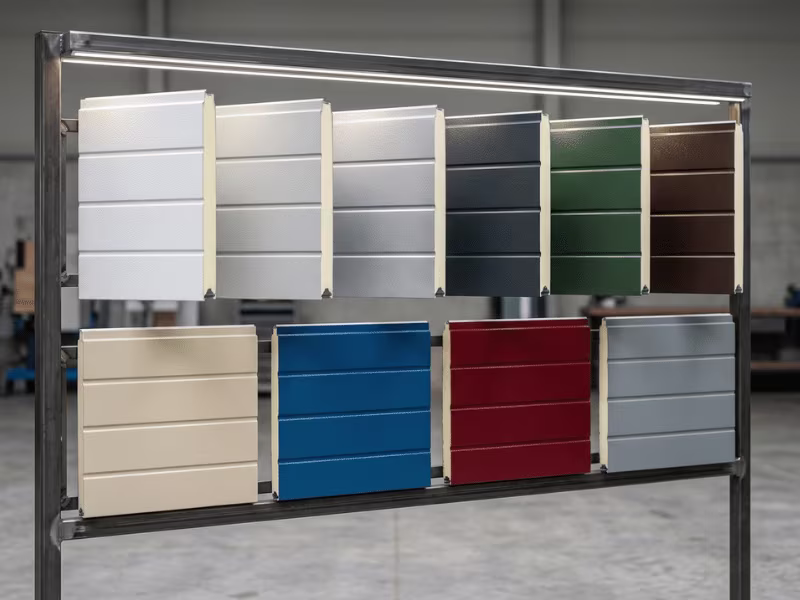

Custom Colors
White, silver, grey, blue, and custom-matched colors can be supplied according to your physical sample, RAL reference, or target door design. We provide a sample for approval before mass production to help maintain batch consistency across panels and slats.

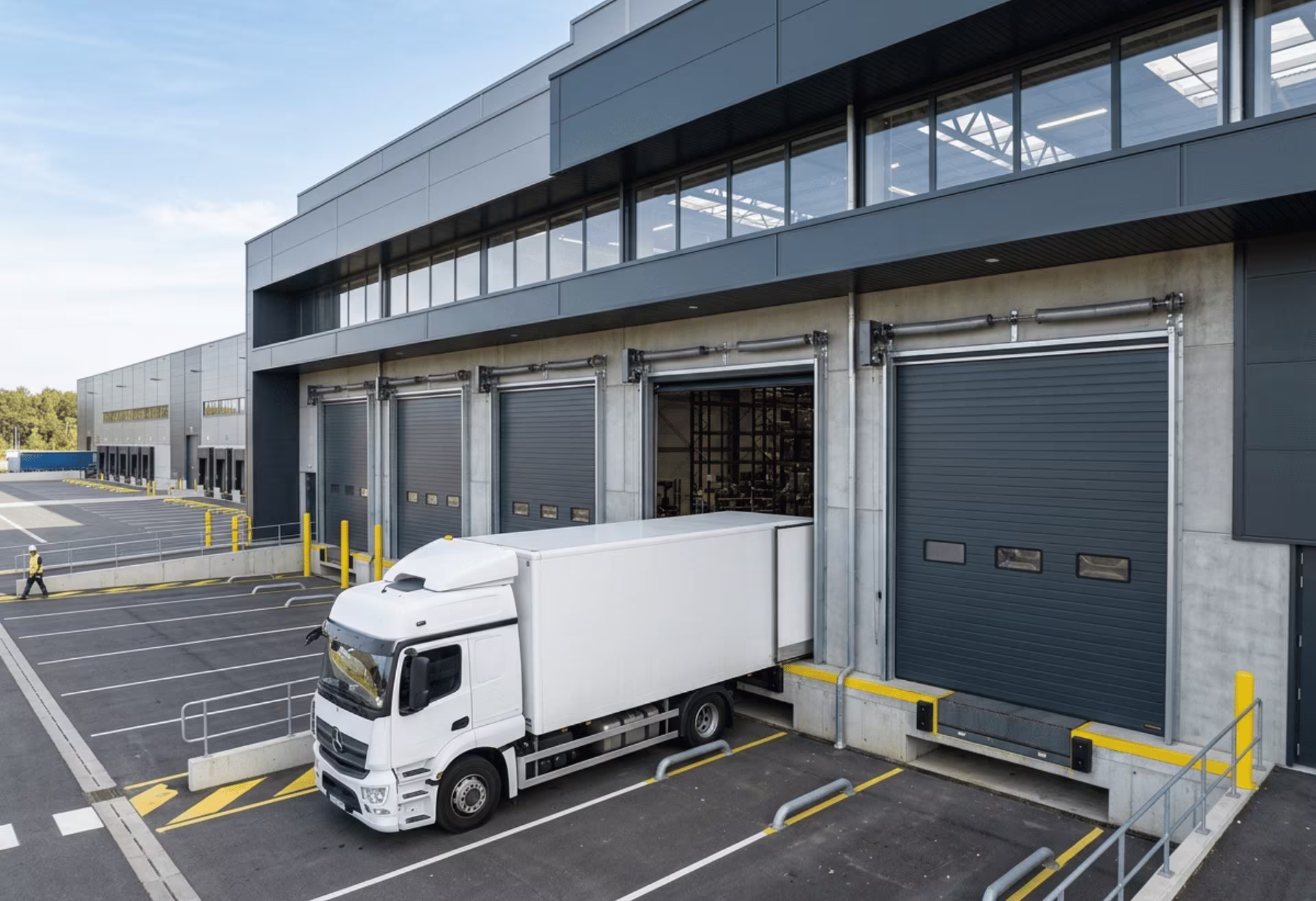

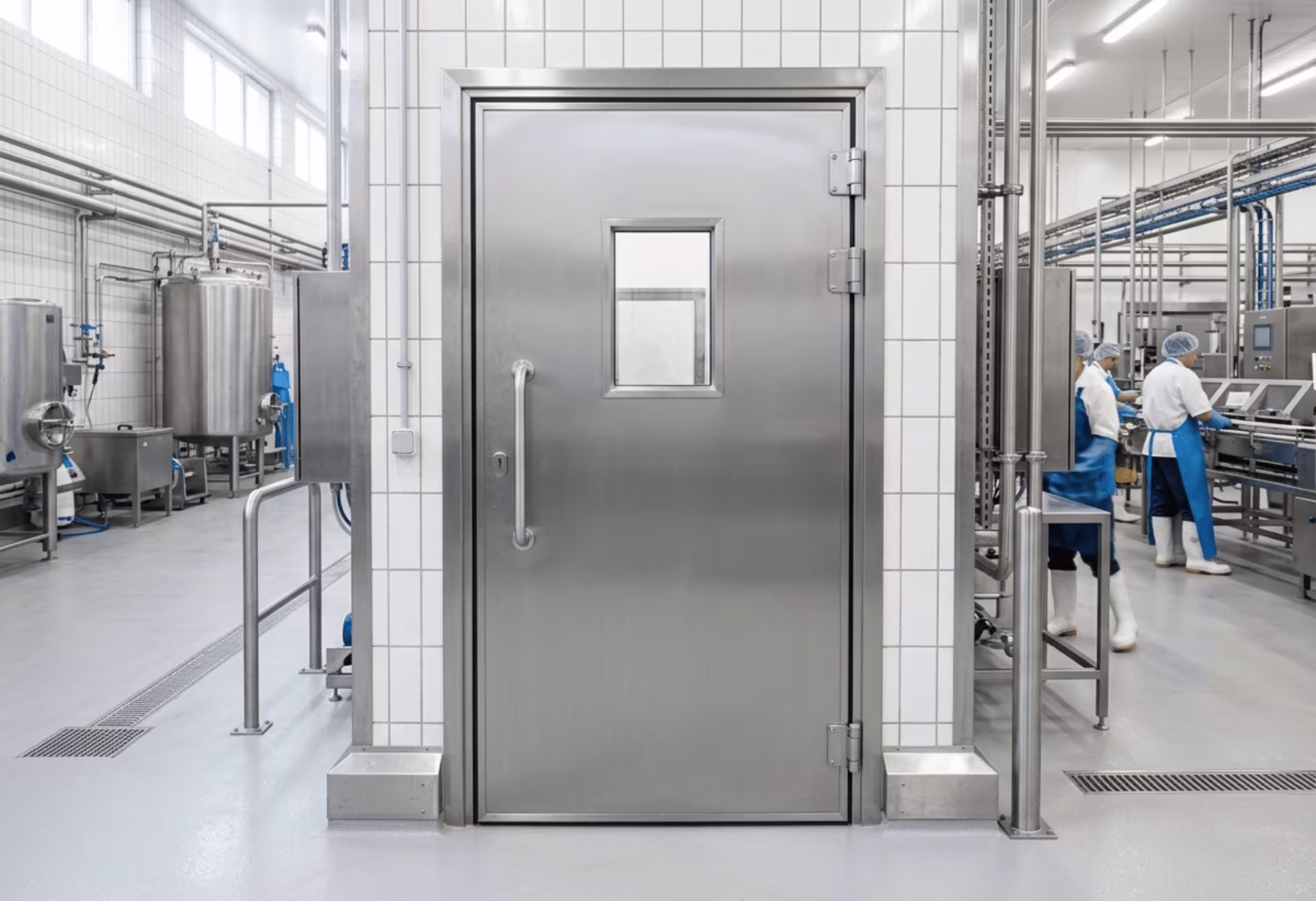

Typical Industrial Door Applications
Processing Capabilities for Industrial Door Production
All coating is carried out in-house at our Jiangyin facility, and forming is coordinated through dedicated processing resources, so your material can arrive in the format your door line actually needs — not just as a master coil.
Slitting
Master coils are precision-slit to the feed width your panel or slat roll-forming line requires, with clean edges, controlled burr, and tight tolerance for stable feeding and consistent geometry.
Cut-to-Length
Material can be supplied as cut-to-length sheet for direct panel fabrication, stamping, or lamination — stacked, protected, and palletized for export.
Embossing
Stucco and linear embossed finishes can be applied to add texture and hide minor forming marks on high-traffic industrial doors. Specify emboss type and depth at time of order.
Sample Matching
We match color and surface finish to your sample, target finish, or reference standard, and provide an approval sample before bulk production to lock appearance across panels.
OEM Support
We support industrial door manufacturers with custom colors, structural grades, bonding-compatible back coats, coil and sheet supply, protective film, export packaging, and repeat-order production.
Get Industrial Door Specifications for Your Project
Tell us your door type, operating environment, coating system, thickness, width, and supply format. Our technical team will confirm feasibility and prepare a recommended material specification for your review.
Typical Specifications for Industrial Door Steel
| Parameter | Typical Range |
|---|---|
| Base material | GI (galvanized), GL (galvalume / aluzinc), cold-rolled steel |
| Product types | PPGI, PPGL, prepainted structural-grade steel |
| Steel grade | DX51D / DX52D / S350GD / S550GD (structural grades available) |
| Thickness | 0.30 mm – 1.20 mm |
| Width | 600 mm – 1,250 mm (slit widths available) |
| Coating options | PE, SMP, HDP, PVDF |
| Metallic coating | Zinc Z40–Z275 / Al-Zn AZ40–AZ150 |
| Surface options | Smooth, stucco/embossed, matte, anti-corrosion |
| Reverse side | General or PU-bonding-compatible back coat |
| Supply form | Master coil, slit coil, cut-to-length sheet |
| Color | White, silver, grey, blue, RAL colors, or approved sample |
| MOQ | Depends on specification and finish |
| OEM support | Yes |
| Protective film | Available on request |
- Specifications are indicative and will be confirmed during the technical review at the time of order.
Quality Control and Certifications
Everesteel operates under a documented quality management system that covers incoming substrate inspection, coating line parameters, surface appearance control, and final product inspection prior to shipment.
Standard quality controls applied to industrial door steel include:
- Incoming substrate inspection for thickness, width, surface condition, and base metal conformity
- Steel grade and mechanical property verification for high-strength and structural-grade orders
- Zinc and Al-Zn coating weight verification against the specified Z or AZ class
- Paint film thickness (DFT) measured and recorded per batch for top coat and back coat
- Color and gloss checked against the approved RAL reference or physical sample, with batch-to-batch control
- Coating adhesion testing verified through cross-cut and T-bend checks matched to the panel bend radius
- Salt spray testing arranged to confirm corrosion resistance for chemical, wash-down, and coastal doors
- Roll-forming and cycling suitability evaluation for high-frequency rapid-roll and sectional door profiles
- Reverse-side coating identification and PU bonding-compatibility confirmation for insulated dock and cold room panels
- Dimensional, slit-width, and flatness verification prior to packaging and shipment
Supporting certifications and documents can include ISO 9001 certification, RoHS-related documentation, mill test certificates (MTC), and third-party inspection arrangements such as SGS, BV, or CCIC upon request.
FAQs
Q1. What steel is used for industrial doors?
Industrial doors commonly use PPGI, PPGL, and prepainted structural-grade steel. The right choice depends on whether the door is a standard overhead sectional, a high-frequency rapid-roll door, an insulated dock or cold room door, or a fire-rated door, and on the site environment.
Q2. What is the difference between PPGI and PPGL for industrial doors?
PPGI uses a pure-zinc galvanized base, while PPGL uses a galvalume (aluminum-zinc) base. PPGL offers 3–6 times the corrosion resistance and better heat reflection, so it suits humid, coastal, and wash-down doors, while PPGI fits standard inland and cost-sensitive projects.
Q3. Which coating is best for chemical or wash-down door environments?
For chemical plants and food factories, PVDF over AZ150 galvalume is the strongest choice, resisting cleaning agents, disinfectants, salt spray, and moisture. Anti-corrosion laminated steel is another option where a smooth, cleanable surface is required. Confirm your cleaning agents so we can match the system.
Q4. What steel do you supply for cold room and refrigerated dock doors?
Cold room and dock doors use an insulated panel with an outer and inner skin. We supply PPGI or PPGL skins with a PU-bonding-compatible back coat matched to your foam and adhesive, verified by a bonding trial, so panels resist condensation and stay stable through temperature swings.
Q5. Will the coating survive high-frequency door forming and cycling?
A correctly specified material will. We verify coating adhesion with cross-cut and T-bend testing matched to your bend radius, and recommend SMP or HDP coatings plus high-strength grades for rapid-roll doors. For tight profiles or heavy cycling, we suggest a forming trial before bulk production.
Q6. Can you match custom colors for industrial doors?
Yes. We match colors to your RAL reference or physical sample, apply batch-to-batch control during coating, and provide an approval sample before mass production, so panels across a large installed door stay visually consistent.
Q7. Can industrial door steel be supplied in coil and sheet form?
Yes. We supply material as master coil, slit coil, or cut-to-length sheet according to your roll-forming, stamping, or lamination line, with slit width, burr limit, coil ID, and coil weight prepared to match your line.
Q8. Do you provide OEM support for industrial door projects?
Yes. We support OEM production with custom colors, structural grades, bonding-compatible back coats, precision slitting, cut-to-length processing, embossing, sample matching, protective film, and export packaging for repeat-order production.
Related Products for Industrial Door Projects
Explore the individual materials behind our industrial door supply. Each links to full specifications and finish options.
PPGI Coil & Sheet
PPGL Coil & Sheet
Custom Color Coated Steel
Prepainted Aluminum Coil & Sheet
Anti-Corrosion Insulation Laminated Steel
Ready to Source Steel for Industrial Doors?
Send us your door type, operating environment, coating system, thickness, width, forming method, and estimated quantity. Our team will recommend the right material — PPGI, PPGL, or prepainted structural-grade steel — based on your durability, corrosion, forming, and cost requirements, and respond within one business day.
- Door type — overhead sectional, high-speed rapid-roll, insulated dock, fire-rated, or cold room door
- Operating environment — standard inland, humid, coastal, chemical / wash-down, or high-frequency cycling
- Panel construction — single-skin, foam-filled insulated, outer skin, or inner skin
- Coating system — PE, SMP, HDP, PVDF, or not sure yet
- Reverse-side / back coat — general or PU-bonding-compatible, with foam or adhesive details
- Steel grade — commercial forming or high-strength structural grade
- Color reference — RAL code, sample, or target door design
- Thickness and width — in millimeters (state base-metal or finished thickness)
- Forming method — roll forming, panel bending, embossing, or flat sheet
- Quantity — in metric tons or coils, and whether one-time or recurring
- Destination country — for freight and lead time estimation
