VCM Laminated Steel
Film-laminated steel for refrigerator doors, appliance exteriors, and visible decorative panels
VCM laminated steel from Everesteel combines metal substrates with bonded decorative films to create a refined, ready-to-fabricate surface for visible panel applications. Compared with standard painted finishes, it offers greater design flexibility, richer surface texture, and anti-fingerprint film options for appliance and interior panel production.
- Available with decorative PVC or PET film on GI, EGI, and cold-rolled steel substrates
- Designed for richer surface effects and functional film options beyond painted steel
- Suitable for refrigerator doors, washing machine shells, door skins, and display panels
- Film matching, slit coil, and cut-to-length supply available
- MOQ from 5 tons for sampling and production supply
Own Factory, Own Coating Lines, Full Specification Control
Everesteel designs and manufactures prepainted steel coils and sheets at our factory in Jiangyin, Jiangsu — one of China’s primary steel processing hubs. With 26,000+ tons of annual production capacity, we support procurement teams and panel manufacturers across 65+ countries, from initial sample approval through to full-volume orders.
We are not a trading company. Every coil that leaves our facility is produced on our own coating and processing lines, giving you direct control over specifications, lead times, and quality outcomes.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate
What is VCM Steel?
Vinyl coated metal (VCM) — also called VCM laminated steel or film-laminated steel — is produced by bonding a decorative PVC or PET film onto a metal substrate. Instead of a liquid paint coat, the color and texture come from a pre-made film, which gives the surface more visual depth, richer texture, and options a paint line can’t easily reproduce.
VCM is a layered material system, not a single coating. Understanding the layers helps you specify it correctly:
- Protective film (optional) — temporary top layer that protects the surface during slitting, forming, and assembly
- PVC / PET film — the decorative layer that defines color, gloss, and texture
- Adhesive/primer — the bonding system that holds the film to the metal
- Pretreatment — chemical surface prep that improves adhesion reliability
- Base metal — GI, EGI, or cold-rolled steel, chosen by corrosion and forming needs
- Back coat (optional) — primer or back paint applied to the reverse side
The real quality points are film adhesion, surface consistency, forming behavior, scratch resistance, heat stability, and batch-to-batch appearance. Like other prepainted materials, VCM arrives ready to use — no secondary finishing at your facility. It is most commonly specified for refrigerator and freezer panels, washing machine shells, door skins, and premium display surfaces.
VCM vs PPGI / PCM: Which Should You Choose?
All three are pre-finished steel products. The difference is the surface system on top of the substrate.
| Factor | VCM Laminated Steel | PCM Steel | PPGI |
|---|---|---|---|
| Surface system | PVC/PET film laminated to steel | Paint coating on metal | Paint coating over galvanized steel |
| Main strength | Rich decorative depth, texture, anti-fingerprint film | Stable solid color, uniform painted finish | Coated steel for general and outdoor use |
| Surface options | Wood grain, brushed, metallic, matte, high gloss | Solid colors, matte, gloss | Solid colors, patterns, textures |
| Best for | Visible appliance and door panels | Appliance shells needing consistent color | Roofing, cladding, general panels |
| Selection note | Confirm film type, adhesion, forming behavior | Confirm topcoat, gloss, adhesion | Confirm substrate, zinc coating, environment |
- Choose VCM when the finished panel is highly visible and needs decorative depth, texture, or anti-fingerprint performance. Choose PCM for a stable painted color, and PPGI when a general coated steel fits the job.
Why Buyers Source VCM from Everesteel
Film Adhesion Verified Before It Reaches Your Line
The strength of a VCM panel is only as good as the bond between film and substrate. We control pretreatment, primer application, and lamination temperature and pressure in-house, then verify the bond with adhesion and T-bend testing on every batch. That means the coils that reach your press or roll-former survive bending, cutting, and forming without the film lifting or delaminating — no rejected panels downstream.
One Film System, Matched to Your Forming Process
PVC and PET films behave differently under heat and forming, so the right choice depends on your process, not just the look you want. Because we run our own lines, we help you match film type, hardness, and heat stability to how the part is actually made — deep-drawn refrigerator doors, roll-formed door skins, or flat display panels — and confirm it on a sample before mass production.
A Consistent Surface That Removes Your Finishing Step
Every VCM coil leaves our line pre-finished with a stable, uniform film surface — no painting booths, drying ovens, or secondary finishing at your factory. We measure color, gloss, and pattern direction against approved reference standards on every batch, so repeat refrigerator and appliance orders stay visually matched, protecting your throughput and reducing rework.
Protective Film and Export Packing Built for Visible Surfaces
High-appearance panels are easy to scratch in transit and handling, so surface protection is part of the product, not an afterthought. We apply protective film matched to your storage time and process, and pack coils and sheets with edge and surface protection for export — so the finish you approved is the finish that arrives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | VCM laminated steel / vinyl coated metal / PVC or PET film laminated steel |
| Base metal | GI, EGI, or cold-rolled steel (other substrates on request) |
| Base steel thickness | 0.30 mm – 1.20 mm (other gauges by project) |
| Film type | PVC film, PET film, AFP film, printed film, matte film, metallic film |
| Film thickness | 0.05 mm – 0.20 mm (by film grade and surface effect) |
| Coil width | 600 mm – 1,380 mm (slit widths available) |
| Surface finish | Brushed, high gloss, matte, metallic, wood grain, solid color, anti-fingerprint |
| Back side | Primer, back coat, or treated back surface per requirement |
| Protective film | Optional, peel strength matched to storage and process |
| Coil inner diameter | 508 mm / 610 mm |
| Coil weight | 3 – 8 tons per coil |
| Supply form | Coil, slit coil, cut-to-length sheet, sample sheet |
| Standards | JIS, EN, GB, or agreed project standard by substrate |
| Typical applications | Refrigerator panels, washing machine shells, door skins, display cabinets |
- Specifications are indicative. Custom films, substrates, gauges, and widths are available on request. Minimum order quantity: 5 tons.
Surface and Pattern Options
VCM surface finish is defined by the film, so you get a wider range of decorative effects than a paint line can produce. The options below can be adjusted or combined to match your requirements.

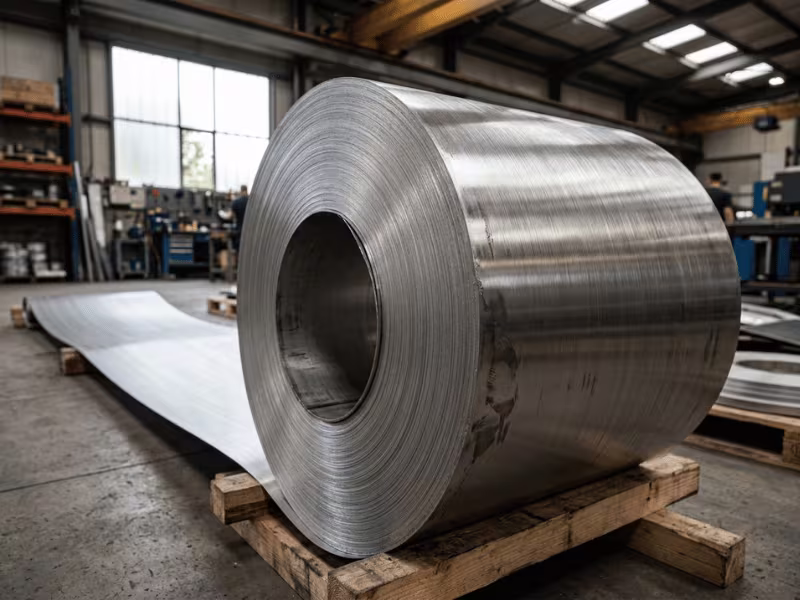

Brushed Finish
Directional hairline or short hairline film with metallic visual depth. Pattern direction must be confirmed before slitting or forming so the grain runs the right way on the finished panel.

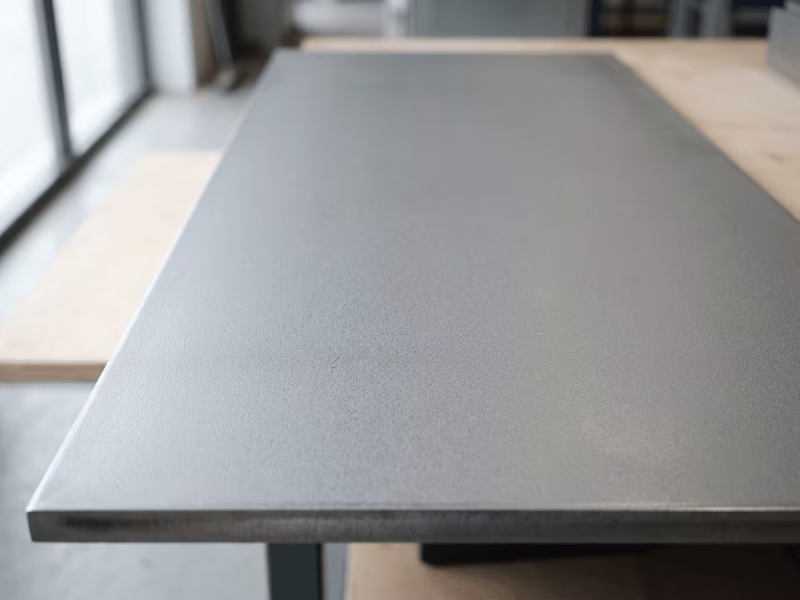

Matte / Texture Finish
Low-gloss or tactile surface that hides fingerprints and handling marks. Cleaning behavior and film grade should be confirmed by sample for high-touch panels.

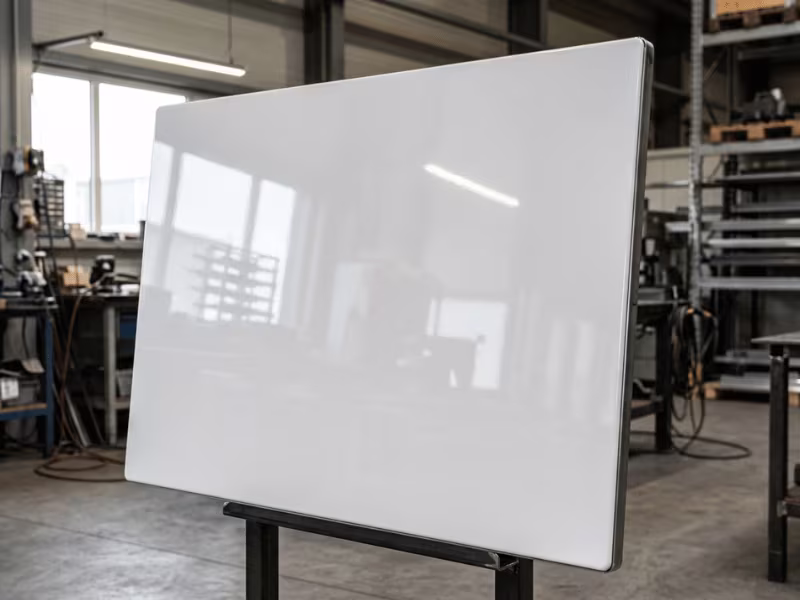

High Gloss
Bright, reflective surface for premium visible panels. It needs stronger handling control and protective film, since a glossy surface shows scratches more easily during processing.

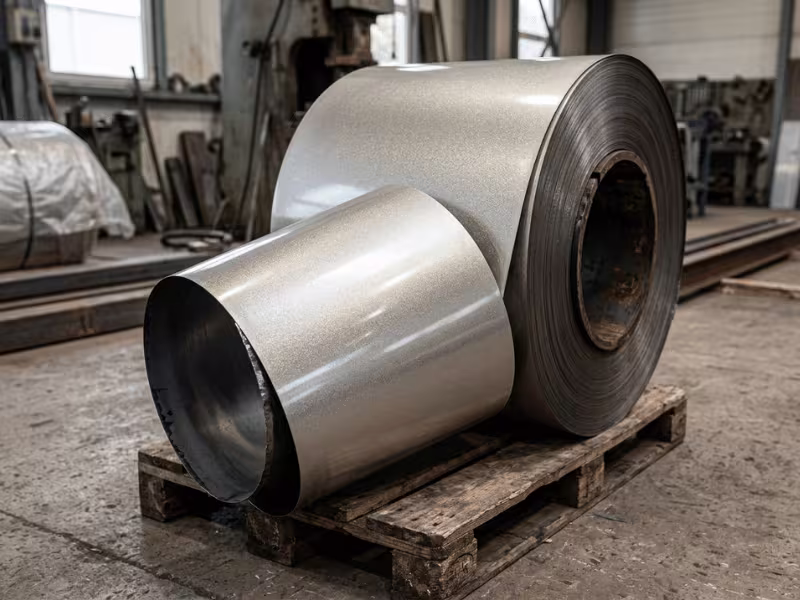

Metallic Finish
Metallic visual effect created by the film design, popular for appliance doors and display surfaces. Batch consistency and light reflection should be evaluated during sample approval.

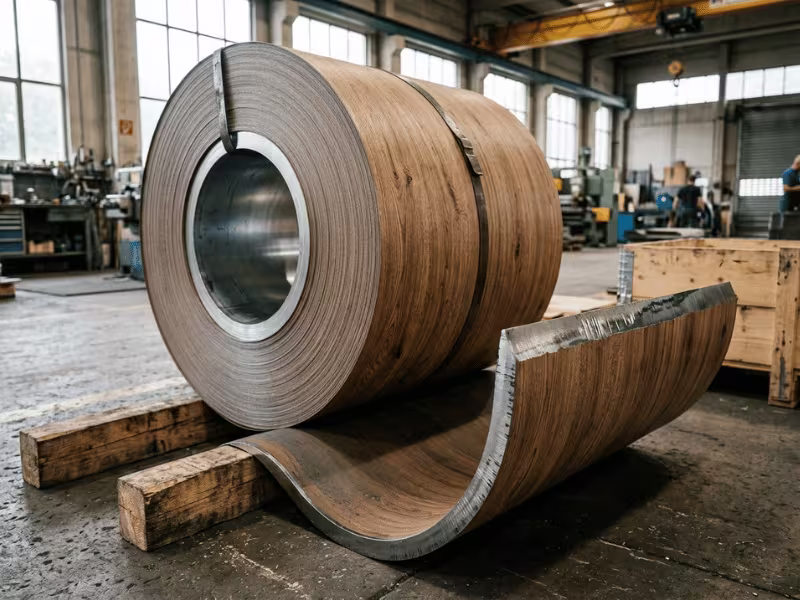

Wood Grain Film
Photorealistic timber patterns for door skins, decorative panels, and furniture surfaces. Pattern repeat, direction, and gloss level should be confirmed before production.
Anti-Fingerprint Film
Film option designed to reduce visible touch marks and ease cleaning — specified for refrigerator doors, appliance panels, and other frequently handled surfaces.
Processing Capabilities
Downstream processing is available in-house, so your VCM can arrive in the format your appliance line or door workshop actually needs — not just as a master coil.
Slitting
Coils are slit to custom widths from 20 mm and above, with tight tolerances and clean edges suited to panel forming and appliance part production. Pattern direction is preserved for directional films.
Cut-to-Length
Sheet blanks cut to your dimensions with flatness and squareness tolerances suitable for direct press, stamping, or panel-forming feeding, with protective paper where required.
Lamination
PVC or PET film laminated under controlled temperature, line speed, and pressure, followed by stable cooling to protect surface flatness and later forming behavior.
Protective Film
A peelable protective layer applied over the finished surface for slitting, cutting, packing, and assembly. Peel strength is matched to your storage time and process to avoid residue.
Custom Color and Film Matching
Submit a physical sample, film reference, or target finish, and our technical team matches film surface, gloss, pattern, and texture — with a production sample provided for approval before the full run begins.
Sourcing slit strip or custom-cut blanks for an appliance or door project?
Send your film type, substrate, thickness, width, and surface finish, and our team will confirm lead time and pricing within one business day.
Recommended Specifications by Application
| Application | Recommended Thickness | Base Metal | Film Type | Surface |
|---|---|---|---|---|
| Refrigerator door panels | 0.40 – 0.60 mm | GI / EGI | PET / AFP | Metallic / matte / anti-fingerprint |
| Freezer and cabinet panels | 0.40 – 0.70 mm | GI / EGI | PVC / PET | Solid color / matte |

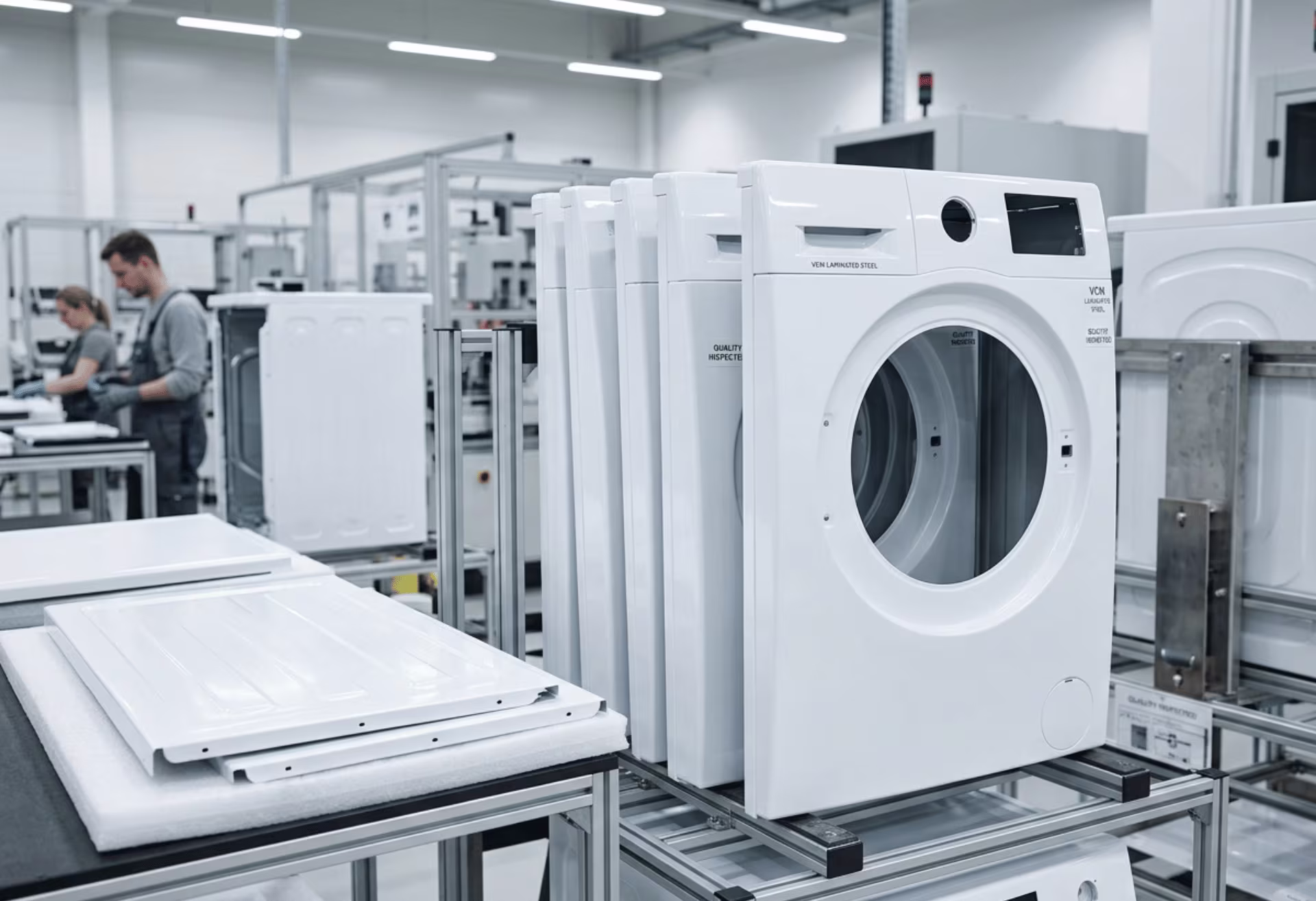

| Washing machine shells | 0.40 – 0.60 mm | GI / cold-rolled | PVC / PET | Metallic / high gloss |

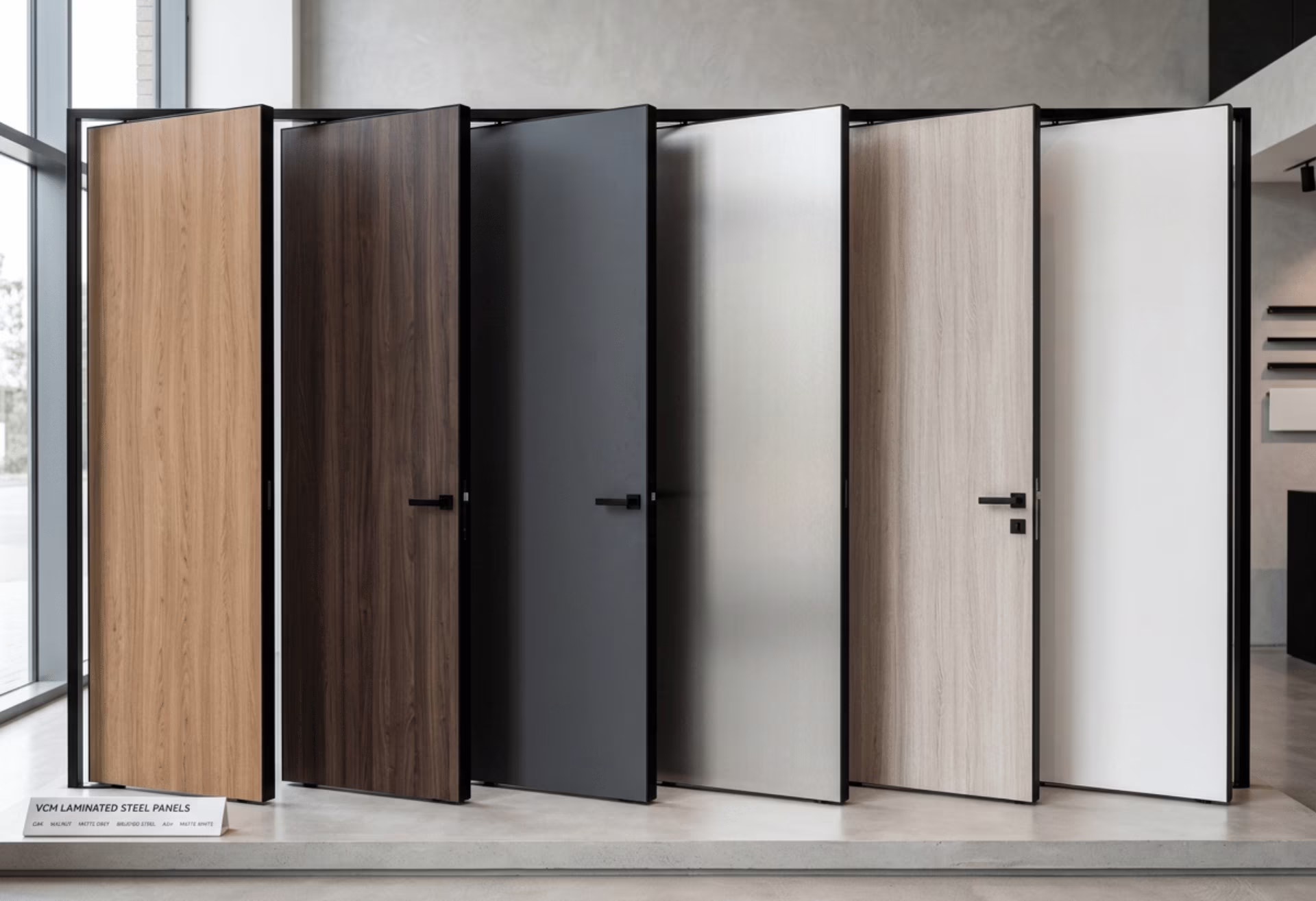

| Steel door skins | 0.30 – 0.50 mm | GI / cold-rolled | PVC / printed | Wood grain / solid |
| Wine coolers and display cabinets | 0.40 – 0.60 mm | GI / EGI | PET | Brushed / metallic |

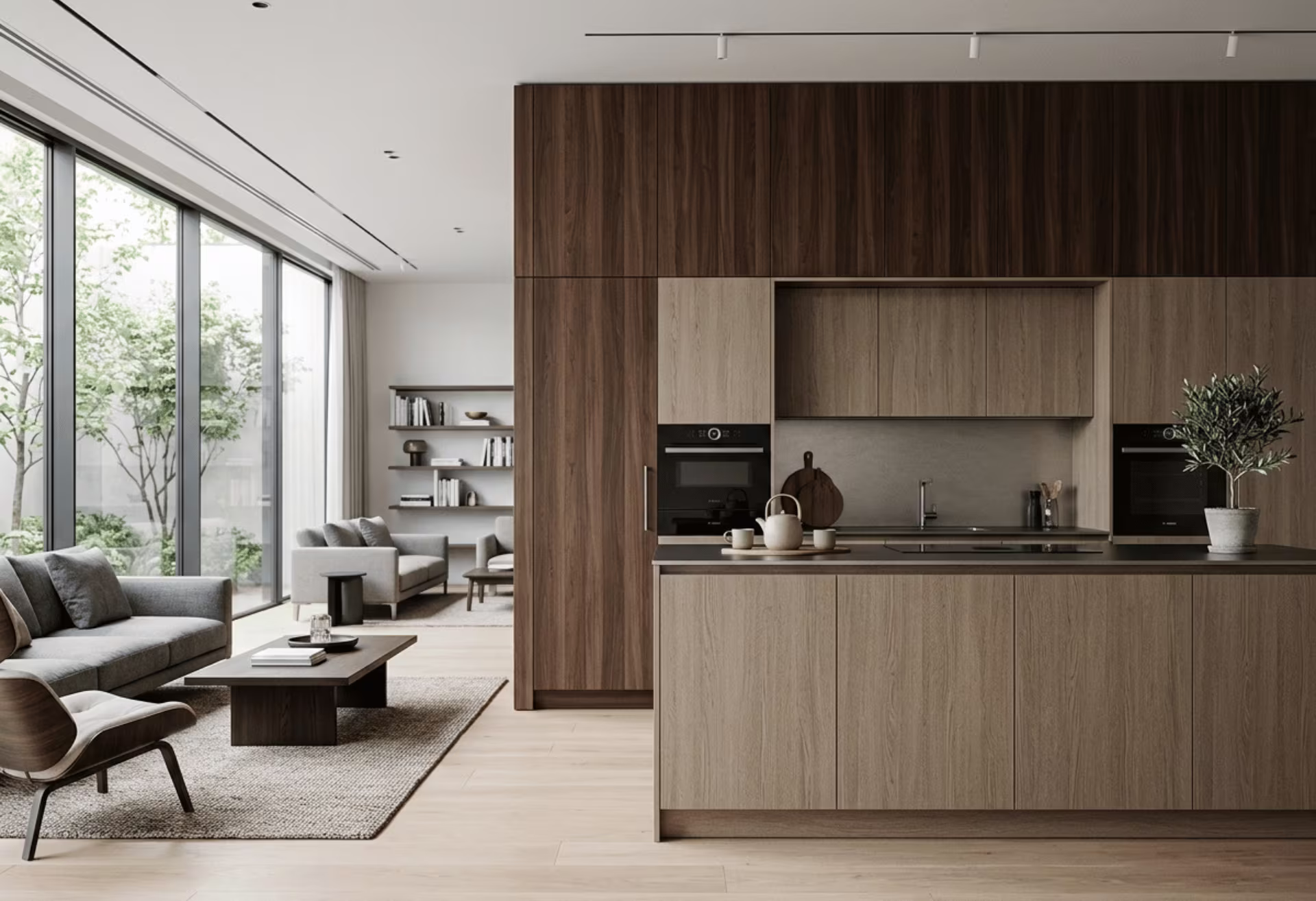

| Interior decorative panels | 0.30 – 0.50 mm | GI / cold-rolled | PVC / printed | Wood grain / matte |
- These are indicative starting points. Final specifications should be confirmed based on your forming process, surface requirements, and service environment.
Typical Applications
Quality Control and Certifications
Everesteel maintains a documented quality management system across every stage of production — from incoming substrate inspection through to final coil labeling and packaging.
In-process controls include:
- Incoming substrate inspection (thickness, surface quality, mechanical properties)
- Film thickness and lamination temperature monitoring at the line
- Adhesion testing (cross-cut and T-bend) to verify film bonding
- Color, gloss, and pattern-direction measurement against approved reference standards
- Scratch and heat-stability checks for selected film grades
- Protective film and packing condition check before shipment
Test reports and mill certificates are issued with each shipment. Third-party inspection — including SGS, BV, and CCIC — can be arranged before loading on request.
FAQs
Q1. Should I choose PVC film or PET film?
It depends on your process and surface needs. PVC film offers rich decorative depth, flexible surface design, and good cost efficiency, which suits wood grain, leather texture, and decorative panels. PET film provides higher surface hardness, better heat stability, and a cleaner feel, which suits high-gloss, metallic, and anti-fingerprint surfaces. For demanding forming or heat conditions, we recommend confirming film grade with a sample.
Q2. Is VCM laminated steel the same as painted steel?
No. VCM bonds a pre-made PVC or PET film to the substrate, while painted steel applies a liquid paint coating. The film gives more surface depth, texture options, and anti-fingerprint performance, but the two use different surface systems and different selection logic. Choose VCM when decorative depth and texture matter; choose painted products like PCM or PPGI for a stable painted color.
Q3.Will the film survive forming, bending, and stamping?
A correctly specified VCM will. Film adhesion and forming behavior depend on the film type, adhesive system, and how tight your forming radius is. We verify adhesion with cross-cut and T-bend testing on every batch, and for tight-radius or deep-drawn parts we recommend a sample trial to confirm forming limits before bulk production.
Q4. Can VCM steel be used for refrigerator panels?
Yes. VCM is one of the most common materials for refrigerator and freezer door panels, where surface appearance, cleaning performance, batch consistency, and protective film handling all matter. PET and anti-fingerprint films are especially popular for these high-touch, high-visibility surfaces.
Q5. What is your minimum order quantity for VCM?
Our standard minimum order quantity is 5 tons per specification. For custom films or non-standard dimensions, we recommend 5–10 tons to cover setup and film matching costs. Contact us to discuss your project volume.
Q6. What is the typical lead time for VCM orders?
Standard lead time is 15–25 days from order confirmation and deposit receipt. Custom films or new surface matching may add a few days for sample approval. Expedited scheduling may be available depending on production capacity at the time of order.
Q7. Can I approve a sample before committing to a bulk order?
Yes, and we recommend it for every VCM order, especially for visible film surfaces and formed parts. You receive a sample sheet or line trial material to confirm film surface, color, gloss, and forming behavior. Mass production starts only after you approve the sample in writing.
Q8. Can VCM be supplied as coils and cut-to-length sheets?
Yes. We supply VCM as master coil, slit coil, cut-to-length sheet, or sample sheet to your specified dimensions. Sheets are stacked, interleaved with protective paper where required, and packaged with edge and surface protection for export.
Related Products
PVC Laminated Steel
PET Laminated Steel

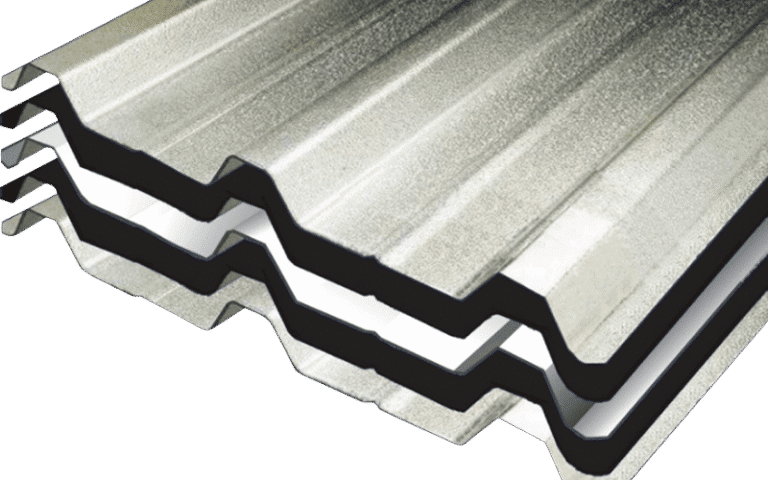

Anti-corrosion Insulation Laminated Steel
