PVC Laminated Steel
Decorative film-laminated steel for steel doors, appliance panels, and interior surfaces
PVC laminated steel from Everesteel combines metal substrates with bonded decorative PVC film to create a color-rich, ready-to-fabricate surface for visible panel applications. It is suited to buyers who need flexible decorative finishes and cost-efficient laminated steel for door skins, appliance panels, and interior components.
- Available with decorative PVC film on GI, EGI, and cold-rolled steel substrates
- Designed for rich color, surface variety, and cost-efficient decorative performance
- Suitable for steel door skins, appliance panels, and decorative interior surfaces
- Film matching, slit coil, and cut-to-length support available
- MOQ from 5 tons for sampling and production supply

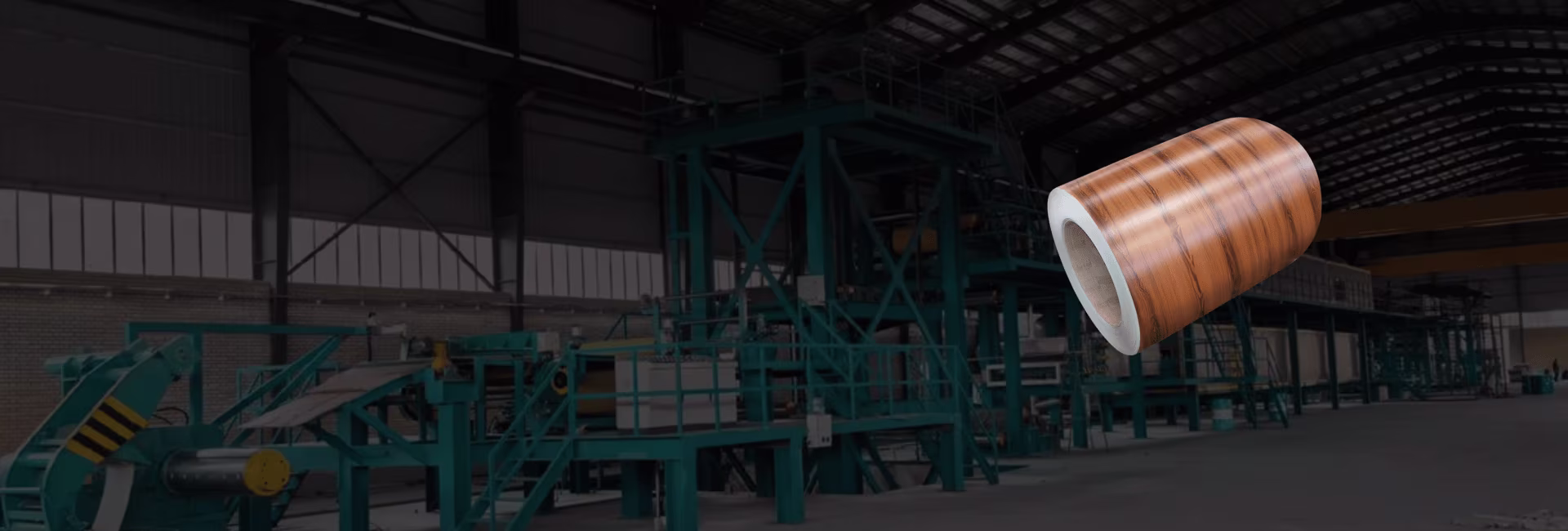

Own Factory, Own Coating Lines, Full Specification Control
Everesteel produces every PVC laminated coil on our own lamination and processing lines in Jiangyin, one of China’s primary steel-processing hubs. We are a manufacturer — not a trading company.
That distinction matters with film-laminated material, where bonding strength, surface cleanliness, and batch appearance all depend on tight line control — not on a middleman relaying your requirements to a mill.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate
What is PVC Laminated Steel?
PVC laminated steel — a type of vinyl coated metal — is produced by bonding a decorative PVC film onto a metal substrate. Instead of a liquid paint coat, the color and texture come from a pre-made PVC film, which gives the surface deeper visual richness, flexible design options, and warm textures a paint line can't easily reproduce.
PVC film is the value choice within the laminated steel family. Compared with PET film, PVC offers greater decorative depth, easier surface design, and better cost efficiency — which is why it's the go-to for wood grain, leather texture, and solid decorative surfaces. PET is harder and more heat-stable, but PVC covers the majority of decorative door and panel work at a lower price.
PVC laminated steel is a layered material system, not a single coating. Understanding the layers helps you specify it correctly:
- Protective film (optional) — temporary top layer that guards the surface during slitting, forming, and assembly
- PVC film — the decorative layer that defines color, gloss, and texture
- Adhesive / primer — the bonding system that holds the film to the metal
- Pretreatment — chemical surface prep that improves adhesion reliability
- Base metal — GI, EGI, or cold-rolled steel, chosen by corrosion and forming needs
- Back coat (optional) — primer or back paint applied to the reverse side
The real quality points are film adhesion, surface consistency, forming behavior, scratch resistance, and batch-to-batch appearance. Like other laminated materials, PVC laminated steel arrives ready to use — no secondary finishing at your facility. It is most commonly specified for steel door skins, appliance panels, furniture surfaces, and decorative interior panels.
PVC Laminated Steel vs PET Laminated / PCM: Which Should You Choose?
All three are pre-finished steel products. The difference is the surface system on top of the substrate.
| Factor | PVC Laminated Steel | PET Laminated Steel | PCM Steel |
|---|---|---|---|
| Surface system | PVC film laminated to steel | PET film laminated to steel | Baked polymer paint coating |
| Main strength | Rich decorative depth, flexible design, cost efficiency | Higher hardness, heat stability, clean feel | Stable solid color, uniform finish |
| Surface options | Wood grain, leather, matte, solid color | High gloss, metallic, brushed, anti-fingerprint | Solid colors, matte, gloss, wrinkle |
| Heat stability | Good — confirm grade for demanding processes | Higher | High |
| Cost level | Most economical of the films | Premium | Economical |
| Best for | Door skins, decorative panels, appliance surfaces | Premium visible and high-gloss panels | Appliance shells, HVAC, interior panels |
- Choose PVC-laminated steel when you want decorative depth and texture — especially wood-grain or leather looks — at the best value. Step up to PET film when you need higher hardness and heat stability, and choose PCM when a stable painted solid color is enough.
Why Buyers Source PVC Laminated Steel from Everesteel
Decorative Depth and Texture, Matched to Your Design
PVC film delivers wood grain, leather texture, matte, and solid decorative surfaces with a depth that liquid paint can't match — the reason it dominates steel door and decorative panel work. Because we run our own lamination lines, we match film pattern, gloss, and texture to your reference or artwork, and confirm pattern repeat and direction on a production sample before the full run — so the finished panel looks exactly as specified.
Film Adhesion Verified Before It Reaches Your Line
A PVC laminated panel is only as strong as the bond between film and substrate. We control pretreatment, primer application, and lamination temperature and pressure in-house, then verify the bond with cross-cut and T-bend adhesion testing on every batch. That means the coils reaching your press or roll-former survive bending, cutting, and forming without the film lifting or delaminating — no rejected panels downstream.
Cost-Efficient Film Matched to Your Forming Process
PVC film flexes well and forms cleanly, which makes it a strong fit for door skins and formed decorative parts — but heat stability and film grade matter for demanding processes. Because we control the line, we help you match film grade and thickness to how the part is actually made, keeping the cost advantage of PVC without risking surface defects during forming. We confirm behavior on a sample before mass production.
Protective Film and Export Packing Built for Visible Surfaces
Decorative panels scratch easily in transit and handling, so surface protection is part of the product, not an afterthought. We apply protective film with peel strength matched to your storage time and process, and pack coils and sheets with edge and surface protection for export — so the wood grain or leather finish you approved is the finish that arrives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | PVC laminated steel / vinyl coated metal / PVC film laminated steel |
| Base metal | GI, EGI, or cold-rolled steel (other substrates on request) |
| Base steel thickness | 0.30 mm – 1.20 mm (other gauges by project) |
| Film type | PVC film — decorative, printed, matte, wood grain, leather texture |
| Film thickness | 0.10 mm – 0.20 mm (by film grade and surface effect) |
| Coil width | 600 mm – 1,380 mm (slit widths available) |
| Surface finish | Wood grain, leather texture, matte, solid color, brushed, printed decorative |
| Back side | Primer, back coat, or treated back surface per requirement |
| Protective film | Optional, peel strength matched to storage and process |
| Coil inner diameter | 508 mm / 610 mm |
| Coil weight | 3 – 8 tons per coil |
| Supply form | Coil, slit coil, cut-to-length sheet, sample sheet |
| Standards | JIS, EN, GB, or agreed project standard by substrate |
| Typical applications | Steel door skins, appliance panels, furniture surfaces, decorative panels |
- Specifications are indicative. Custom films, substrates, gauges, and widths are available on request. Minimum order quantity: 5 tons.
Surface and Pattern Options
PVC-laminated steel derives its finish from the film, so decorative depth and texture are its core strengths. The options below can be adjusted or combined to match your requirements.

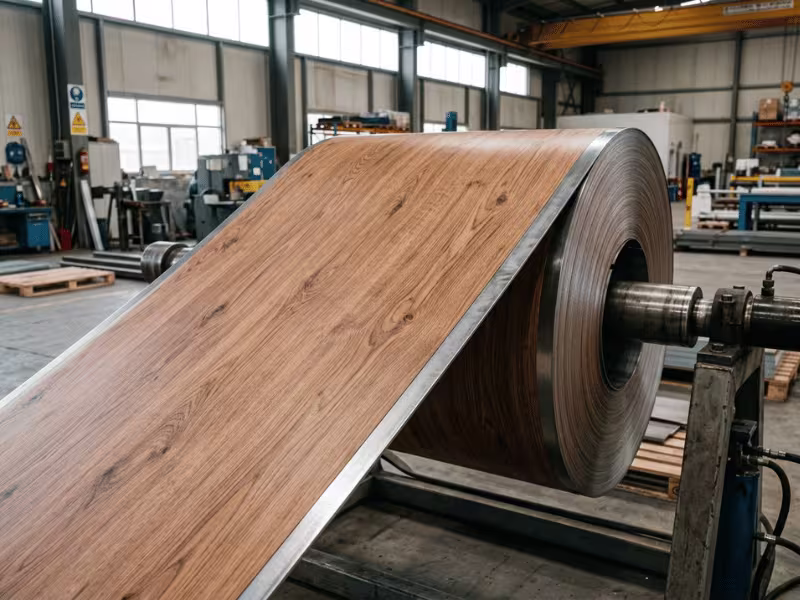

Wood Grain Film
Photorealistic timber patterns for steel door skins, furniture surfaces, and decorative panels — the most popular PVC finish. Pattern repeat, direction, and gloss level should be confirmed before production.

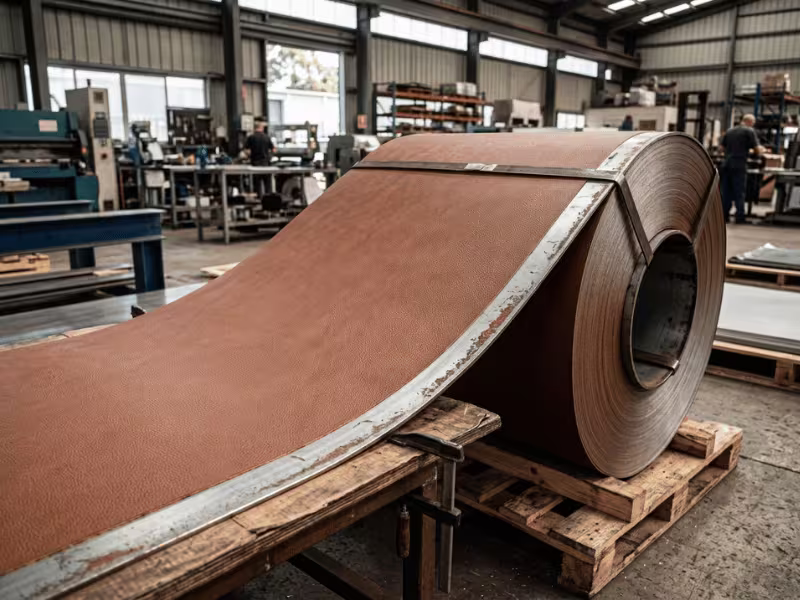

Leather Texture Film
Tactile leather-look surface with visual depth, used for premium door panels and decorative fit-out where a warm, textured feel is wanted. Film grade should be checked by sample for forming.

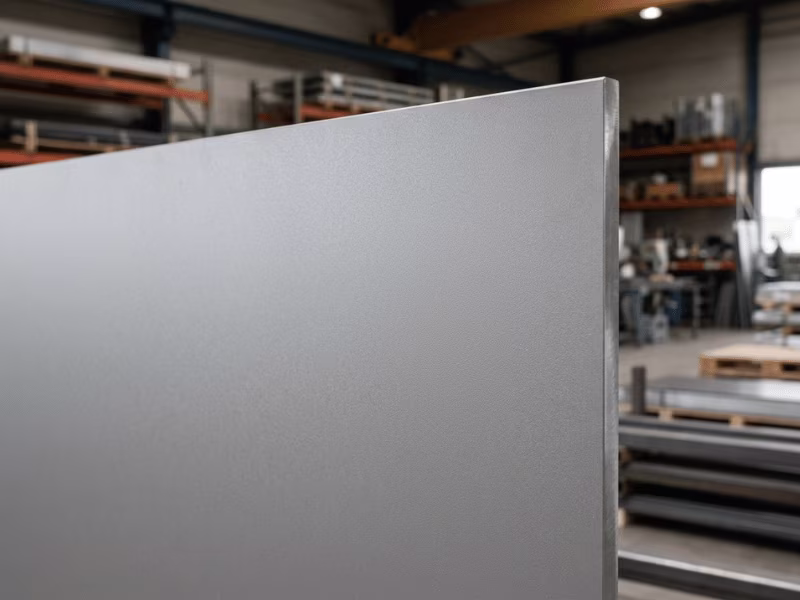

Matte / Texture Finish
Low-gloss or tactile surface that hides fingerprints and handling marks. Cleaning behavior and film grade should be confirmed by sample for high-touch panels.

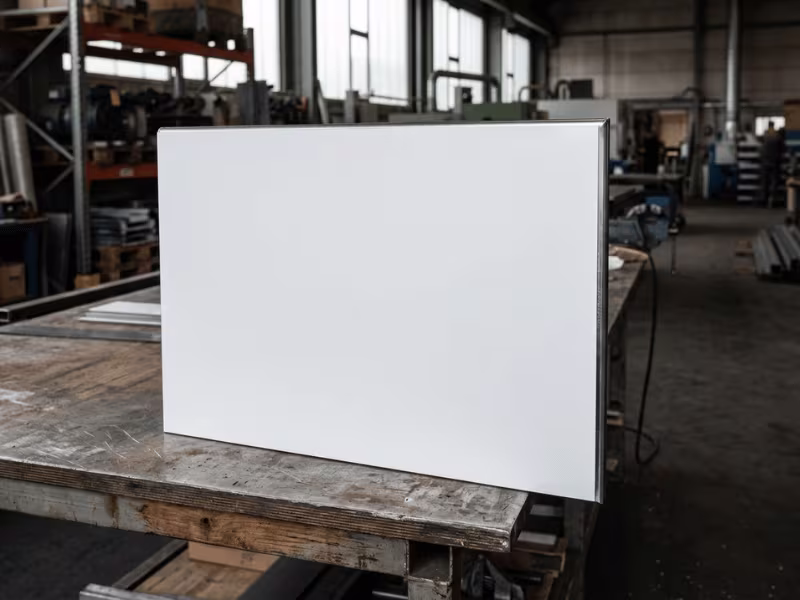

Solid Color Film
Uniform single-tone decorative films in a wide color range, for appliance panels and interior surfaces that need clean, consistent coverage with film depth.

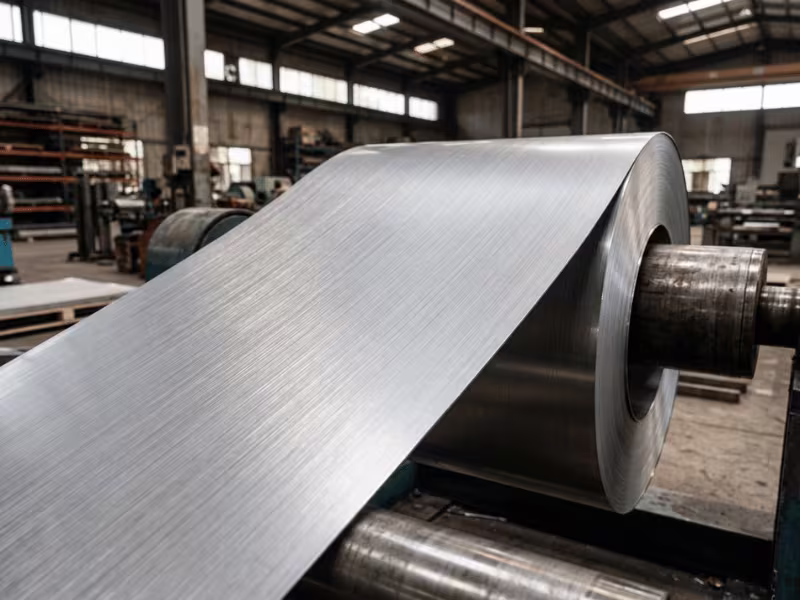

Brushed Finish
Directional hairline film with a metallic visual effect. Pattern direction must be confirmed before slitting or forming so the grain runs the right way on the finished panel.

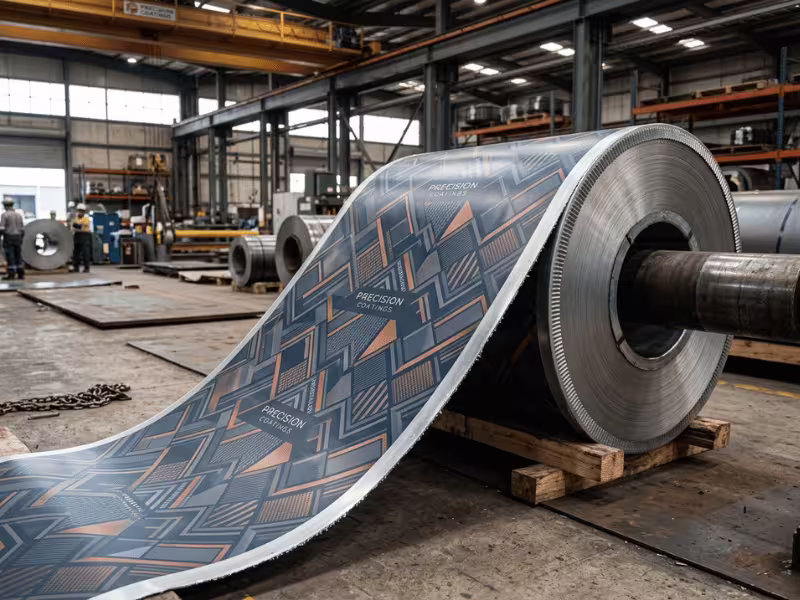

Printed Decorative Film
Custom printed patterns produced from your artwork or reference, for branded or design-specific decorative surfaces. Pattern and gloss are confirmed on a production sample before the full run.
Processing Capabilities
Downstream processing is available in-house, so your PVC laminated steel can arrive in the format your door workshop, appliance line, or panel plant actually needs — not just as master coil.
Slitting
Coils are slit to custom widths from 20 mm and above, with tight tolerances and clean edges suited to panel forming and door part production. Pattern direction is preserved for directional films.
Cut-to-Length
Sheet blanks cut to your dimensions with flatness and squareness tolerances suitable for direct press, stamping, or panel-forming feeding, with protective paper where required.
Lamination
PVC film laminated under controlled temperature, line speed, and pressure, followed by stable cooling to protect surface flatness and later forming behavior.
Protective Film
A peelable protective layer applied over the finished surface for slitting, cutting, packing, and assembly. Peel strength is matched to your storage time and process to avoid residue.
Custom Color and Film Matching
Submit a physical sample, film reference, or target finish, and our technical team matches film surface, gloss, pattern, and texture — with a production sample provided for approval before the full run begins.
Sourcing slit strip or custom-cut blanks for a door or panel project?
Send your film type, substrate, thickness, width, and surface finish, and our team will confirm lead time and pricing within one business day.
Recommended Specifications by Application
| Application | Recommended Thickness | Base Metal | Film Type | Surface |
|---|---|---|---|---|
| Steel door skins | 0.30 – 0.50 mm | GI / cold-rolled | PVC printed | Wood grain / leather |
| Interior door panels | 0.30 – 0.50 mm | GI / cold-rolled | PVC decorative | Wood grain / matte |

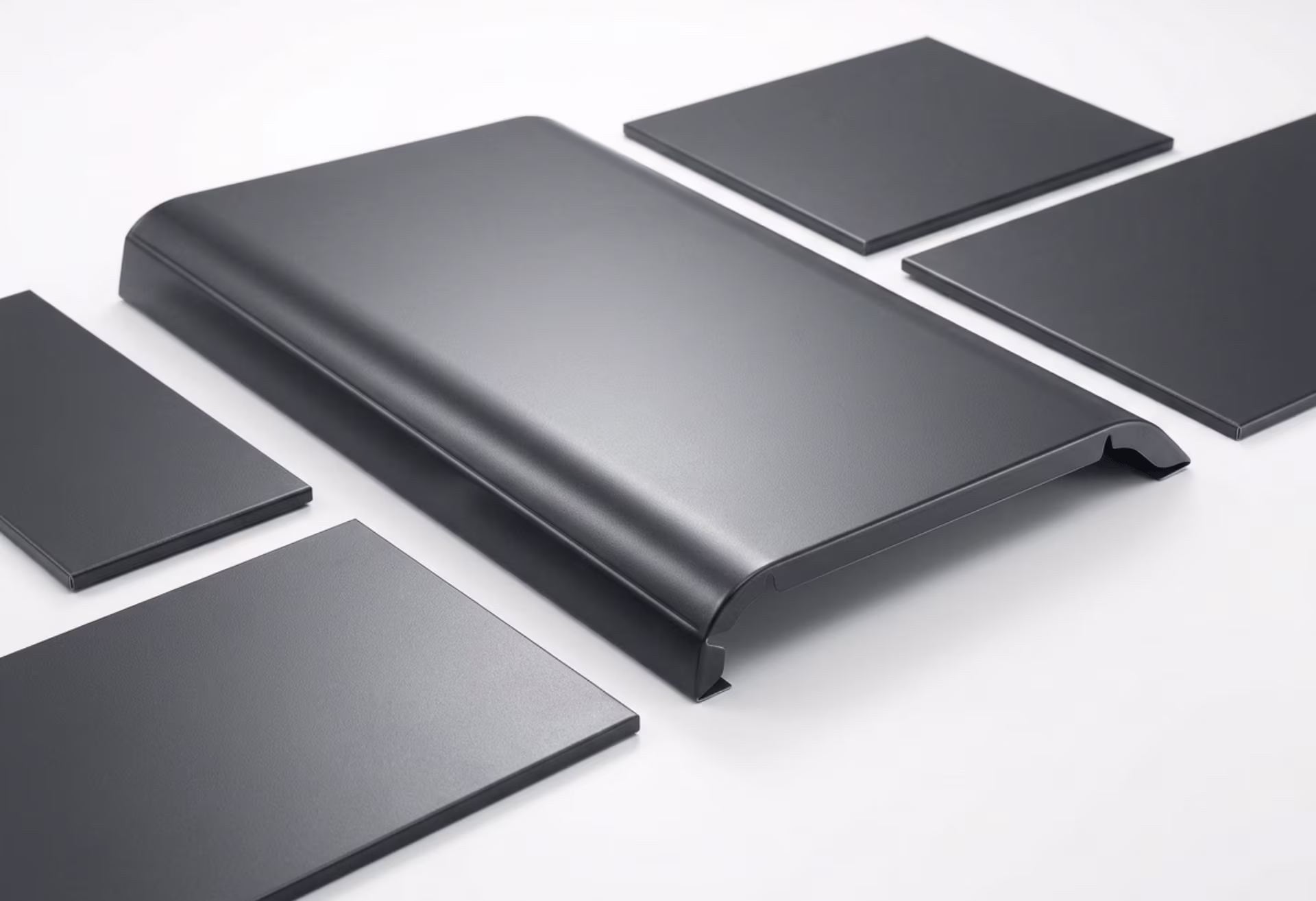

| Appliance panels | 0.40 – 0.60 mm | GI / EGI | PVC solid / printed | Solid color / matte |
| Furniture surfaces | 0.30 – 0.50 mm | GI / cold-rolled | PVC printed | Wood grain / leather |

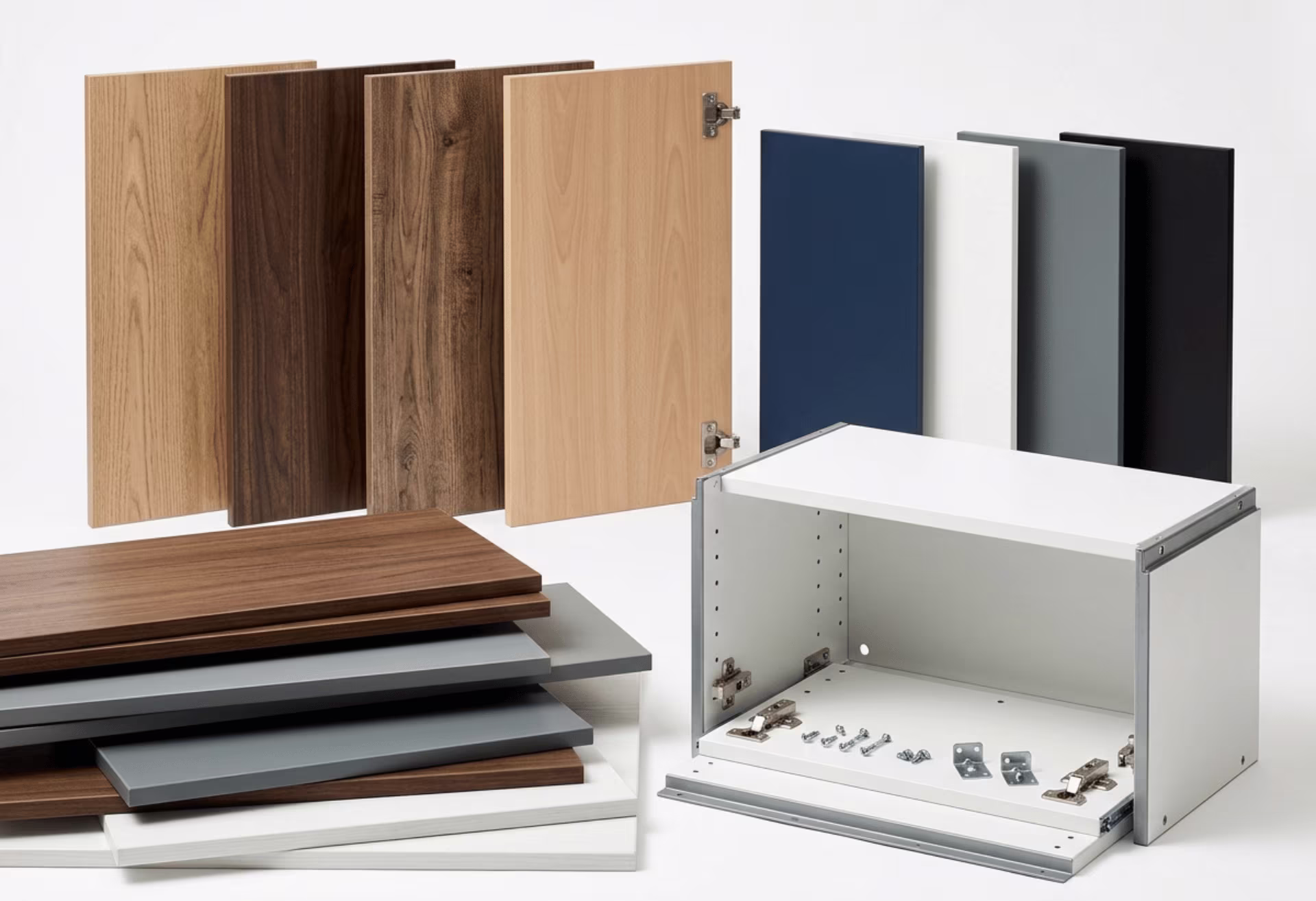

| Cabinet and shelving parts | 0.40 – 0.70 mm | GI / cold-rolled | PVC solid | Solid color / matte |

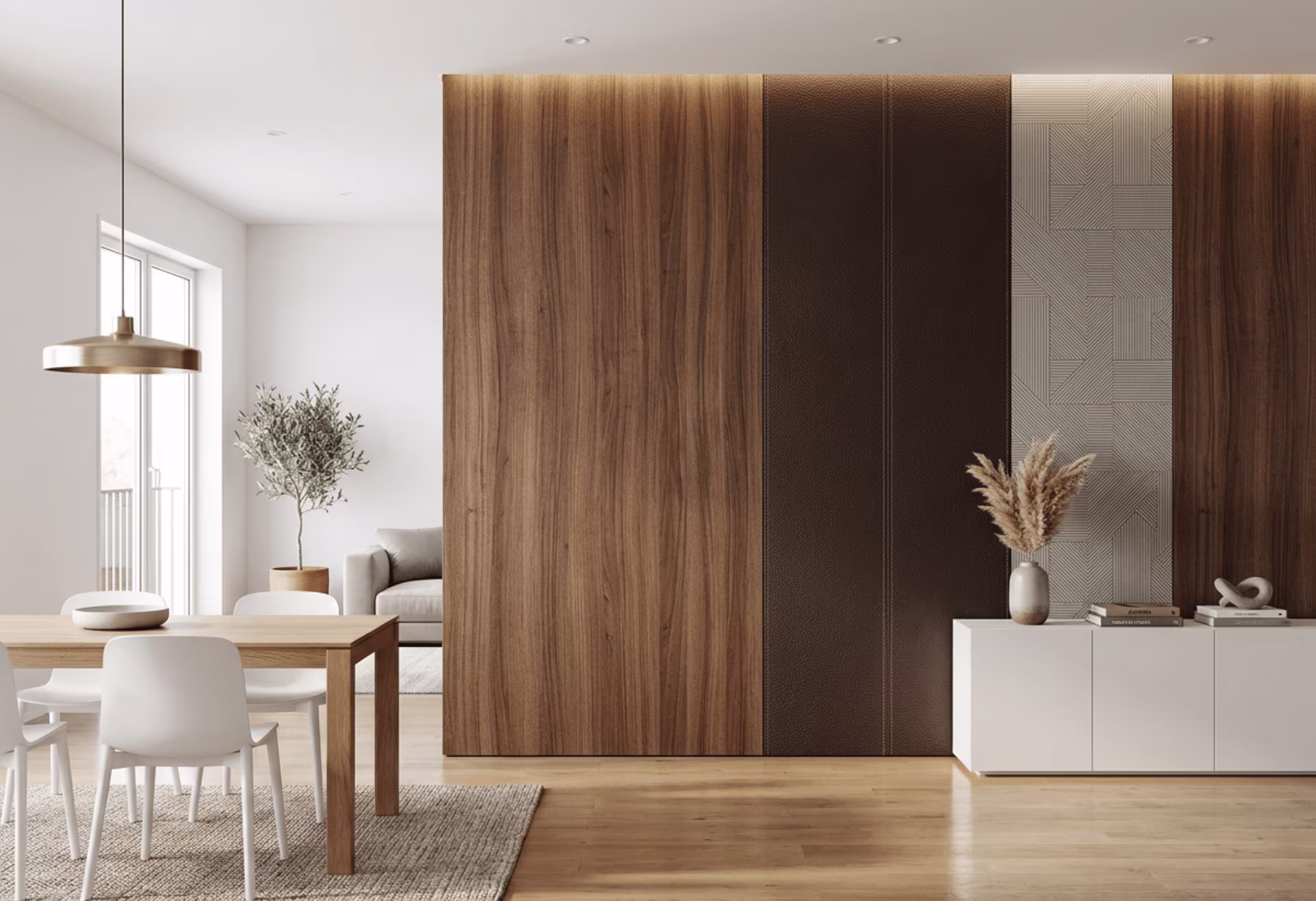

| Interior decorative panels | 0.30 – 0.50 mm | GI / EGI | PVC printed | Wood grain / stone / matte |
- These are indicative starting points. Final specifications should be confirmed based on your forming process, surface requirements, and service environment.
Typical Applications
Quality Control and Certifications
Everesteel maintains a documented quality management system across every production stage — from incoming substrate inspection through to final coil labeling and packaging.
In-process controls include:
- Incoming substrate inspection (thickness, surface quality, mechanical properties)
- Film thickness and lamination temperature monitoring at the line
- Adhesion testing (cross-cut and T-bend) to verify film bonding
- Color, gloss, and pattern-direction measurement against approved reference standards
- Scratch resistance checks for selected film grades
- Protective film and packing condition check before shipment
Test reports and mill certificates are issued with each shipment. Third-party inspection — including SGS, BV, and CCIC — can be arranged before loading on request.
FAQs
Q1. Should I choose PVC film or PET film?
It depends on your process and surface needs. PVC film offers rich decorative depth, flexible surface design, and better cost efficiency, which makes it ideal for wood grain, leather texture, and decorative door and panel surfaces. PET film provides higher surface hardness, better heat stability, and a cleaner feel, which suits high-gloss, metallic, and premium panels. For most decorative door and panel work, PVC is the value choice; for demanding heat or forming conditions, we recommend confirming film grade with a sample.
Q2. Is PVC laminated steel the same as painted steel?
No. PVC laminated steel bonds a pre-made decorative PVC film to the substrate, while painted steel applies a liquid paint coating. The film gives more surface depth, richer textures like wood grain and leather, and design flexibility that paint can’t match. Choose PVC laminated steel when decorative depth and texture matter; choose painted products like PCM or PPGI for a stable solid color.
Q3.Will the PVC film survive forming, bending, and stamping?
A correctly specified PVC laminated steel will. PVC film flexes well and generally forms cleanly, but film adhesion and behavior depend on the film grade and how tight your forming radius is. We verify adhesion with cross-cut and T-bend testing on every batch, and for tight-radius or deep-drawn parts we recommend a sample trial to confirm forming limits before bulk production.

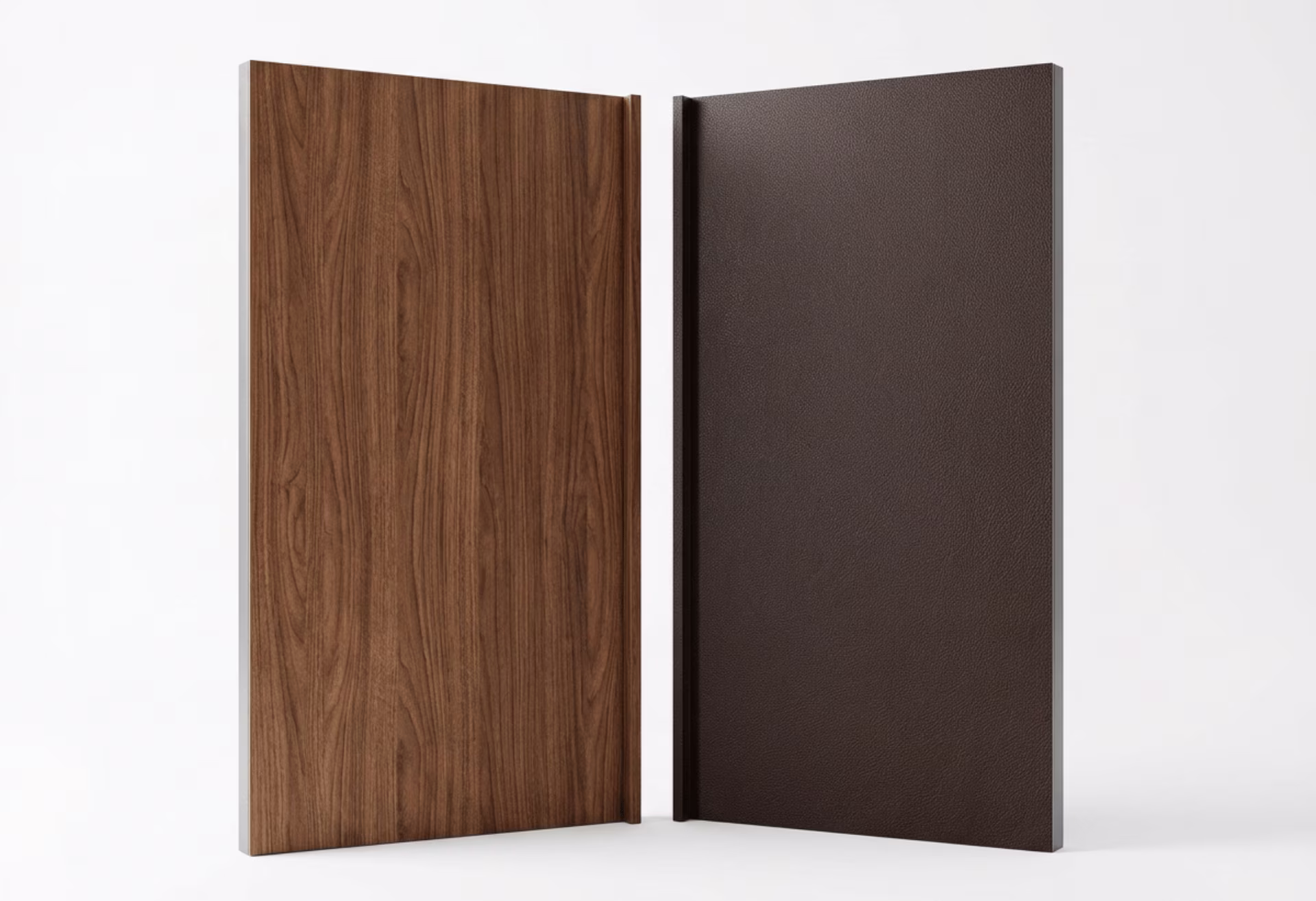

Q4. Can PVC laminated steel be used for steel doors?
Yes. It is one of the most common materials for steel door skins and interior door panels, where wood grain and leather-texture films give doors a decorative, durable surface without in-house painting. Directional patterns are slit with grain direction preserved so the finished door looks consistent.
Q5. Is PVC laminated steel suitable for outdoor use?
PVC laminated steel is designed mainly for interior and enclosed applications — doors, appliances, furniture, and decorative panels. For long-term outdoor or weather-exposed use, we recommend a galvanized or galvalume coated product such as PPGI or PPGL. If your application involves occasional moisture, we can advise on the right substrate and film combination.
Q6.What is your minimum order quantity for PVC laminated steel?
Our standard minimum order quantity is 5 tons per specification. For custom films or non-standard dimensions, we recommend 5–10 tons to cover setup and film matching costs. Contact us to discuss your project volume.
Q7. Can I approve a sample before committing to a bulk order?
Yes, and we recommend it for every PVC laminated order, especially for visible decorative surfaces and formed parts. You receive a sample sheet or line trial material to confirm film surface, color, gloss, pattern, and forming behavior. Mass production starts only after you approve the sample in writing.
Q8. Can PVC laminated steel be supplied as coils and cut-to-length sheets?
Yes. We supply PVC laminated steel as master coil, slit coil, cut-to-length sheet, or sample sheet to your specified dimensions. Sheets are stacked, interleaved with protective paper where required, and packaged with edge and surface protection for export.
