PET Laminated Steel
High-performance film-laminated steel for premium visible panels and appliance surfaces
PET laminated steel from Everesteel combines metal substrates with a bonded PET surface film to create a hard, heat-stable, and easy-clean finish for demanding visible applications. It is widely used for refrigerator doors, display cabinets, wine coolers, and other appliance or enclosure panels where surface appearance and durability both matter.
- Available with high-hardness PET film on GI, EGI, and cold-rolled steel substrates
- Designed for heat stability, scratch resistance, and premium surface appearance
- Suitable for appliance doors, display cabinets, wine coolers, and visible metal panels
- Film matching, slit coil, and cut-to-length support available
- MOQ from 5 tons for sampling and production supply
Own Factory, Own Coating Lines, Full Specification Control
Everesteel produces every PET laminated coil on our own lamination and processing lines in Jiangyin, one of China’s primary steel-processing hubs. We are a manufacturer — not a trading company.
That distinction matters with film-laminated material, where bonding strength, surface cleanliness, and batch appearance all depend on tight line control — not on a middleman relaying your requirements to a mill.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate
What is PET Laminated Steel?
PET laminated steel is a film-laminated steel product in which a PET film is bonded to a metal substrate, such as GI, EGI, or cold-rolled steel. Unlike painted steel, it derives its color, gloss, and surface texture from a preformed decorative film rather than a liquid coating.
Within the laminated steel family, PET is typically selected for applications that require a harder surface, better heat stability, and a cleaner visible finish than standard PVC decorative films can provide. It is commonly specified for high-gloss, metallic, brushed, and anti-fingerprint appliance panels where scratch visibility, surface consistency, and forming reliability matter.
PET laminated steel is a layered system. A typical construction may include a protective film, a PET decorative film, an adhesive or primer layer, pretreatment, a base metal, and an optional back coat. Each layer affects final performance, especially adhesion, forming behavior, heat stability, corrosion performance, and batch-to-batch appearance consistency.
When specifying PET-laminated steel, buyers should confirm the base metal, film grade, film thickness, forming method, protective film requirement, and the visual approval standards for gloss, color, and pattern direction. It is widely used for refrigerator doors, freezer panels, display cabinets, wine coolers, and other premium visible appliance surfaces.
PET Laminated Steel vs PVC Laminated / PCM: Which Should You Choose?
All three are pre-finished steel products. The difference is the surface system on top of the substrate.
| Factor | PET Laminated Steel | PVC Laminated Steel | PCM Steel |
|---|---|---|---|
| Surface system | PET film laminated to steel | PVC film laminated to steel | Baked polymer paint coating |
| Main strength | Higher hardness, heat stability, clean feel | Rich decorative depth, flexible design, cost efficiency | Stable solid color, uniform finish |
| Surface options | High gloss, metallic, brushed, anti-fingerprint | Wood grain, leather, matte, solid color | Solid colors, matte, gloss, wrinkle |
| Heat stability | Higher | Good — confirm grade for demanding processes | High |
| Scratch resistance | Higher | Standard | Standard |
| Cost level | Premium | Most economical of the films | Economical |
| Best for | Premium visible and high-gloss panels | Door skins, decorative panels, appliance surfaces | Appliance shells, HVAC, interior panels |
- Choose PET-laminated steel when the panel is highly visible and requires hardness, heat stability, or a flawless high-gloss or metallic surface. Step down to PVC film for cost-efficient wood-grain and leather looks, and choose PCM when a stable, solid-color paint finish is enough.
Why Buyers Source PET from Everesteel
A Harder Surface That Survives Handling and Assembly
PET film gives a noticeably harder surface than PVC, which means fewer scratches and marks through fabrication, assembly, and end use. That matters most for high-gloss and metallic panels, where a single scratch is visible and costs you a rejected part. Because we run our own lamination lines, we match film grade and thickness to your process, then verify surface hardness against reference standards on every batch — so premium panels stay flawless.
Heat Stability Matched to Your Process and End Use
PET holds its surface under higher temperatures than PVC, making it the safer choice for panels near heat sources or those going through demanding forming. We help you confirm film grade against your actual process — whether that's deep-drawn refrigerator doors or heat-exposed appliance panels — and prove it on a production sample before mass production, so the finish doesn't blister, haze, or shift color in service.
Film Adhesion Verified Before It Reaches Your Line
A PET laminated panel is only as strong as the bond between film and substrate. We control pretreatment, primer application, and lamination temperature and pressure in-house, then verify the bond with cross-cut and T-bend adhesion testing on every batch. That means the coils reaching your press or roll-former survive bending, cutting, and forming without the film lifting or delaminating — no rejected panels downstream.
Protective Film and Export Packing Built for Premium Surfaces
High-gloss and metallic panels show every scuff, so surface protection is part of the product, not an afterthought. We apply protective film with peel strength matched to your storage time and process, and pack coils and sheets with edge and surface protection for export — so the flawless finish you approved is the finish that arrives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | PET laminated steel / vinyl coated metal / PET film laminated steel |
| Base metal | GI, EGI, or cold-rolled steel (other substrates on request) |
| Base steel thickness | 0.30 mm – 1.20 mm (other gauges by project) |
| Film type | PET film, AFP film, PE film — high gloss, metallic, brushed, printed |
| Film thickness | 0.05 mm – 0.15 mm (by film grade and surface effect) |
| Coil width | 600 mm – 1,380 mm (slit widths available) |
| Surface finish | High gloss, metallic, brushed, matte, anti-fingerprint, solid color |
| Back side | Primer, back coat, or treated back surface per requirement |
| Protective film | Optional, peel strength matched to storage and process |
| Coil inner diameter | 508 mm / 610 mm |
| Coil weight | 3 – 8 tons per coil |
| Supply form | Coil, slit coil, cut-to-length sheet, sample sheet |
| Standards | JIS, EN, GB, or agreed project standard by substrate |
| Typical applications | Refrigerator doors, premium appliance panels, display cabinets, wine coolers |
- Specifications are indicative. Custom films, substrates, gauges, and widths are available on request. Minimum order quantity: 5 tons.
Surface and Pattern Options
PET-laminated steel gets its finish from a hard, heat-stable film, so premium high-gloss and metallic effects are its core strengths. The options below can be adjusted or combined to match your requirements.

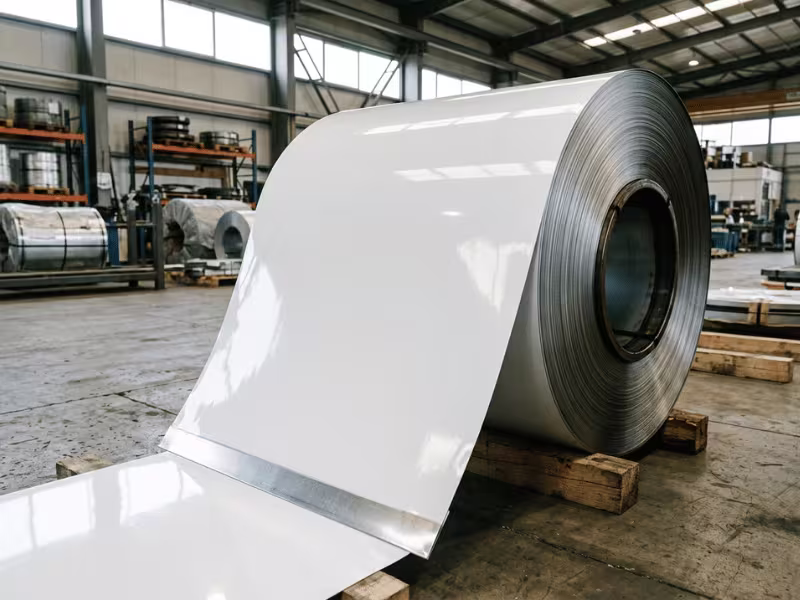

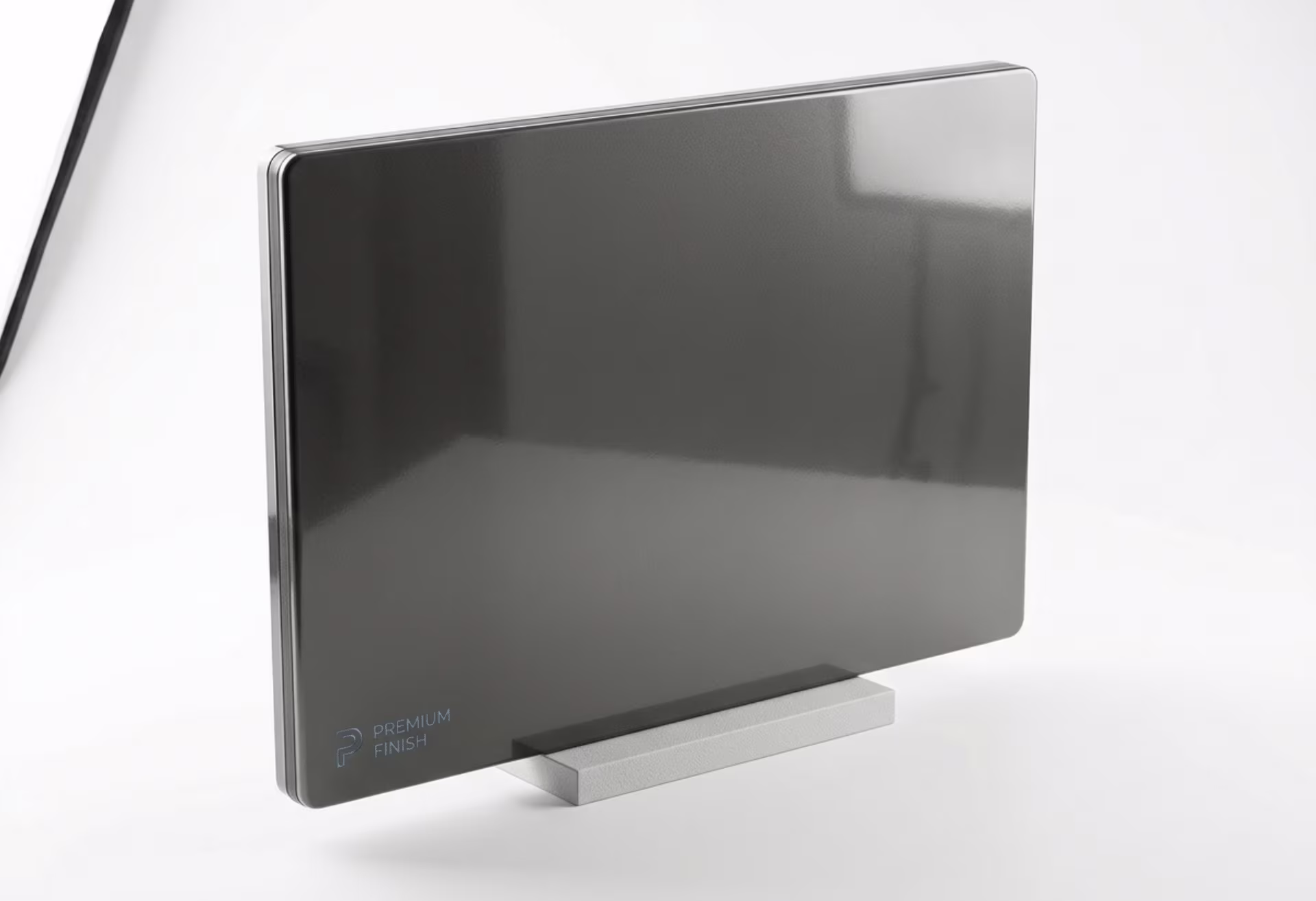

High Gloss Finish
Bright, mirror-smooth reflective surface for premium appliance doors and display fixtures. PET's hardness keeps the gloss looking clean and scratch-free where a softer film would mark easily.

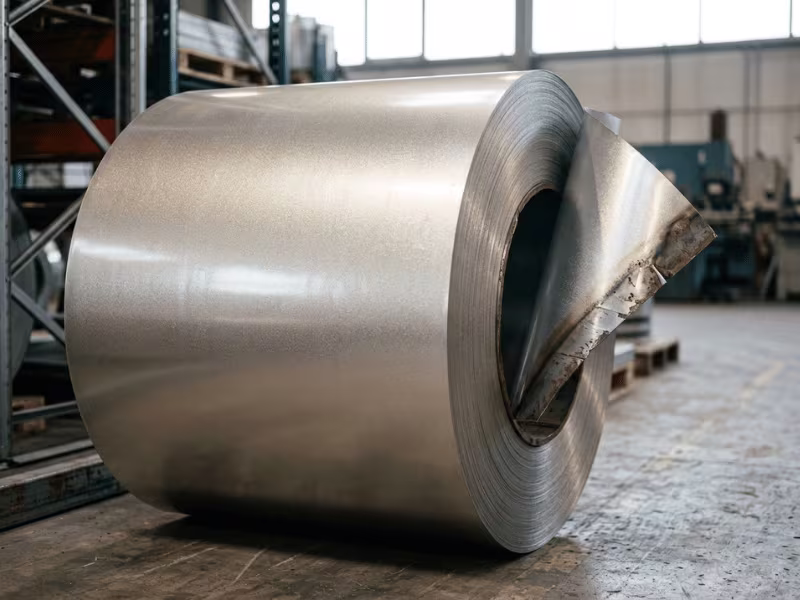

Metallic Finish
Metallic visual effect created by the film design, popular for refrigerator doors, premium panels, and display surfaces. Batch consistency and light reflection should be evaluated during sample approval.

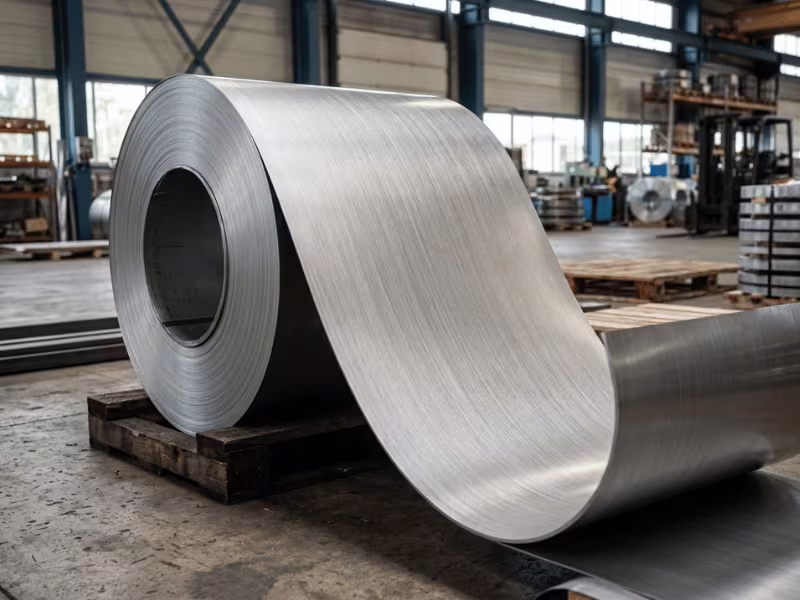

Brushed Finish
Directional hairline or short hairline film with metallic visual depth and a clean, refined feel. Pattern direction must be confirmed before slitting or forming so the grain runs the right way on the finished panel.

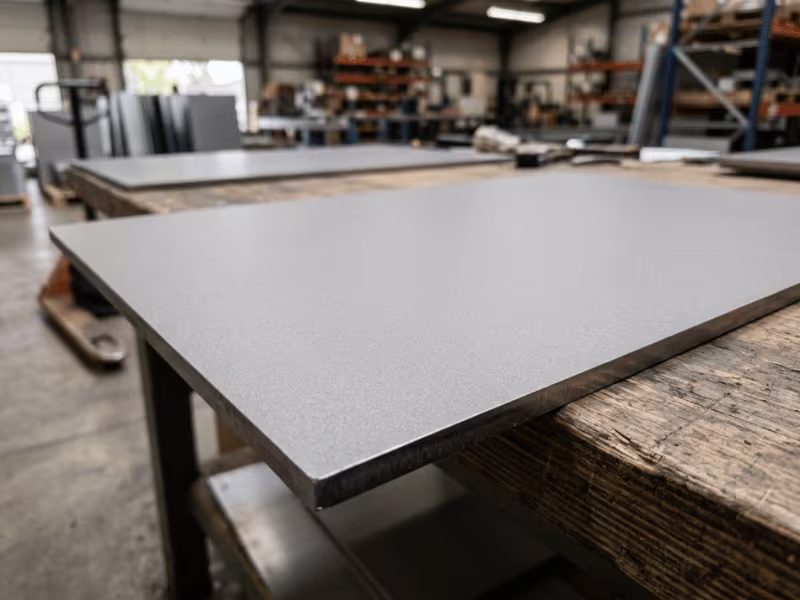

Matte / Texture Finish
Low-gloss or tactile surface that resists fingerprints and handling marks while keeping PET's hardness advantage. Cleaning behavior and film grade should be confirmed by sample for high-touch panels.

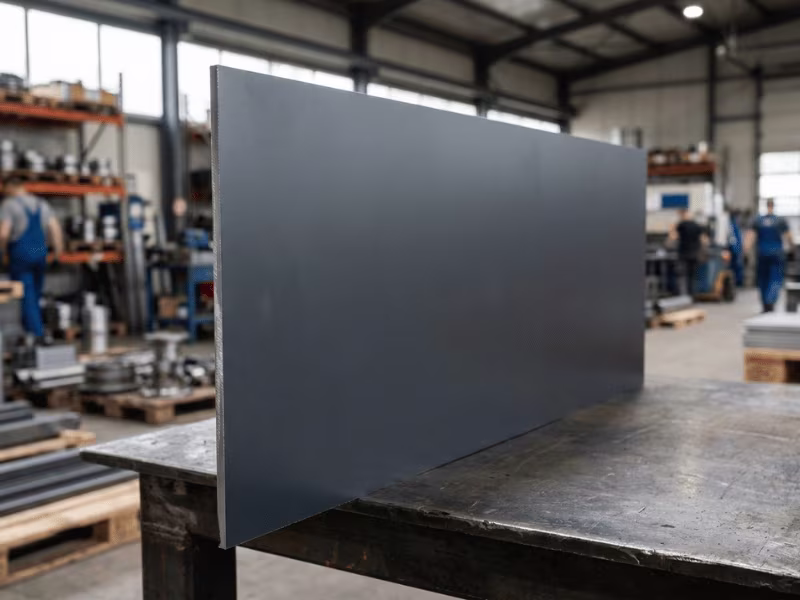

Anti-Fingerprint Film
AFP film option designed to reduce visible touch marks and ease cleaning — a natural fit for PET's clean surface feel, specified for refrigerator doors and frequently handled premium panels.

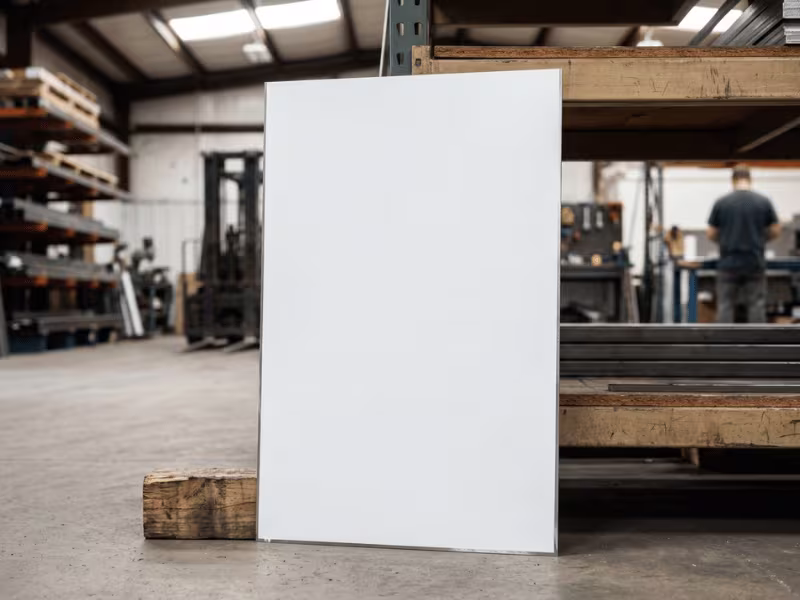

Solid Color Film
Uniform single-tone PET films in a wide color range, for premium appliance and display panels that need clean, consistent coverage with a hard, durable surface.
Processing Capabilities
Downstream processing is available in-house, so your PET laminated steel can arrive in the format your appliance line or panel plant actually needs — not just as a master coil.
Slitting
Coils are slit to custom widths from 20 mm and above, with tight tolerances and clean edges suited to panel forming and appliance part production. Pattern direction is preserved for directional films.
Cut-to-Length
Sheet blanks cut to your dimensions with flatness and squareness tolerances suitable for direct press, stamping, or panel-forming feeding, with protective paper where required.
Lamination
PET film laminated under controlled temperature, line speed, and pressure, followed by stable cooling to protect surface flatness and later forming behavior.
Protective Film
A peelable protective layer applied over the finished surface for slitting, cutting, packing, and assembly. Peel strength is matched to your storage time and process to avoid residue on high-gloss panels.
Custom Color and Film Matching
Submit a physical sample, film reference, or target finish, and our technical team matches film surface, gloss, pattern, and texture — with a production sample provided for approval before the full run begins.
Sourcing slit strip or custom-cut blanks for an appliance or display project?
Send your film type, substrate, thickness, width, and surface finish, and our team will confirm lead time and pricing within one business day.
Recommended Specifications by Application
| Application | Recommended Thickness | Base Metal | Film Type | Surface |
|---|---|---|---|---|
| Refrigerator door panels | 0.40 – 0.60 mm | GI / EGI | PET / AFP | Metallic / anti-fingerprint |
| Premium appliance panels | 0.40 – 0.60 mm | GI / EGI | PET | High gloss / metallic |

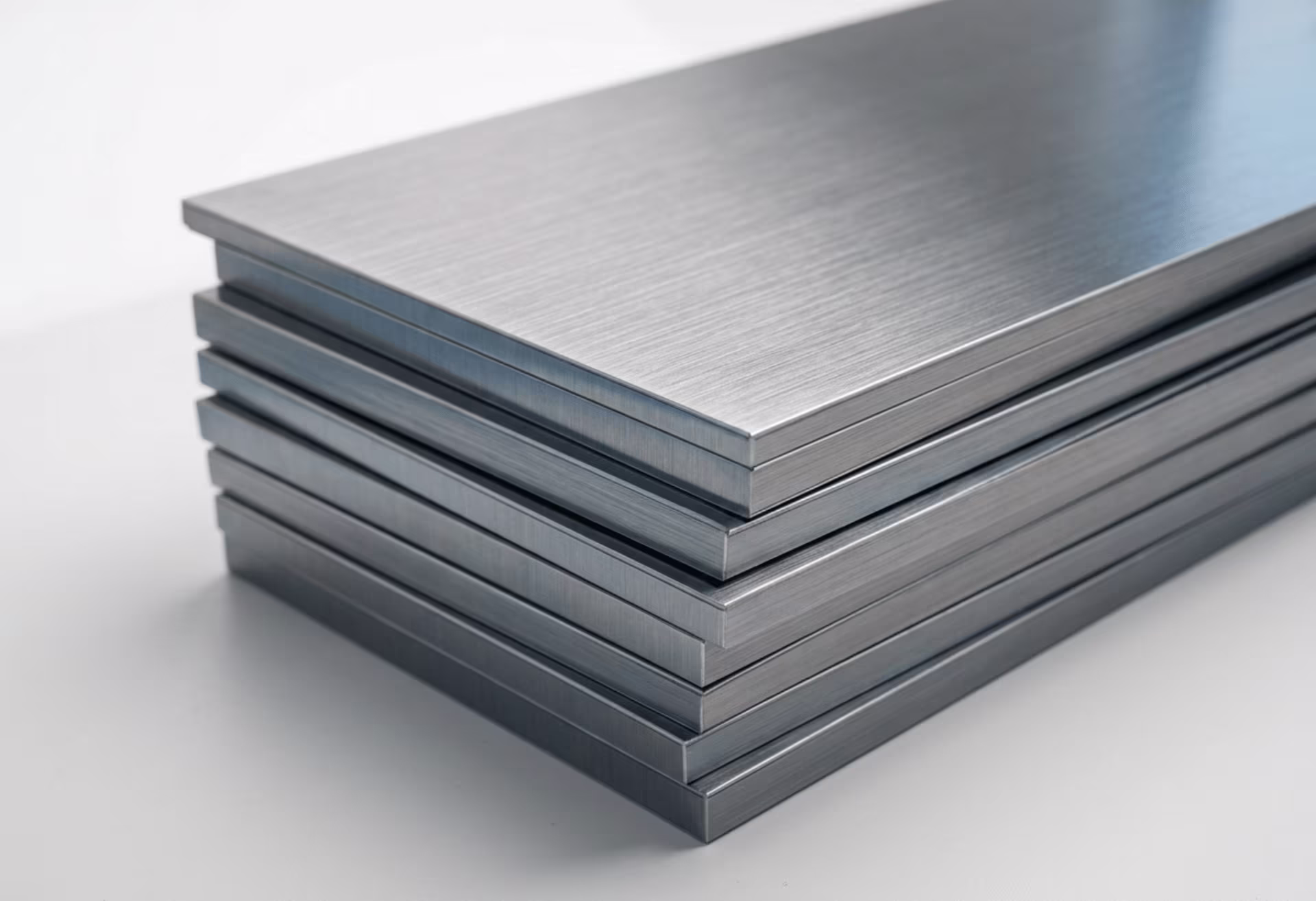

| Display cabinets | 0.40 – 0.60 mm | GI / EGI | PET | Brushed / metallic |

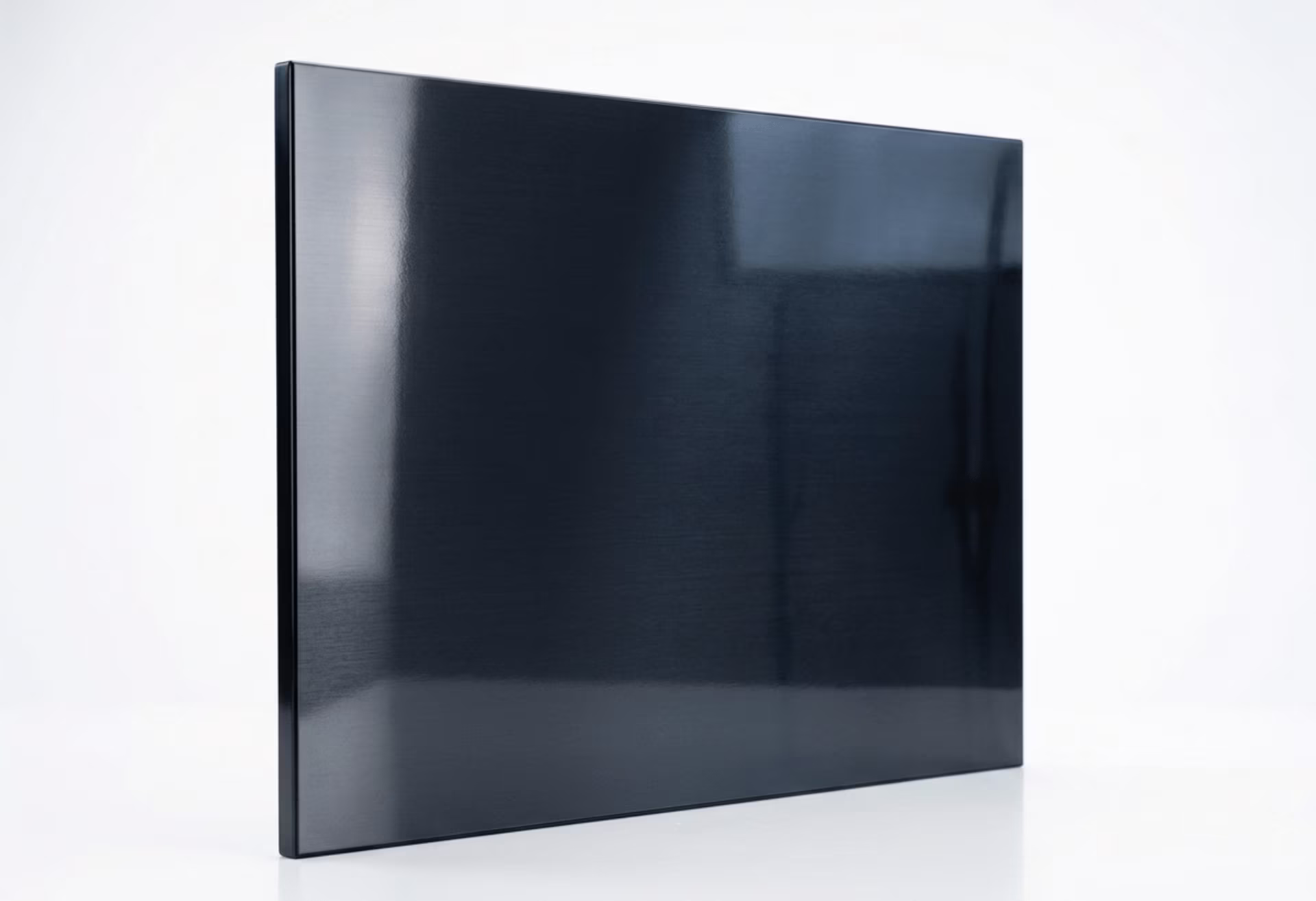

| Wine coolers | 0.40 – 0.60 mm | GI / EGI | PET | High gloss / brushed |
| Washing machine shells | 0.40 – 0.60 mm | GI / cold-rolled | PET | Metallic / high gloss |

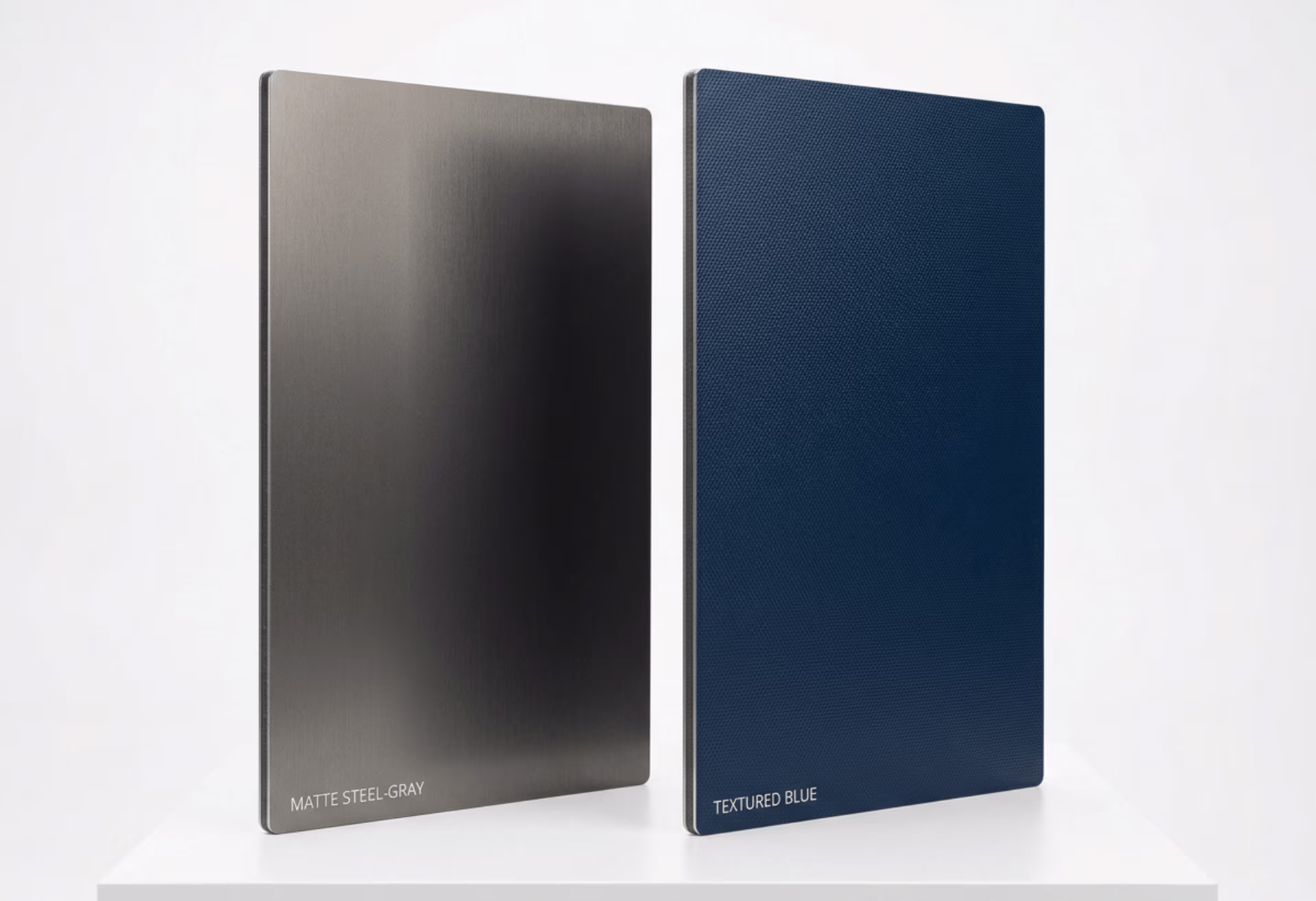

| Interior decorative panels | 0.30 – 0.50 mm | GI / EGI | PET / printed | Matte / metallic |
- These are indicative starting points. Final specifications should be confirmed based on your forming process, surface requirements, and service environment.
Typical Applications
Quality Control and Certifications
Everesteel maintains a documented quality management system across every production stage — from incoming substrate inspection through to final coil labeling and packaging.
In-process controls include:
- Incoming substrate inspection (thickness, surface quality, mechanical properties)
- Film thickness and lamination temperature monitoring at the line
- Adhesion testing (cross-cut and T-bend) to verify film bonding
- Surface hardness and scratch resistance checks for selected film grades
- Color, gloss, and pattern-direction measurement against approved reference standards
- Heat-stability checks for demanding applications
- Protective film and packing condition check before shipment
Test reports and mill certificates are issued with each shipment. Third-party inspection — including SGS, BV, and CCIC — can be arranged before loading on request.
FAQs
Q1. Should I choose PET film or PVC film?
It depends on your process and surface needs. PET film offers higher surface hardness, better heat stability, and a cleaner, more refined feel, which makes it ideal for high-gloss, metallic, brushed, and anti-fingerprint premium panels. PVC film offers richer decorative depth and better cost efficiency for wood grain, leather texture, and general decorative work. For premium visible panels that must resist scratching and heat, PET is the better choice; for cost-driven decorative surfaces, PVC usually wins on value.
Q2. Is PET laminated steel the same as painted steel?
No. PET laminated steel bonds a pre-made high-performance PET film to the substrate, while painted steel applies a liquid paint coating. The film gives higher surface hardness, better heat stability, and a cleaner high-gloss or metallic finish that paint can’t easily match. Choose PET laminated steel when hardness and a premium visible surface matter; choose painted products like PCM or PPGI for a stable solid color.
Q3.Will the PET film survive forming, bending, and stamping?
A correctly specified PET laminated steel will. PET is harder than PVC, so film grade and forming radius matter more for tight-radius work. We verify adhesion with cross-cut and T-bend testing on every batch, and for deep-drawn or tight-radius parts we recommend a sample trial to confirm forming limits before bulk production, so the film doesn’t crack or lift on the finished part.
Q4. Why is PET more heat-stable than PVC?
PET is a more thermally stable polymer than PVC, so it holds its color, gloss, and surface integrity at higher temperatures. This makes PET the safer choice for panels near heat sources, for demanding forming processes, and for applications where the surface must not haze or discolor over time. For heat-critical applications, we confirm the film grade against your conditions before production.
Q5. Can PET laminated steel be used outdoors?
PET laminated steel is designed mainly for premium interior and enclosed applications — refrigerator doors, appliances, display cabinets, and decorative panels. For long-term outdoor or weather-exposed use, we recommend a galvanized or galvalume coated product such as PPGI or PPGL. If your application involves occasional moisture, we can advise on the right substrate and film combination.
Q6.What is your minimum order quantity for PET laminated steel?
Our standard minimum order quantity is 5 tons per specification. For custom films or non-standard dimensions, we recommend 5–10 tons to cover setup and film matching costs. Contact us to discuss your project volume.
Q7. What is the typical lead time for PET orders?
Standard lead time is 15–25 days from order confirmation and deposit receipt. Custom films or new surface matching may add a few days for sample approval. Expedited scheduling may be available depending on production capacity at the time of order.
Q8. Can I approve a sample before committing to a bulk order?
Yes, and we recommend it for every PET laminated order, especially for high-gloss and metallic surfaces where appearance is critical. You receive a sample sheet or line trial material to confirm film surface, color, gloss, hardness, and forming behavior. Mass production starts only after you approve the sample in writing.
