Steel for Display Cabinets
VCM, PCM and Prepainted Steel for Wine Coolers, Beverage Display Cases and Commercial Showcase Shells
Everesteel supplies VCM laminated steel, PCM steel, and prepainted steel for wine cooler shells, beverage display cabinets, refrigerated display cases, and commercial showcase housings. You buy direct from our coating lines in Jiangyin, China — with custom colors, sample matching, in-house processing, and export packaging built into the supply.
- VCM laminated steel for premium visible shells with brushed, metallic, and dark finish options
- PCM steel for solid-color cabinet bodies, side panels, and cost-controlled parts
- Hairline finish steel for a brushed-metal appearance at lower cost than solid stainless steel
- Gloss, matte, metallic, brushed, and custom color finish options
- Coil, slit coil, and cut-to-length sheet supply for OEM display cabinet lines
Own Factory. Own Coating Lines. Direct Manufacturing Supply.
Everesteel is a vertically integrated prepainted steel manufacturer based in Jiangyin, Jiangsu — one of China’s major steel processing hubs. Every coil of display cabinet steel that leaves our facility is produced, coated, processed, and packaged in-house, on our own lines, under our own quality system, with 26,000+ tons of annual production capacity supplying buyers in 65+ countries.
You buy direct from the manufacturer, not through a trading intermediary. That means tighter specification control, more consistent batch quality, shorter communication paths, and pricing aligned more closely with actual production conditions.
When you place an order with Everesteel, you deal directly with the team responsible for production and delivery.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate
Why Material Selection Matters for Display Cabinets
Display cabinets are sold on how they look. A wine cooler shell, a glass-door showcase, and a supermarket display case all sit in retail and showroom environments where the finish is part of the product’s appeal. On top of appearance, refrigerated cabinets face condensation, frequent cleaning, and years of handling — so the surface has to look premium and survive real use.
That is why most cabinet manufacturers use different material structures for different parts of the same unit. Before you select, it helps to weigh five factors:
- Cabinet position — outer shell, door trim, side panel, internal liner, or visible fascia
- Surface appearance — brushed, hairline, metallic, dark, matte, gloss, or anti-fingerprint
- Forming method — bending, stamping, roll forming, or flat panel lamination
- Durability and condensation needs — moisture resistance, cleanability, coating adhesion, scratch resistance
- Cost target — premium decorative shell vs. economical solid-color body or hidden liner
Get these right, and you match the material to how each part is actually made, seen, and exposed — no field failures on visible shells, no wasted spend on hidden liners.
Recommended Steel Materials by Cabinet Position
Use this table to match VCM, PCM, hairline finish, and prepainted steel to the correct part before requesting a quote.
| Display Cabinet Position | Recommended Material | Why It Is Used |
|---|---|---|
| Outer Shell / Exterior Body | VCM laminated steel / PCM steel | Visible premium surface that needs strong appearance, brushed or dark finishes, and stable batch color |
| Door Frame / Fascia / Trim | Hairline finish steel / brushed VCM | Frequently touched visible edges that need a refined metal look and clean handling appearance |
| Side Panels | PCM steel | Practical and cost-effective for solid-color parts with good forming behavior |
| Internal Metal Liner / Rear Panel | PCM steel / VCM steel | Cleanable, condensation-resistant surface for internal parts, confirmed by service conditions |

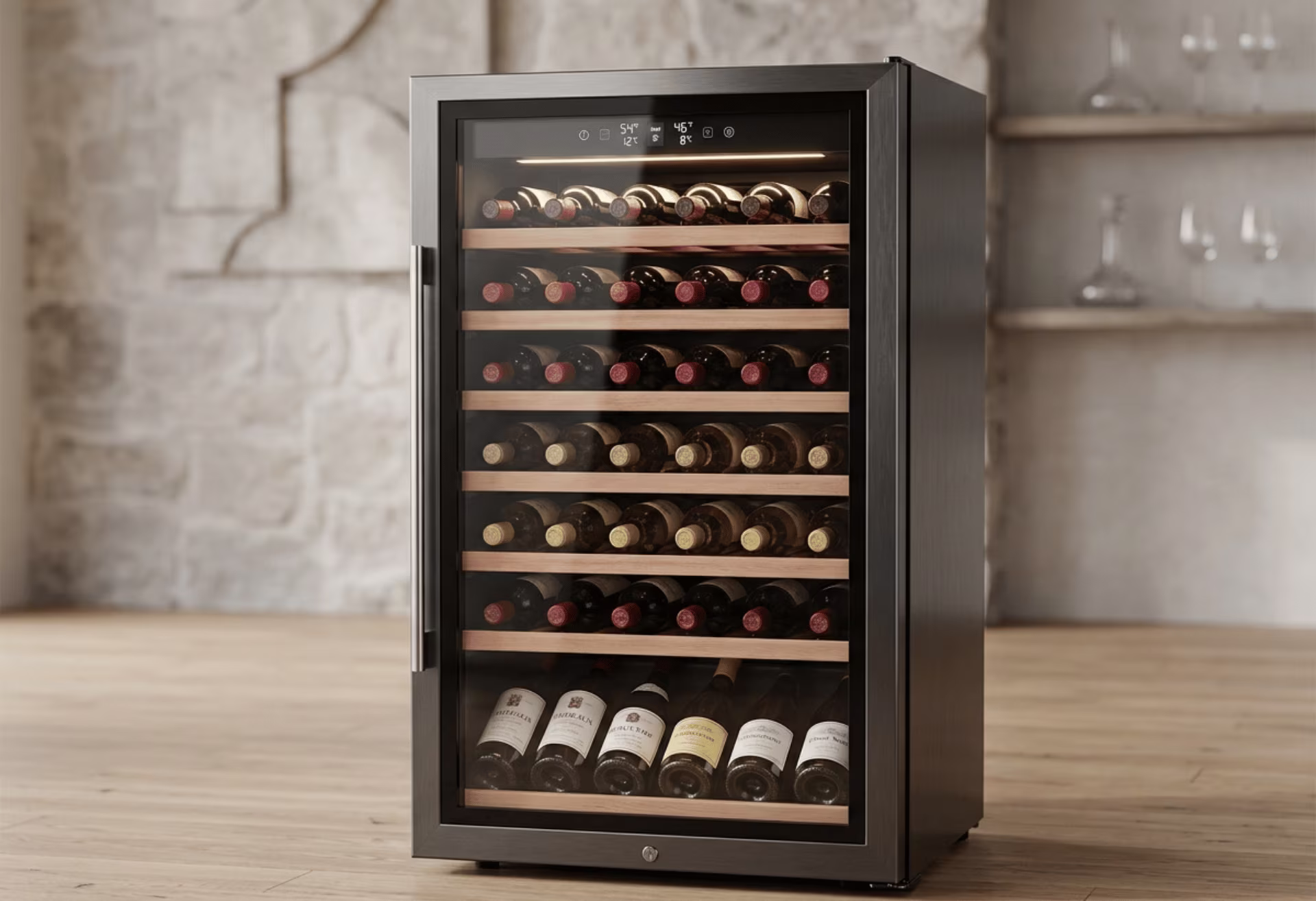

| Wine Cooler Shells | VCM laminated steel | Black, silver, brushed, and metallic finishes for premium visible cooler exteriors |

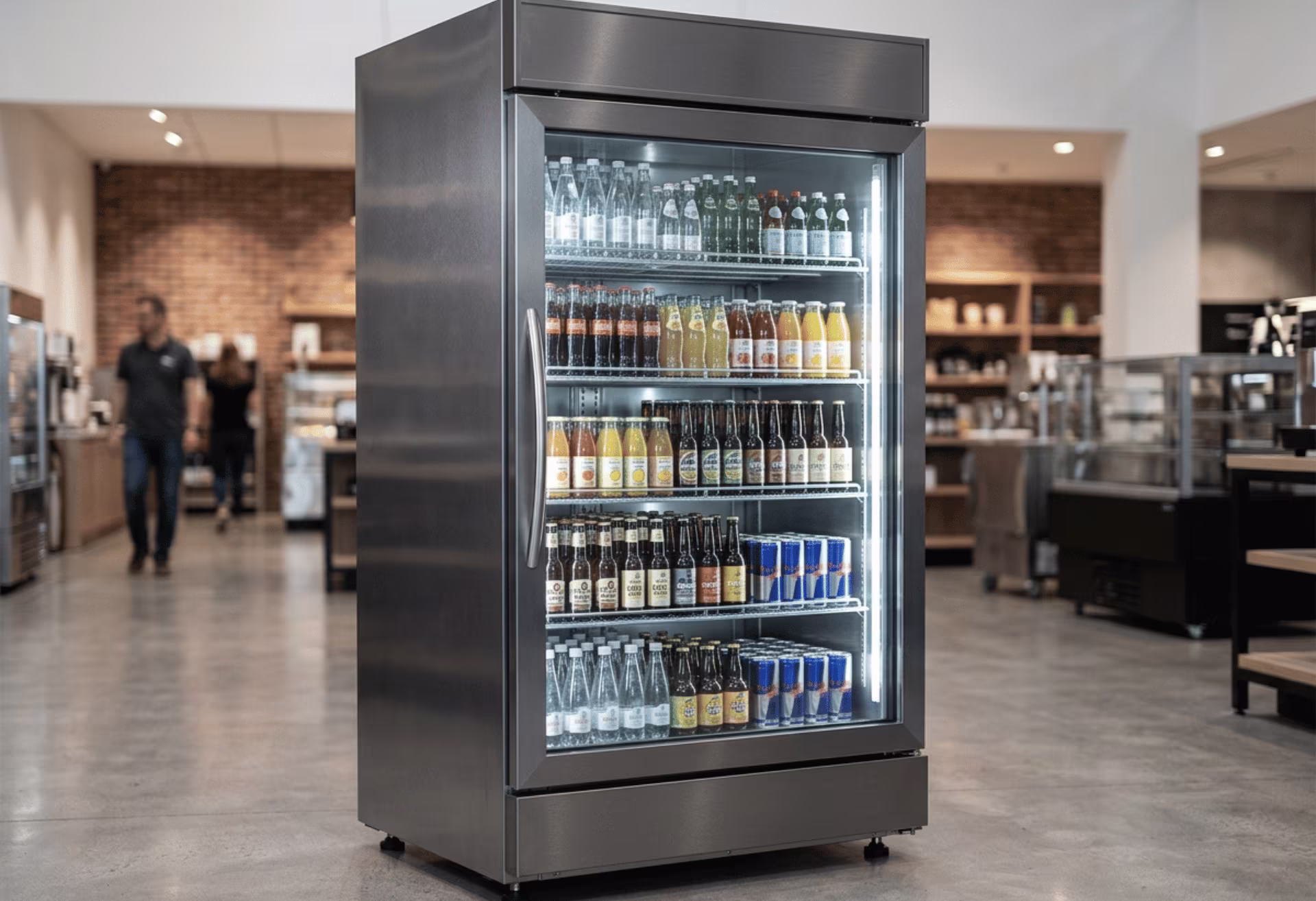

| Beverage Display Cases | VCM laminated steel / PCM steel | Selected by target appearance and price level for retail showcase bodies |
Not sure which fits your model? Send your cabinet position and target finish, and our team will recommend a structure before quoting.
VCM vs PCM for Display Cabinets
Choosing between VCM and PCM is one of the most common sourcing decisions for display cabinet buyers. Both are pre-finished steel products, so the difference comes down to the surface system on top of the substrate.
| Factor | VCM Laminated Steel | PCM Steel |
|---|---|---|
| Surface system | PVC or PET film laminated onto steel | Baked paint coating on steel |
| Appearance | Rich decorative depth, texture, metallic and brushed effects | Stable, uniform solid color |
| Best use | Wine cooler shells and visible premium cabinet surfaces | Side panels, cabinet bodies, internal liners, cost-sensitive parts |
| Surface options | Brushed, hairline, high gloss, metallic, dark, anti-fingerprint, custom film | Solid colors, matte, gloss, smooth painted finish |
| Cost level | Higher | More economical |
| Selection logic | Choose when visible appearance is the priority | Choose when cost control and stable painted color matter more |
Quick selection guide:
- Choose VCM when the shell is highly visible and the finish is part of the cabinet’s selling point.
- Choose PCM when you need a clean, consistent solid-color body or liner at a lower cost.
- Choose hairline finish steel when you want a refined brushed-metal look on trim and fascia without paying for solid stainless steel.
- Choose PET laminated steel when a visible surface needs higher hardness and a cleaner, more premium feel.
Surface Finish Options for Display Cabinets
Display cabinets can be specified in different surface styles depending on the cabinet design and target market. Each finish can be matched to your sample or reference before production begins.

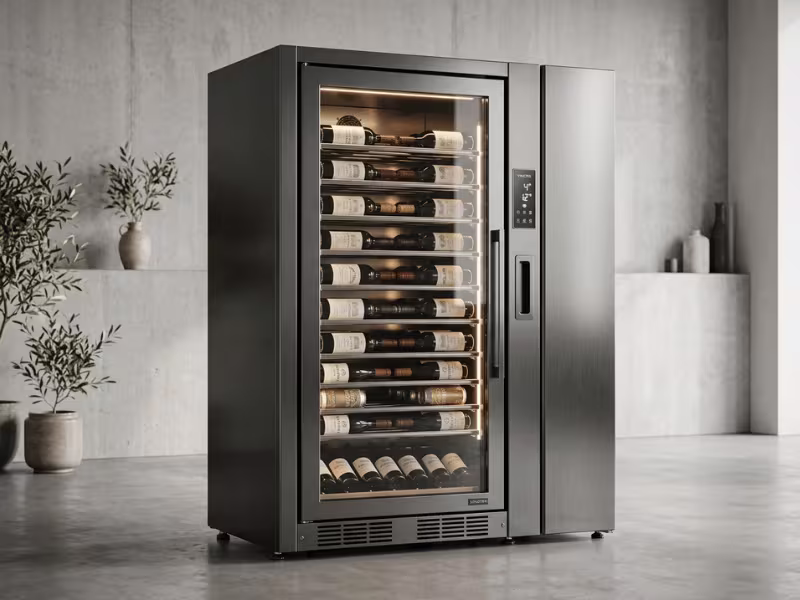

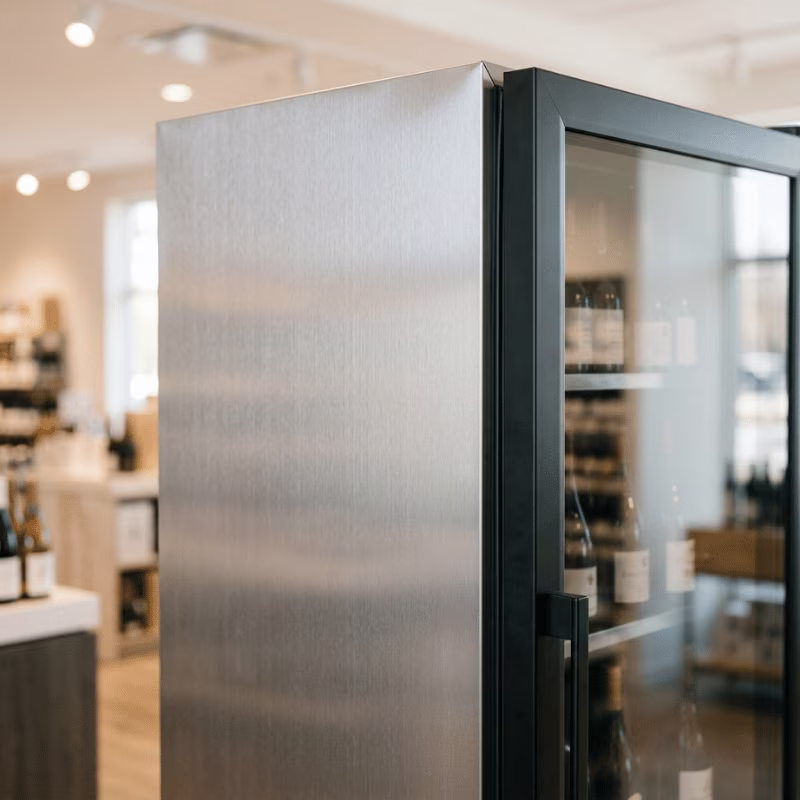

Brushed / Hairline Finish
A directional decorative finish that gives cabinet shells a refined metal look similar to brushed stainless steel. It is a popular choice for wine coolers, showcase trim, and premium visible bodies where an upscale appearance is required.

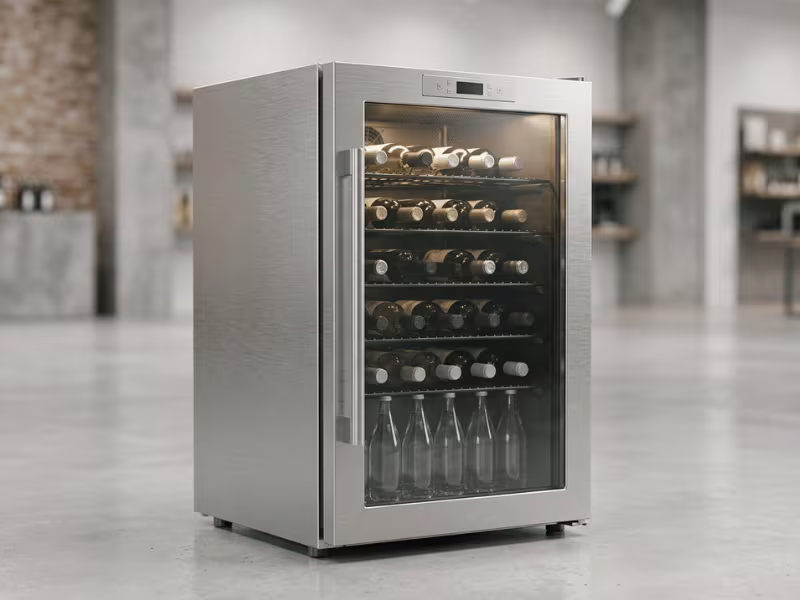

Metallic Finish
A surface designed to create a silver, titanium, or other metallic visual effect without solid stainless steel. Metallic finishes are widely used for wine cooler shells and beverage display cases that need to stand out on the sales floor.

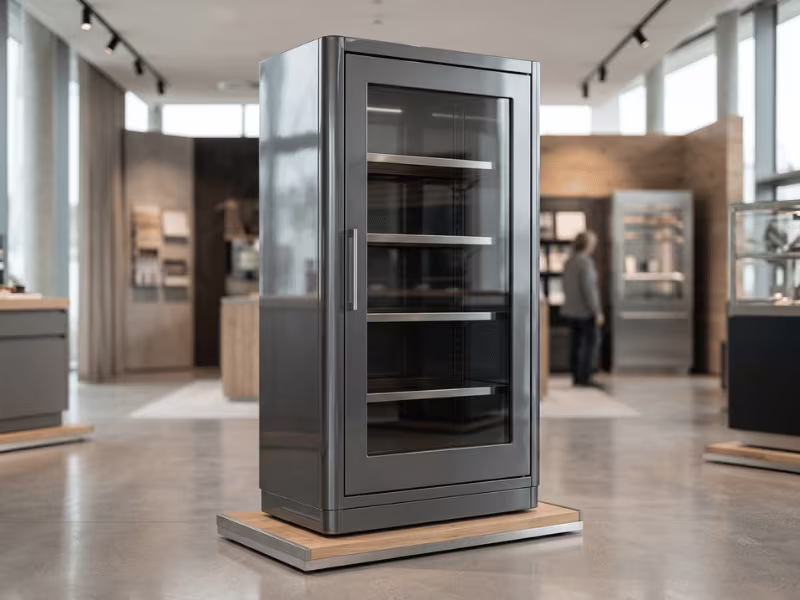

High Gloss Finish
A brighter, more reflective finish for surfaces where sharp color presentation matters. High gloss is often selected for decorative front shells and premium showcase panels that need a polished, easy-to-wipe look.

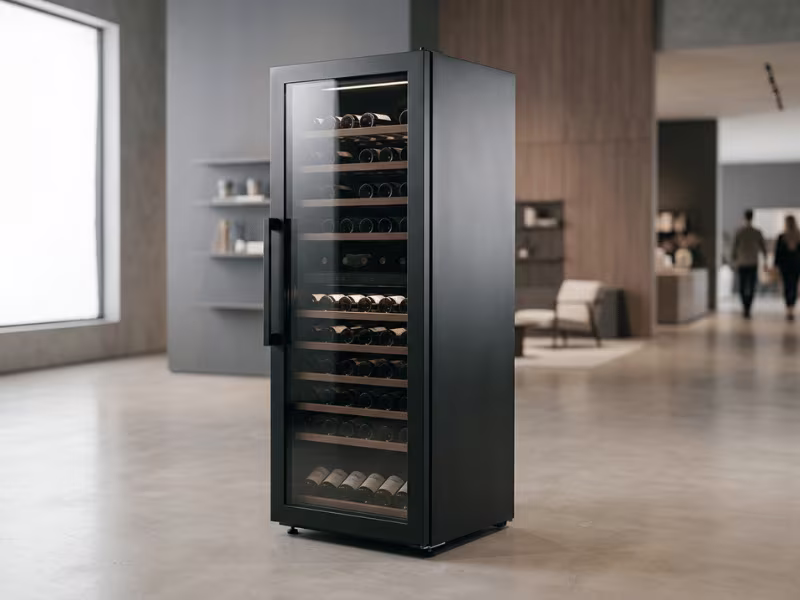

Matte Finish
A low-reflection surface suited to modern cabinet designs. Matte finishes help hide fingerprints and light marks, and give a cleaner, more premium appearance on dark and colored shells.

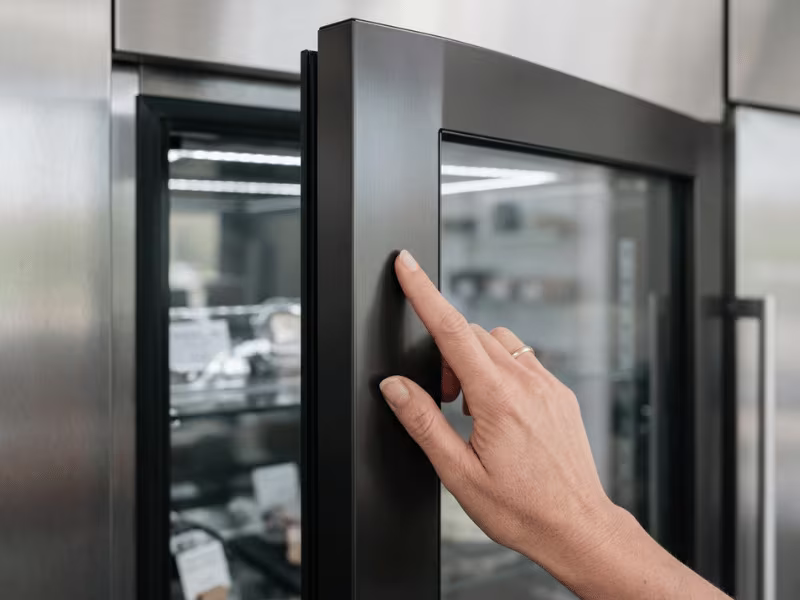

Anti-Fingerprint Surface
Recommended for frequently touched shells, doors, and trim. This finish reduces visible smudges and makes cleaning easier, which is especially useful for busy retail, supermarket, and showroom environments.

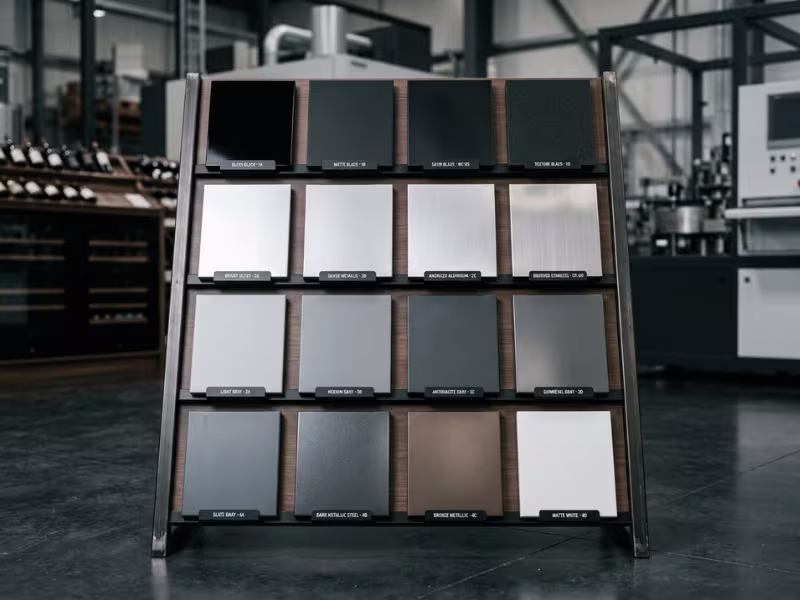

Custom Colors
White, silver, grey, black, and custom-matched colors can be supplied according to your physical sample, RAL reference, or target cabinet design. We provide a sample for approval before mass production to help maintain batch consistency.

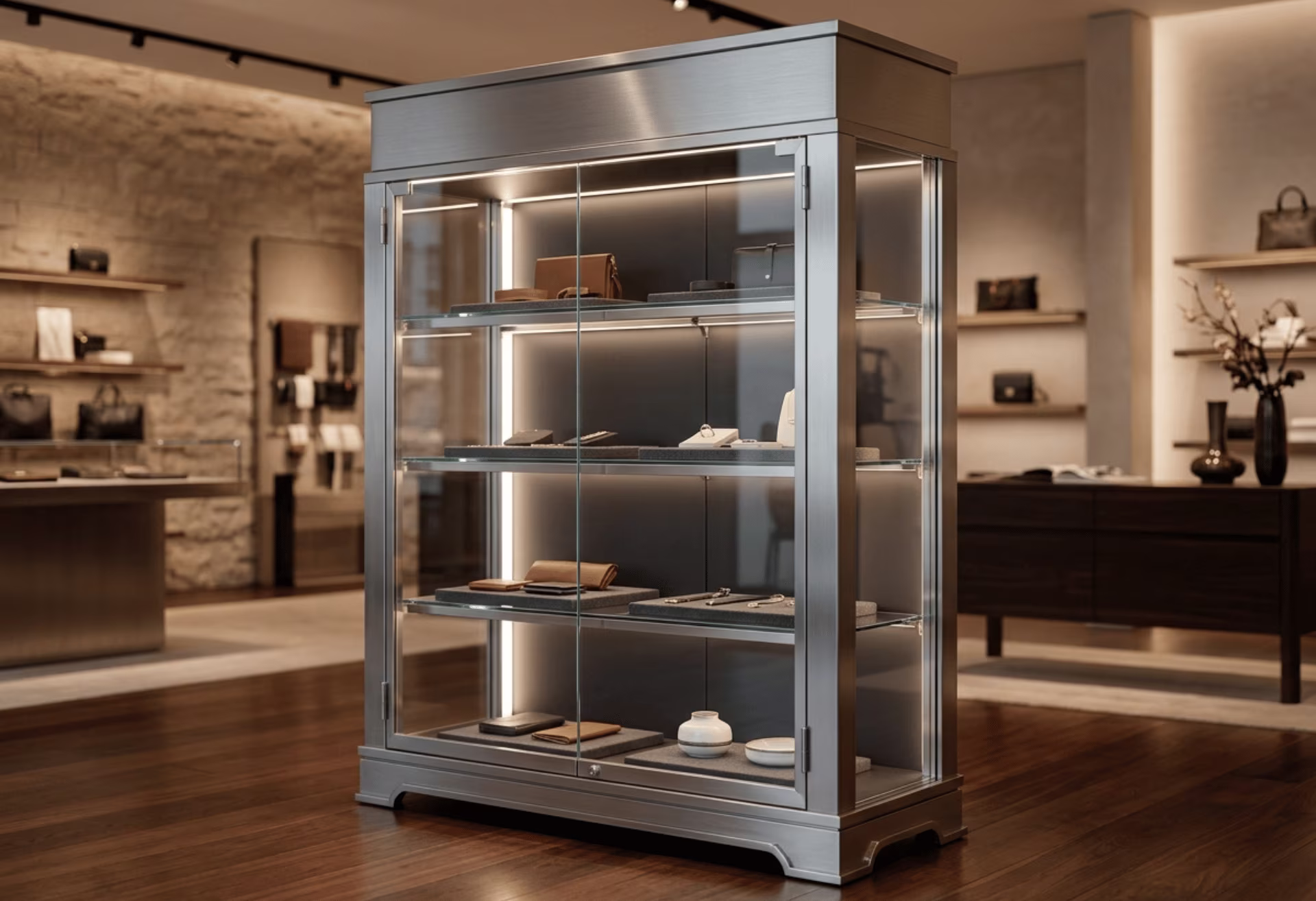

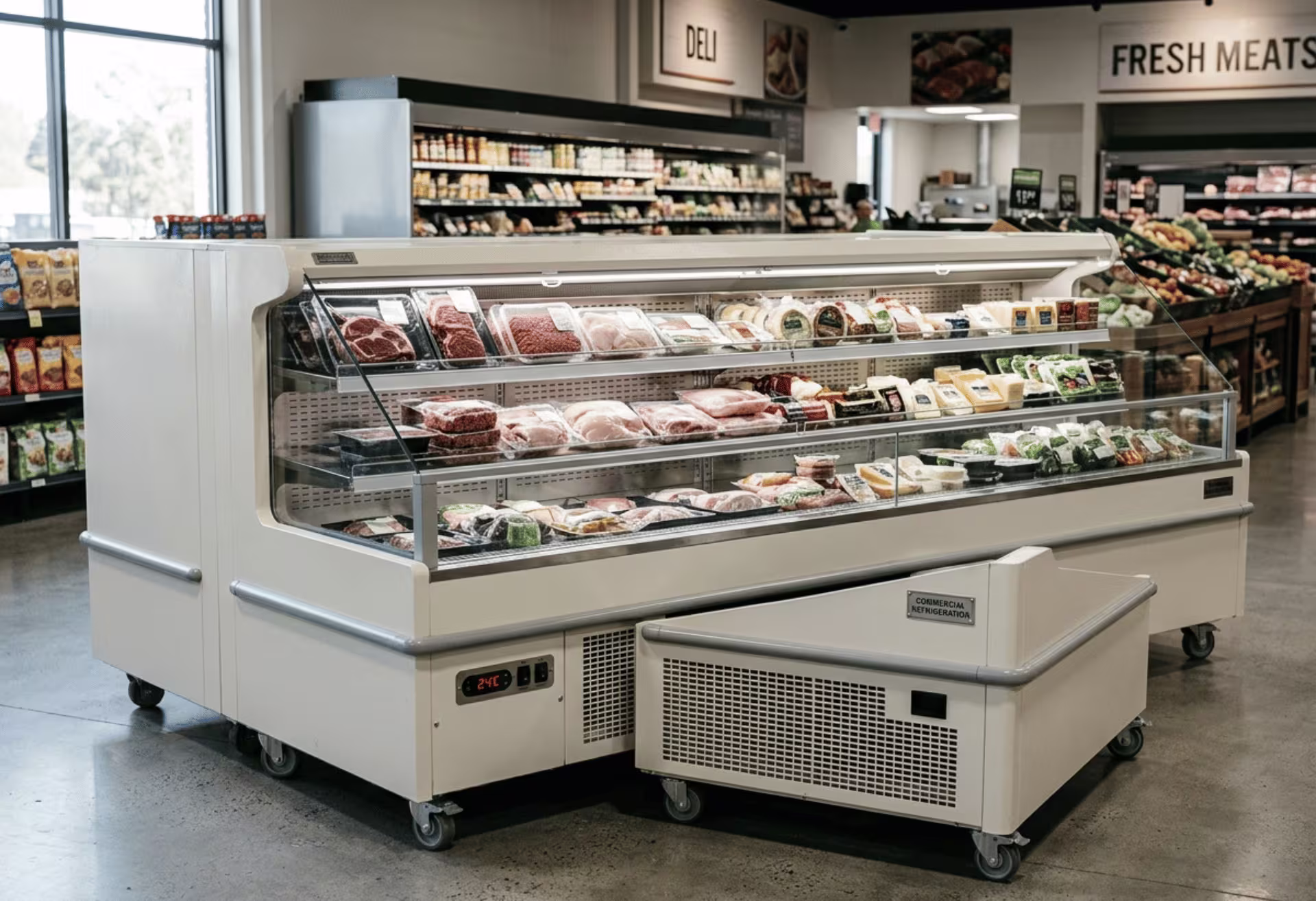

Typical Display Cabinet Applications
Processing Capabilities for Display Cabinet Production
All processing is carried out in-house at our Jiangyin facility, so your material can arrive in the format your cabinet line actually needs — not just as a master coil.
Slitting
Master coils are slit to custom widths for cabinet panel fabrication and OEM production lines, with clean edges and tight tolerance control.
Cut-to-Length
Material can be supplied as cut-to-length sheet for direct panel fabrication, stamping, or lamination — stacked, protected, and palletized for export.
Protective Film
Protective film can be applied to safeguard visible surfaces during transport, forming, and assembly. Specify film type at time of order.
Sample Matching
We match color and surface finish to your sample, target finish, or reference standard, and provide an approval sample before bulk production.
OEM Support
We support display cabinet OEM and shell manufacturers with custom colors, decorative film matching, coil and sheet supply, protective film, export packaging, and repeat-order production.
Get Display Cabinet Specifications for Your Project
Tell us your cabinet position, material preference, thickness, width, surface finish, and supply format. Our technical team will confirm feasibility and prepare a recommended material specification for your review.
Typical Specifications for Display Cabinet Steel
| Parameter | Typical Range |
|---|---|
| Base material | GI, EGI, cold-rolled steel |
| Product types | VCM laminated steel, PCM steel, hairline finish steel, prepainted steel |
| Thickness | 0.30 mm – 1.00 mm |
| Width | 600 mm – 1,250 mm (slit widths available) |
| Surface options | Brushed, hairline, high gloss, metallic, matte, anti-fingerprint, solid color |
| Supply form | Coil, slit coil, cut-to-length sheet |
| Color | White, silver, black, grey, custom colors |
| MOQ | Depends on specification and finish |
| OEM support | Yes |
| Protective film | Available on request |
- Specifications are indicative and will be confirmed during the technical review at the time of order.
Quality Control and Certifications
Everesteel operates under a documented quality management system covering incoming substrate inspection, coating and lamination line parameters, surface appearance control, and final product inspection before shipment.
Standard quality controls applied to display cabinet steel include:
- Incoming substrate inspection for thickness, width, surface condition, and base metal conformity
- Coating or film thickness measurement recorded per batch according to the specified product structure
- Surface appearance inspection for color consistency, gloss uniformity, brush direction, and visible defects
- Coating or film adhesion testing verified through standard cross-cut and T-bend checks
- Condensation and humidity resistance assessed based on refrigerated cabinet service conditions
- Cleaning and surface recovery evaluated for cabinets exposed to frequent wiping and cleaning agents
- Forming performance evaluation for bending and stamping suitability on selected specifications
- Protective film inspection for coverage consistency, surface protection, and peel performance
- Dimensional and flatness verification prior to packaging and shipment
FAQs
Q1. What steel is used for display cabinets?
Display cabinets commonly use VCM laminated steel, PCM steel, hairline finish steel, and prepainted coated steel. The right choice depends on whether the part is a visible outer shell, a door trim, a side panel, or an internal liner.
Q2. What is the best material for wine cooler shells?
For visible wine cooler shells, VCM laminated steel is often preferred. It delivers black, silver, brushed, and metallic finishes that give a premium showroom appearance without the cost of solid stainless steel.
Q3. What is the difference between VCM and PCM for display cabinets?
VCM uses a laminated decorative film, while PCM uses a baked paint coating. VCM suits premium visible shells and decorative finishes; PCM is more economical for solid-color bodies, side panels, and internal liners.
Q4. Can hairline finish steel replace real stainless steel on cabinet trim?
For appearance, yes. Hairline finish steel gives a refined brushed-metal look on trim and fascia at a lower cost than solid stainless steel. The right choice depends on your forming, cleaning, and durability requirements.
Q5. Will the coating resist condensation in refrigerated cabinets?
A correctly specified material will. Refrigerated cabinets face condensation and frequent cleaning, so we select the coating or film system accordingly and can assess condensation and cleaning performance before bulk production.
Q6. Can you match custom display cabinet colors and finishes?
Yes. We match custom colors and finishes to your physical sample, RAL reference, or target cabinet design, and provide an approval sample before mass production.
Q7. Can display cabinet steel be supplied in coil and sheet form?
Yes. We supply material as master coil, slit coil, or cut-to-length sheet according to your production requirements, with in-house slitting and cut-to-length processing.
Q8. Do you provide OEM support for display cabinet projects?
Yes. We support OEM production with custom finishes, decorative film matching, sample matching, slitting, cut-to-length processing, protective film, and export packaging.
Related Products for Display Cabinet Projects
Explore the individual materials behind our display cabinet supply. Each links to full specifications and surface options.
VCM Laminated Stee
PCM Steel
Hairline Finish Steel
PET Laminated Steel
Custom Color Coated Steel
Ready to Source Steel for Display Cabinets?
Send us your cabinet application, target finish, thickness, width, forming method, and estimated quantity. Our team will recommend the right material — VCM, PCM, hairline finish, or PET laminated steel — based on your surface, forming, condensation, and cost requirements, and respond within one business day.
- Cabinet position — outer shell, door trim, side panel, internal liner, or fascia
- Cabinet type — wine cooler, beverage display cabinet, showcase case, or supermarket display case
- Material preference — VCM, PCM, hairline finish, PET laminated, or not sure yet
- Surface requirement — brushed, hairline, metallic, gloss, matte, or anti-fingerprint
- Color reference — RAL code, sample, or target cabinet design
- Thickness and width — in millimeters
- Supply form — coil, slit coil, or cut-to-length sheet
- Quantity — in metric tons or sheets, and whether one-time or recurring
- Destination country — for freight and lead time estimation
- Sample or color matching requirement — yes or no
