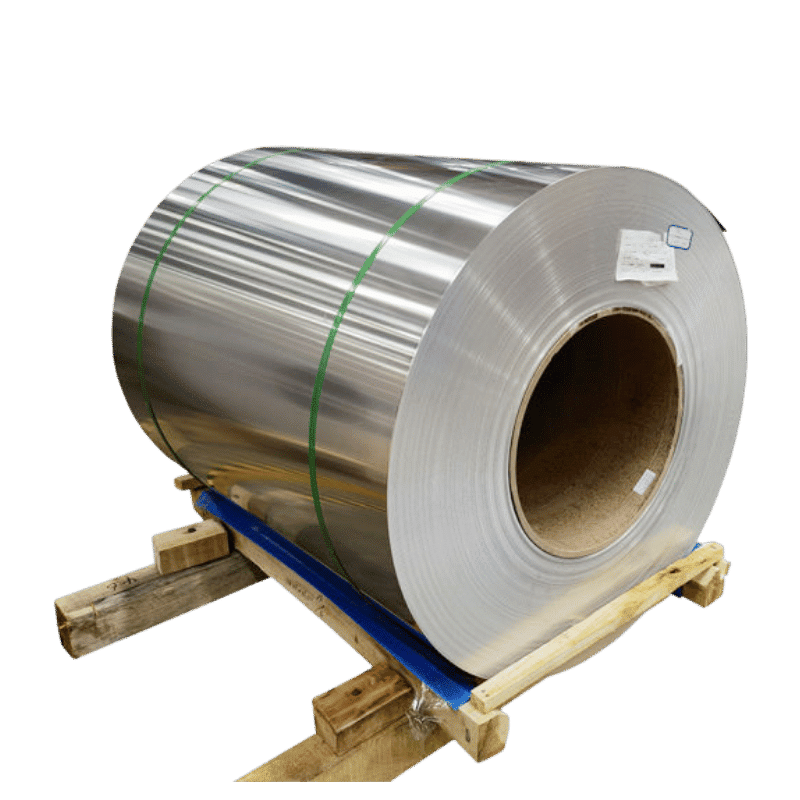

Embossed Aluminum Sheet
Factory-direct embossed aluminum sheet and coil with custom patterns and processing support
Everesteel supplies embossed aluminum sheet and coil with raised surface patterns that improve rigidity, help hide handling marks, and add slip resistance. Available in common alloys and produced in-house in Jiangyin, China, it is widely used for insulation jacketing, trailer panels, appliance surfaces, and flooring applications.
- Raised emboss patterns that stiffen thin gauges and reduce visible scratches and fingerprints
- Slip-resistant texture for flooring, steps, and walkways
- 1100, 3003, and 5052 aluminum alloys for indoor and outdoor applications
- Stucco, orange peel, diamond, and custom embossed patterns
- Cut-to-length sheet, slit coil, and custom sizing support
- MOQ from 3 tons for sampling and production orders
Own Factory, Own Embossing Lines, Full Specification Control
Everesteel rolls and embosses aluminum sheet at our factory in Jiangyin, Jiangsu — one of China’s primary metal processing hubs. With 26,000+ tons of annual capacity, we support insulation contractors, trailer builders, appliance makers, and procurement teams across 65+ countries, from initial sample approval through to full-volume orders.
We are not a trading company. Every sheet that leaves our facility is embossed on our own lines, giving you direct control over alloy, temper, pattern depth, and lead times. When your parts depend on consistent texture and repeatable rigidity, that in-house control keeps every batch matched to the one before it.
26,000+
tons annual production capacity
6,800+
global buyers served
65+
countries supplied worldwide
98.7%
on-time delivery rate
What is Embossed Aluminum Sheet?
An embossed aluminum sheet is an aluminum sheet passed through patterned rollers to create a raised, repeating surface texture. Compared with a plain sheet of the same gauge, an embossed surface can increase apparent rigidity, reduce the visibility of handling marks, and provide added surface grip when suitable tread patterns are used.
The embossed pattern is not only decorative. In many jacketing, panel, and transport applications, it helps the sheet retain shape more effectively than a smooth surface while also scattering light to make fingerprints, scuffs, and minor scratches less visible. Depending on the application, embossed aluminum may be supplied in mill finish for functional use or with a color coating for decorative and architectural panels.
Common alloy choices include 1100 for insulation jacketing and light interior use, 3003 for general fabrication and panel work, and 5052 for more demanding outdoor, transport, and marine-related applications. Embossed aluminum is widely used for insulation cladding, trailer and transport panels, appliance backs, anti-slip surfaces, and decorative feature panels.
Embossed Aluminum vs Prepainted Aluminum / Plain Aluminum / Embossed Steel
All four give you a metal sheet for panels, cladding, and fabrication. The difference is the surface, the base metal, and what the sheet is built to do.
| Factor | Embossed Aluminum | Prepainted Aluminum | Plain Aluminum Sheet | Embossed Steel |
|---|---|---|---|---|
| Surface | Raised texture pattern | Smooth color coating | Smooth mill finish | Raised texture pattern |
| Base metal | Aluminum alloy | Aluminum alloy | Aluminum alloy | Carbon or galvanized steel |
| Rigidity | Higher — pattern stiffens gauge | Standard | Standard | Higher — heavier base |
| Corrosion resistance | Excellent — natural oxide layer | Excellent — coated | Excellent | Depends on coating |
| Weight | Light | Light | Light | Heavy |
| Best use | Jacketing, trailers, anti-slip | Roofing, facades, signage | Blanks, trim, general work | Anti-slip, structural panels |
| Hides marks | Yes | Partly | No | Yes |
- Choose embossed aluminum when texture, rigidity, slip resistance, or mark-hiding leads the specification. Step to prepainted aluminum when a smooth color surface matters most, to plain sheet when you need an unpatterned blank, or to embossed steel when steel strength outweighs the weight penalty.
Why Buyers Source Embossed Aluminum from Everesteel
Texture That Adds Rigidity Without Adding Weight
Pressing a stucco or diamond pattern into thin aluminum stiffens the sheet, so you can specify a lighter gauge and still get the shape stability your part needs. For insulation jacketing and trailer panels priced by weight, that means real material savings. Because we control the embossing rollers and pass depth in-house, we help you match pattern and gauge to the rigidity your application actually requires.
A Surface Built to Hide Marks and Resist Slipping
The raised profile scatters light, so fingerprints, scuffs, and handling marks that ruin a flat sheet simply disappear on an embossed one. On floors, steps, and walkways, that same texture delivers slip resistance underfoot. We check pattern uniformity across every coil, so the finish stays consistent from the first sheet to the last.
Rust-Proof Aluminum for Indoor and Outdoor Work
Aluminum forms a natural oxide layer, so embossed aluminum stays rust-free in humid insulation runs, on outdoor trailers, and in coastal fittings where steel struggles. The 3003 and 5052 alloys we stock combine that corrosion resistance with the strength trailers and flooring demand. We help you pick the alloy that suits your environment before you commit to volume.
Custom Patterns and Sizes, Produced In-House
Standard stucco, orange peel, and diamond patterns are held ready, and we tool custom emboss profiles for specific projects directly on our lines. Color-coated embossed options are produced on the same equipment. You receive a physical production sample for approval before mass production, with one supplier accountable for pattern, gauge, and finish.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Embossed aluminum sheet, coil & strip |
| Substrate alloy | 1100, 3003, 3105, 5052 |
| Temper | O (soft), H14, H18, H24 |
| Thickness | 0.20 mm – 3.0 mm (customizable) |
| Width | 600 mm – 1,600 mm (slit widths available) |
| Emboss patterns | Stucco, orange peel, diamond (five-bar), custom profiles |
| Surface options | Mill finish embossed, color-coated embossed |
| Pattern depth | 0.05 mm – 0.30 mm (pattern-dependent) |
| Color | Mill finish; RAL / Pantone coating available |
| Coil inner diameter | 405 mm / 505 mm |
| Coil weight | 1 – 3 tons per coil |
| Standards | ASTM B209, EN 485, or agreed project standard |
| Typical applications | Insulation jacketing, trailers, appliance panels, anti-slip flooring, cladding |
Specifications are indicative. Custom alloys, tempers, gauges, and patterns are available on request. Minimum order quantity: 3 tons.
Surface and Pattern Options
Embossed aluminum is available across a range of patterns, each suited to a different balance of texture, rigidity, and appearance.

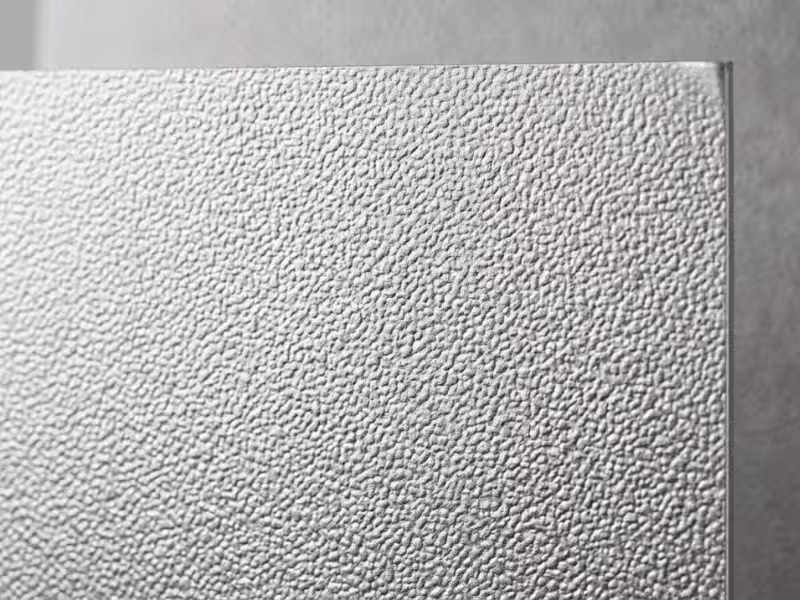

Stucco
Fine, evenly distributed raised texture — the most common pattern for insulation jacketing and general cladding. It adds rigidity, hides marks well, and gives a clean matte industrial look.

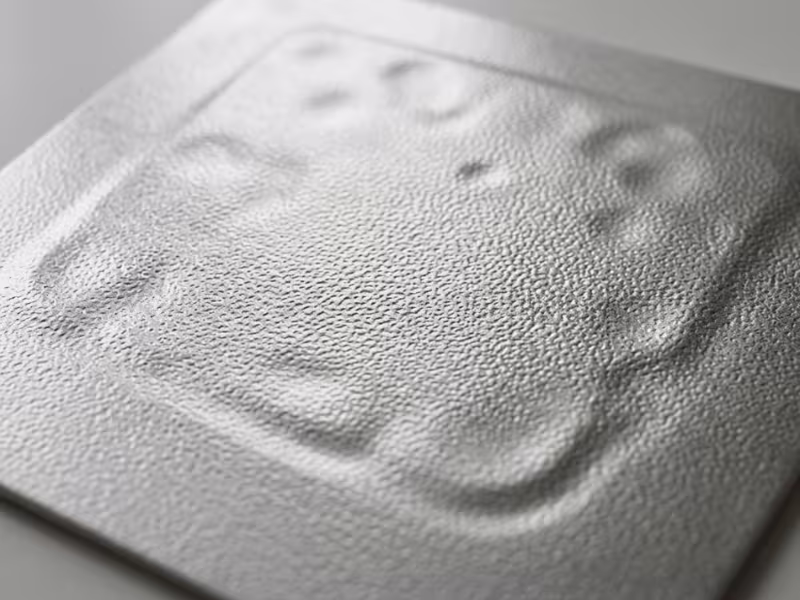

Orange Peel
A dimpled, low-relief pattern resembling citrus skin. Popular for appliance backs, interior panels, and decorative surfaces where a subtle, uniform texture is preferred.

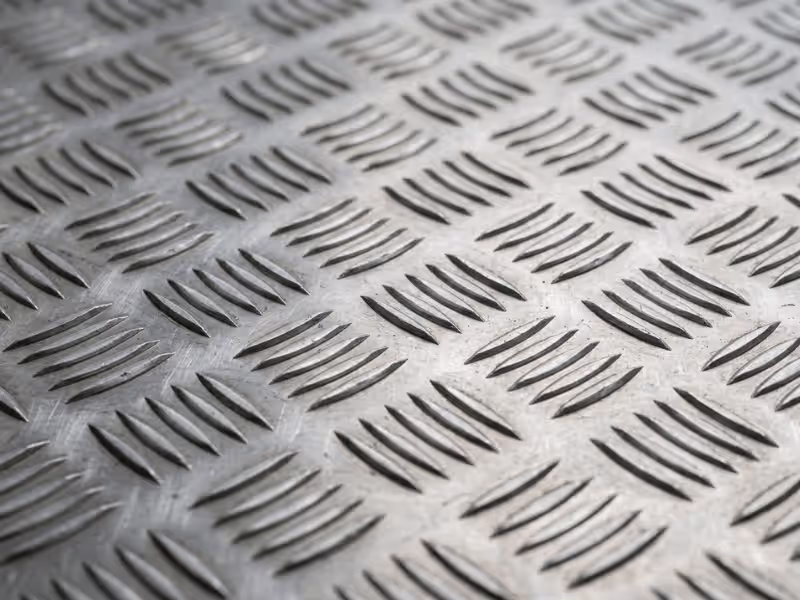

Diamond (Five-Bar)

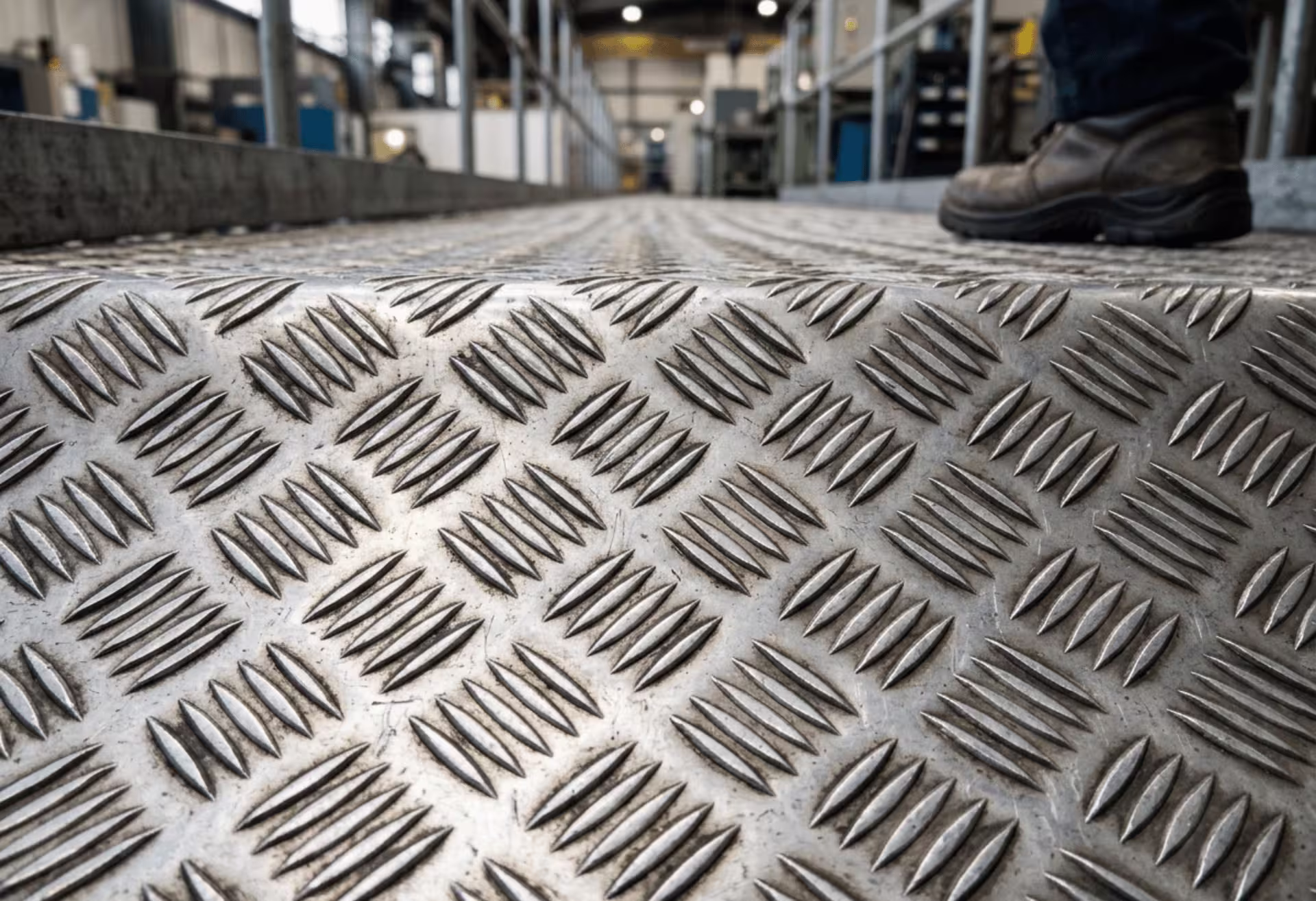

A pronounced raised-bar tread pattern engineered for grip. The standard choice for anti-slip flooring, steps, ramps, and trailer decks that see foot or wheel traffic.

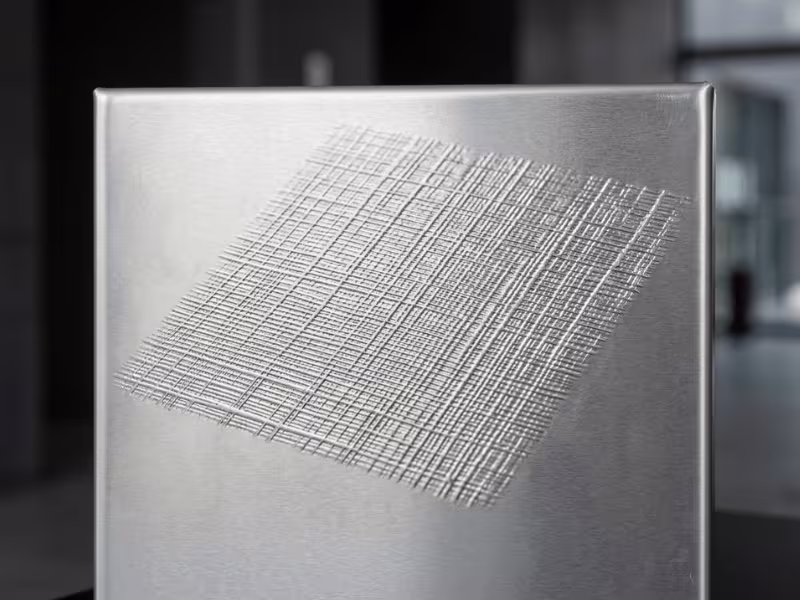

Linen / Fine Texture
A tighter, more refined embossed surface used where a softer decorative texture is preferred over a deep industrial pattern. Suitable for interior panels, appliance surfaces, and light architectural trim.

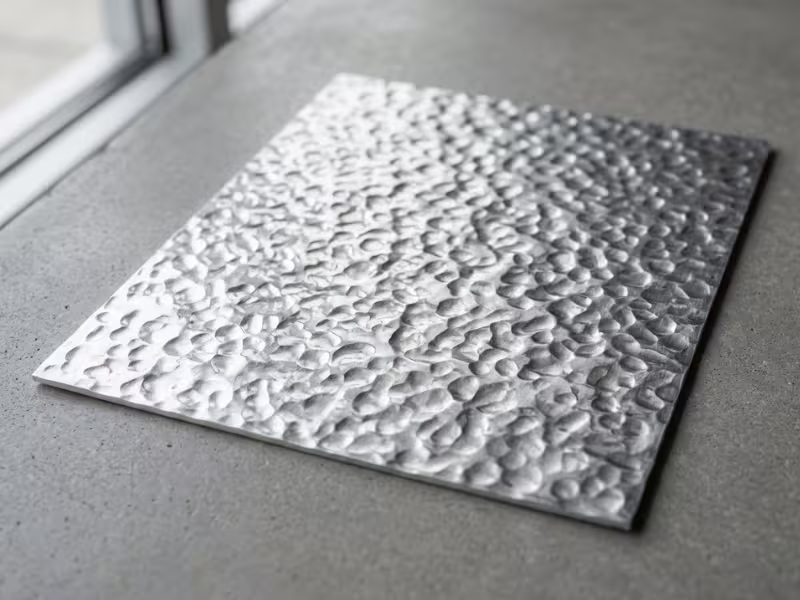

Hammered / Pebble Texture
A more irregular decorative texture that helps scatter light and disguise handling marks. Often used for feature panels, trims, and decorative cladding where appearance matters as much as function.

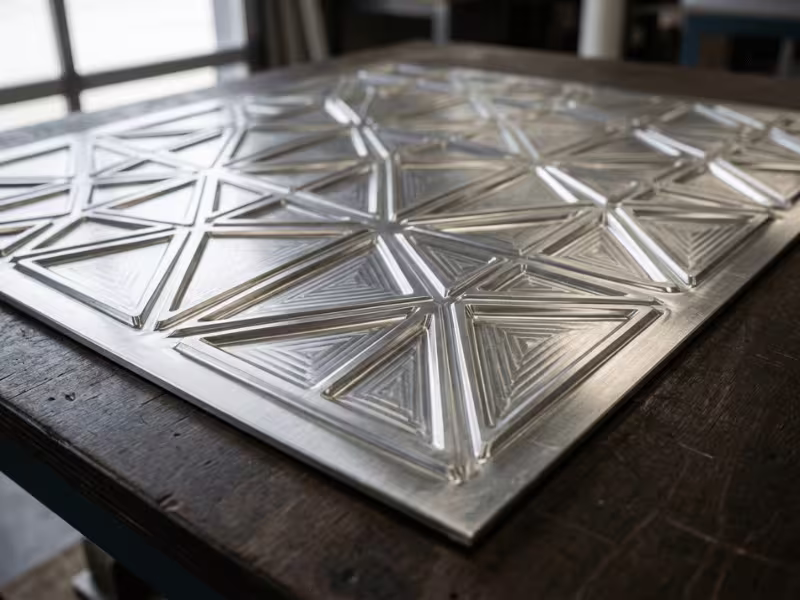

Custom Patterns
Tooled emboss profiles matched to a project's design or performance brief. Suitable for branded decorative panels, feature cladding, and specialized structural surfaces.
Processing Capabilities
Downstream processing is available in-house, so your embossed aluminum can arrive in the format your production line actually needs — not just as a master coil.
Embossing
Stucco, orange peel, diamond, and custom patterns pressed in-line with controlled depth and consistent registration across the full coil width.

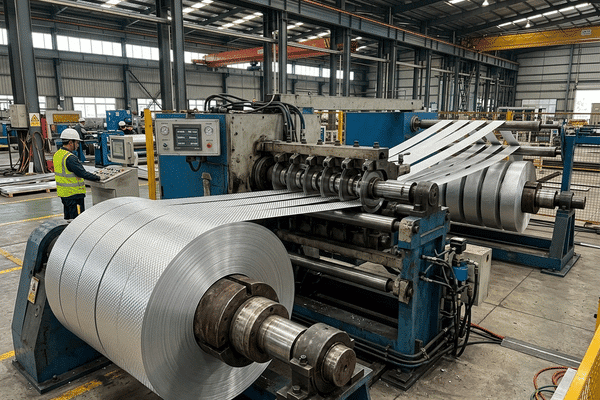

Slitting
Coils are slit to custom widths from 20 mm and above, with tight tolerances and clean edges suited to jacketing lines, panel forming, and profile production.

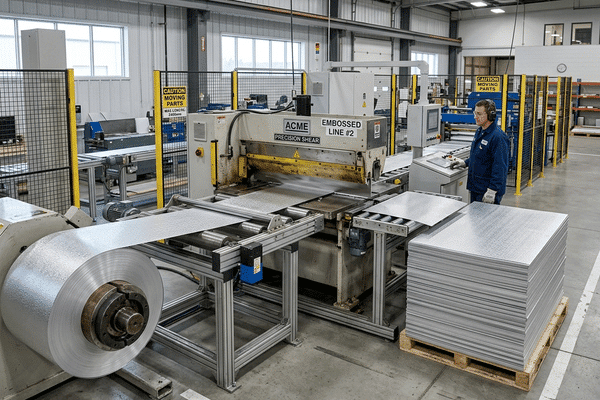

Cut-to-Length
Sheet blanks cut to your dimensions with flatness and squareness tolerances suitable for direct fabrication, panel assembly, or press feeding.

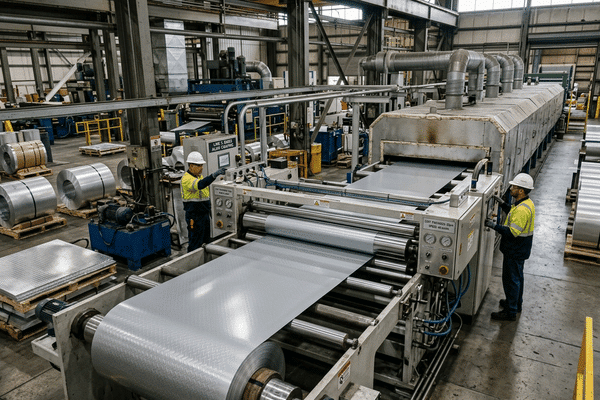

Color Coating
Embossed sheet coated with PE or PVDF for decorative panels that combine texture with color hold, produced on our own coating lines.

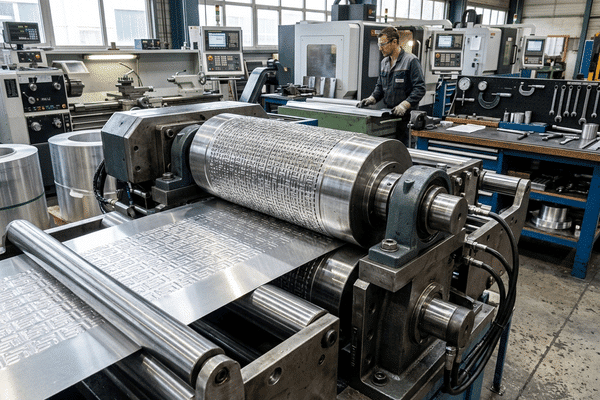

Custom Pattern Tooling
Submit a pattern sample or design brief, and our technical team tools a matched emboss profile — with a physical production sample provided for approval before the full run begins.
Sourcing textured sheet or custom-cut blanks for a jacketing or trailer project?
Send your alloy, thickness, width, and pattern, and our team will confirm lead time and pricing within one business day.
Recommended Specifications by Application
| Application | Recommended Thickness | Alloy | Pattern | Surface |
|---|---|---|---|---|

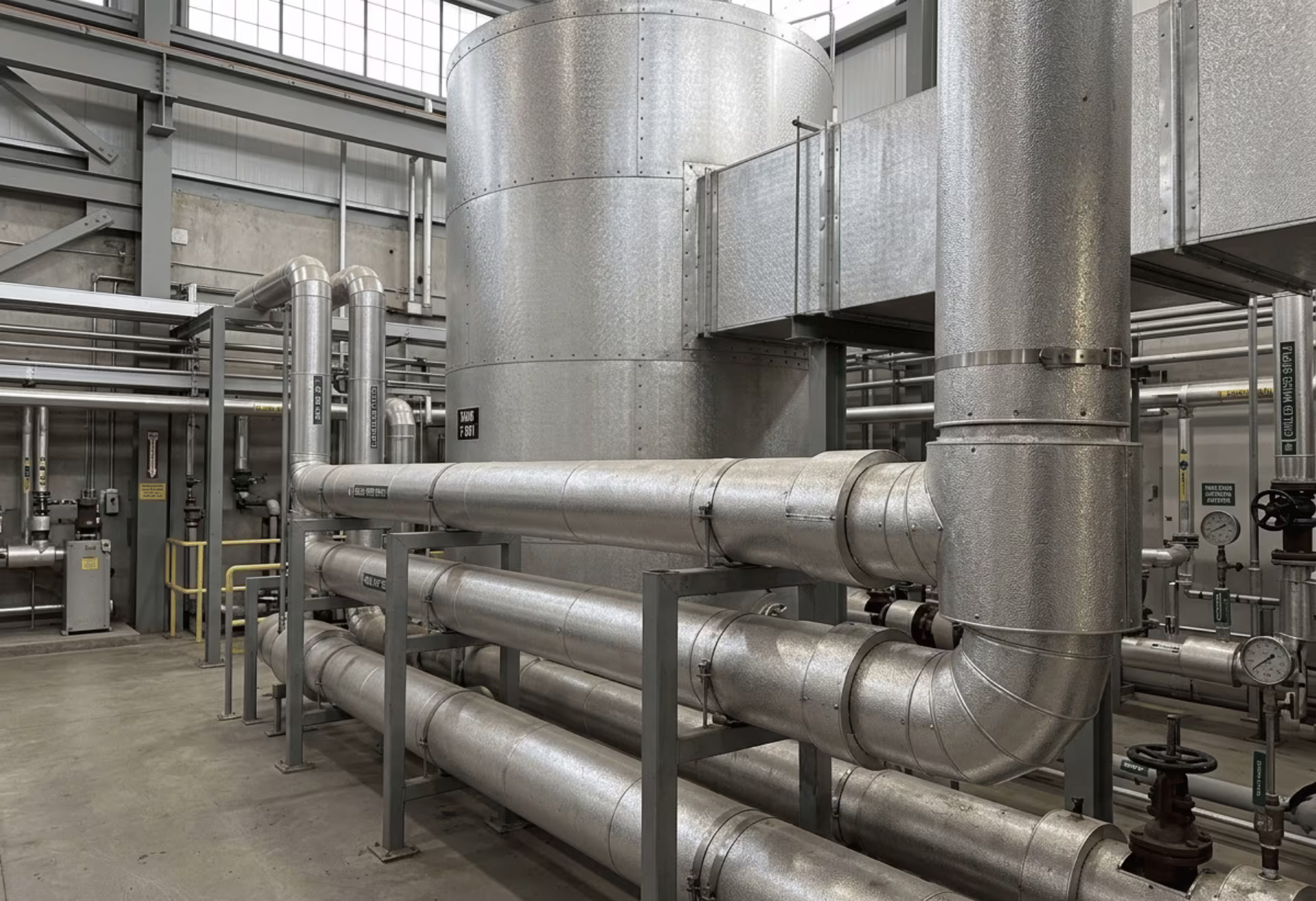

| Insulation jacketing | 0.30 – 0.80 mm | 1100 / 3003 | Stucco | Mill finish |

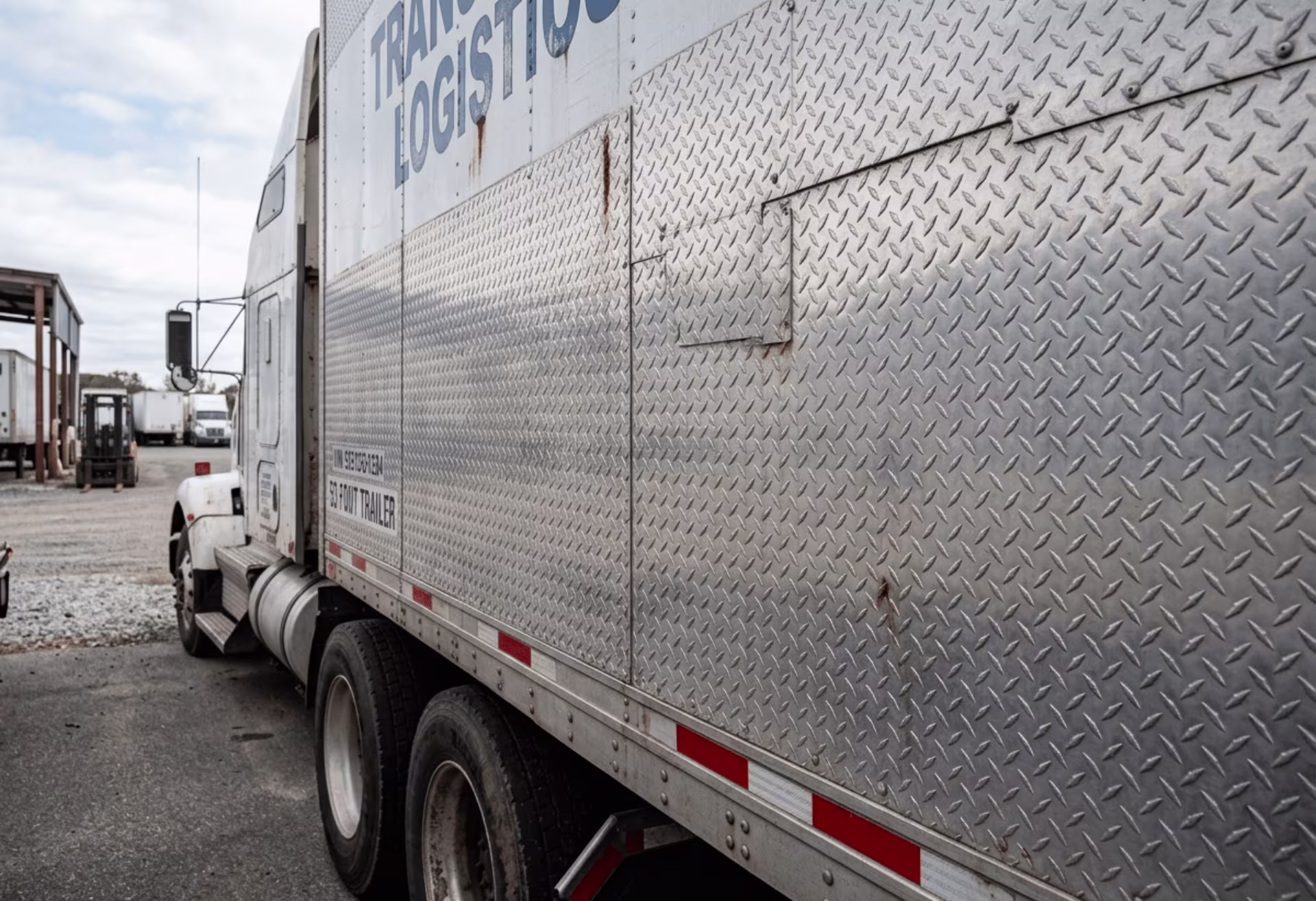

| Trailer & truck panels | 0.80 – 2.0 mm | 3003 / 5052 | Stucco / diamond | Mill finish |
| Anti-slip flooring | 1.0 – 3.0 mm | 3003 / 5052 | Diamond (five-bar) | Mill finish |

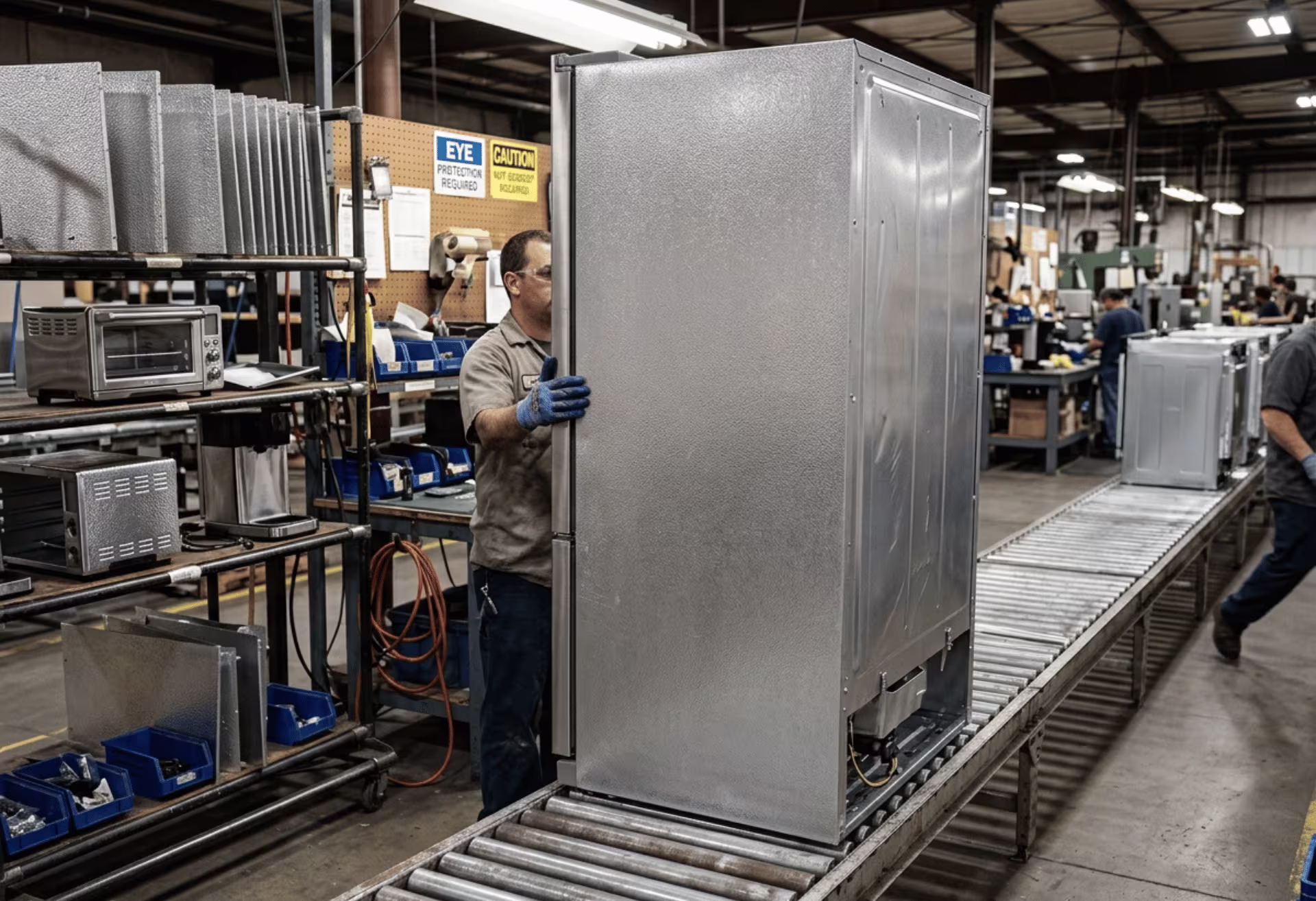

| Appliance panels | 0.40 – 0.80 mm | 3003 / 1100 | Orange peel | Mill / coated |

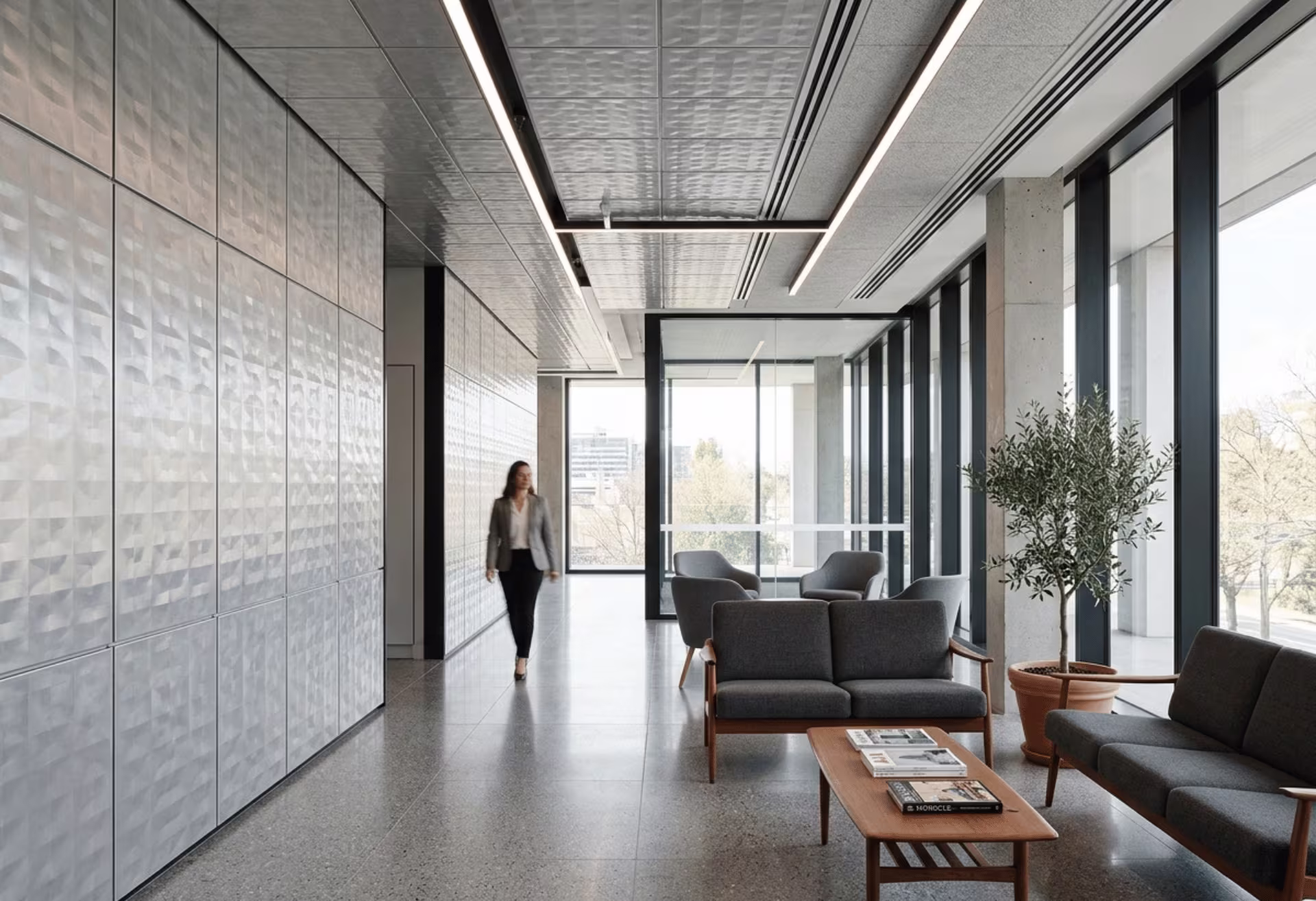

| Decorative cladding | 0.40 – 1.0 mm | 3003 / 1100 | Stucco / custom | Coated |
| Marine & outdoor fittings | 1.0 – 3.0 mm | 5052 | Diamond / stucco | Mill finish |
- These are indicative starting points. Final specifications should be confirmed based on your application environment, forming process, and performance requirements.
Typical Applications
Quality Control and Certifications
Everesteel operates under a quality management system covering raw material intake, coating line parameters, print registration, and finished product inspection.
Standard quality controls applied to Embossed Aluminum Sheet:
Everesteel maintains a documented quality management system across every stage of production — from incoming substrate inspection through to final sheet labeling and packaging.
In-process controls include:
- Incoming aluminum substrate inspection (alloy, temper, thickness, surface quality)
- Pattern depth and uniformity checks across coil width
- Dimensional and flatness measurement on cut sheet
- Coating adhesion and thickness testing on color-coated embossed sheet
- Hardness and formability testing for selected grades
- Final surface and packaging inspection before loading
Test reports and mill certificates are issued with each shipment. Third-party inspection — including SGS, BV, and CCIC — can be arranged before loading on request.
FAQs
Q1. What is the difference between embossed aluminum and plain aluminum sheet?
Plain aluminum has a smooth mill finish. Embossed aluminum is passed through patterned rollers that press a raised texture into the surface. That texture adds rigidity, hides scratches and fingerprints, and provides slip resistance — advantages a flat sheet doesn’t offer. Choose embossed when surface performance and mark-hiding matter; choose plain when you need an unpatterned blank.
Q2. Which emboss pattern should I choose?
It depends on the job. Stucco is the all-around choice for insulation jacketing and cladding. Orange peel suits appliance and interior panels where a subtle uniform texture is preferred. Diamond (five-bar) is engineered for anti-slip flooring, steps, and trailer decks. We also tool custom patterns for specific design or performance needs.
Q3. Which alloy is best for my application?
The 1100 series is soft, pure aluminum for insulation jacketing and interior work. The 3003 series offers higher strength and formability for panels and general fabrication. The 5052 series delivers extreme corrosion resistance and hardness for trailers, marine fittings, and flooring. We’ll recommend the right alloy based on your project and environment.
Q4. Can embossed aluminum be used outdoors?
Yes. Aluminum’s natural oxide layer makes it rust-proof, so embossed sheet performs well outdoors on trailers, in marine settings, and in humid insulation runs. For added color durability outdoors, we can supply PVDF-coated embossed sheet.
Q5. Does the emboss pattern really add strength?
Yes. Pressing a pattern into thin aluminum increases surface rigidity, so a lighter gauge holds its shape better than a smooth sheet of the same thickness. This lets you specify a thinner, lighter sheet in many jacketing and panel applications without losing stiffness.
Q6. What is your minimum order quantity for embossed aluminum?
Our standard minimum order quantity is 3–5 tons per specification. For standard alloys and common patterns like stucco, a lower MOQ may be possible when we hold stock. For custom patterns or non-standard alloys, we recommend 5–10 tons to cover tooling and setup costs.
Q7. Can you supply embossed aluminum with a color coating?
Yes. We coat embossed sheet with PE or PVDF systems on our own lines, combining texture with durable color. Submit a RAL code, Pantone reference, or physical sample and we’ll produce a production sample for approval before mass production.
Q8. Can embossed aluminum be supplied as cut sheet rather than coil?
Yes. We operate embossing, slitting, and cut-to-length lines on-site and supply embossed aluminum as master coil, slit coil, or cut-to-length sheet to your specified dimensions. Sheets are interleaved with protective paper where required and palletized for safe export transit.
Related Products
Prepainted Aluminum Coil & Sheet
Prepainted Steel

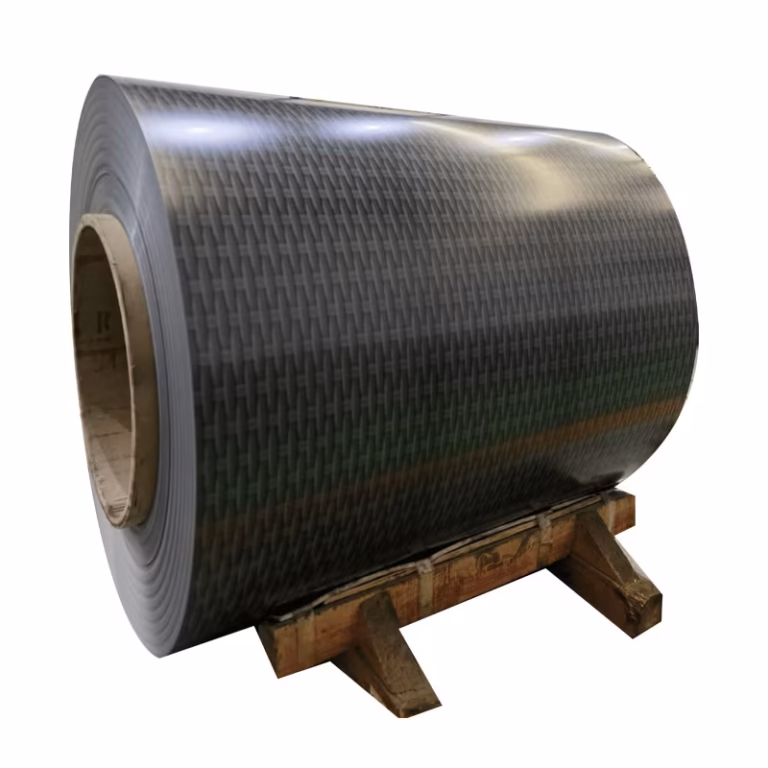

Laminated Steel

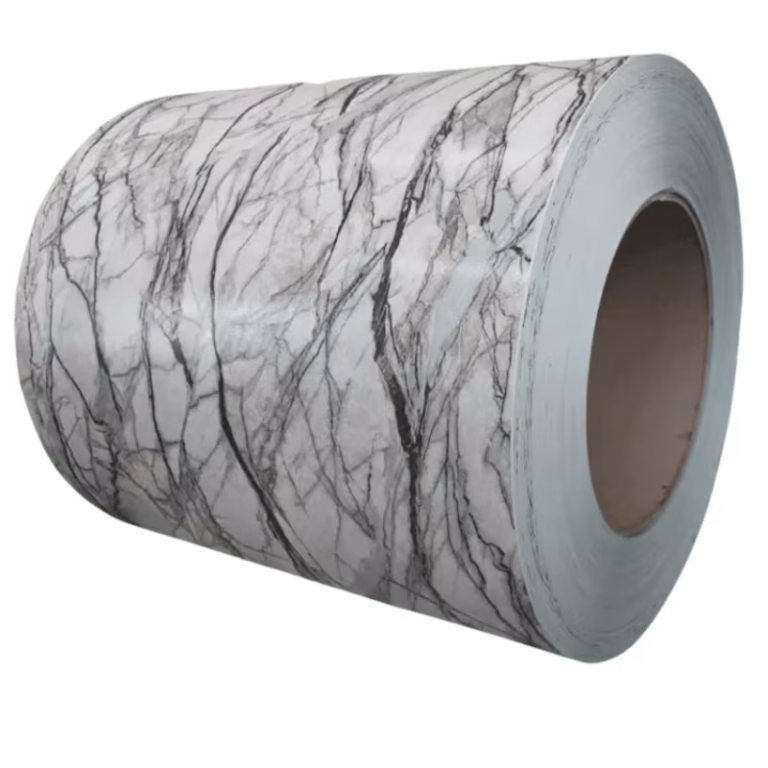

Patterned & Decorative Steel
Whiteboard & Chalkboard Steel
Ready to Source Embossed Aluminum? Start with the Right Information.
Send us the details below and our team will respond with pricing, lead time, and availability within one business day.
- Application — what the material will be used for (e.g., insulation jacketing, trailer panel, anti-slip floor)
- Alloy — if known (e.g., 1100, 3003, 5052)
- Thickness — in millimeters (e.g., 0.80 mm)
- Width — in millimeters (e.g., 1,000 mm)
- Pattern — stucco, orange peel, diamond, or custom
- Surface — mill finish or color-coated (with RAL / Pantone reference)
- Quantity — in metric tons, and whether one-time or recurring
- Destination country — for freight and lead time estimation
